Kimball Office Footprint Assembly Instructions

Footprint ®
Pedestal - Mobile and
Cushion Top

Tools Required

Drill
I
1 ⁄ " and #2 Phillips Tip Bits
I
4
Round Metal File
I

Package Contents

1 Pedestal
I
4 Casters
I
4 Washers
I

General Information

These instructions provide the basic information to install
I
the casters onto the flat profile mobile pedestal and mobile
cushion top pedestal.

Installing Casters

1. Set pedestal on its side. (Figure A).
2. Insert a caster into each threaded mount on the bottom
of the pedestal. (Figure A).
3. Place washer and nut onto each caster stem and tighten.
(Figure B). (Standard Mobile Pedestal shown).
4. Stand pedestal upright.
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 1567915 Revision C-09
Flat Head Screwdriver
I
Center Punch
I
4 Nuts
I
6 Phillips Panhead
I
#10 x 1 ⁄ " AB Screws
2

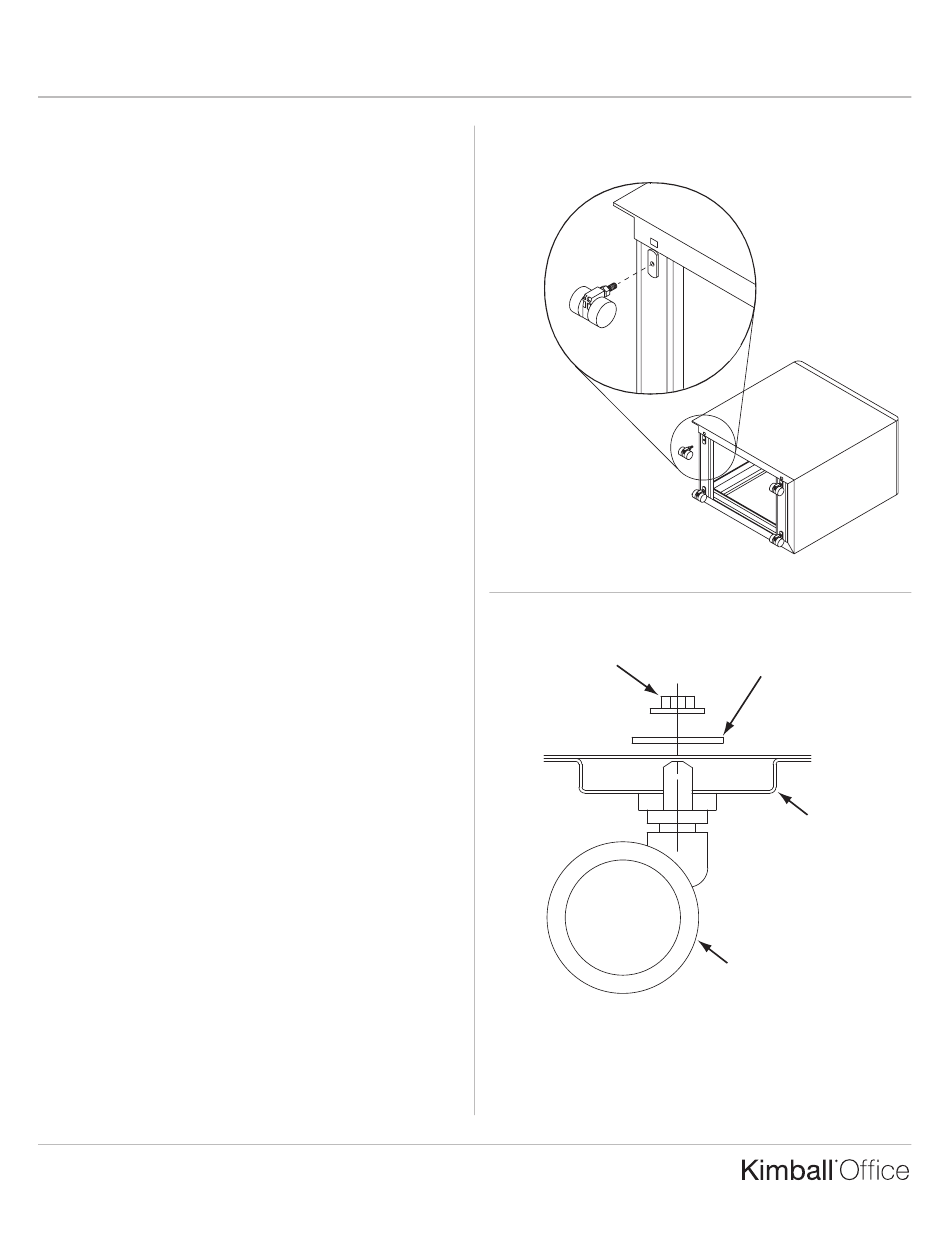

Figure A
Figure B
Nut
Assembly Instructions
Page 1 of 2
Washer
Important: must use washer
for proper functionality.
Pedestal
Frame
Caster
