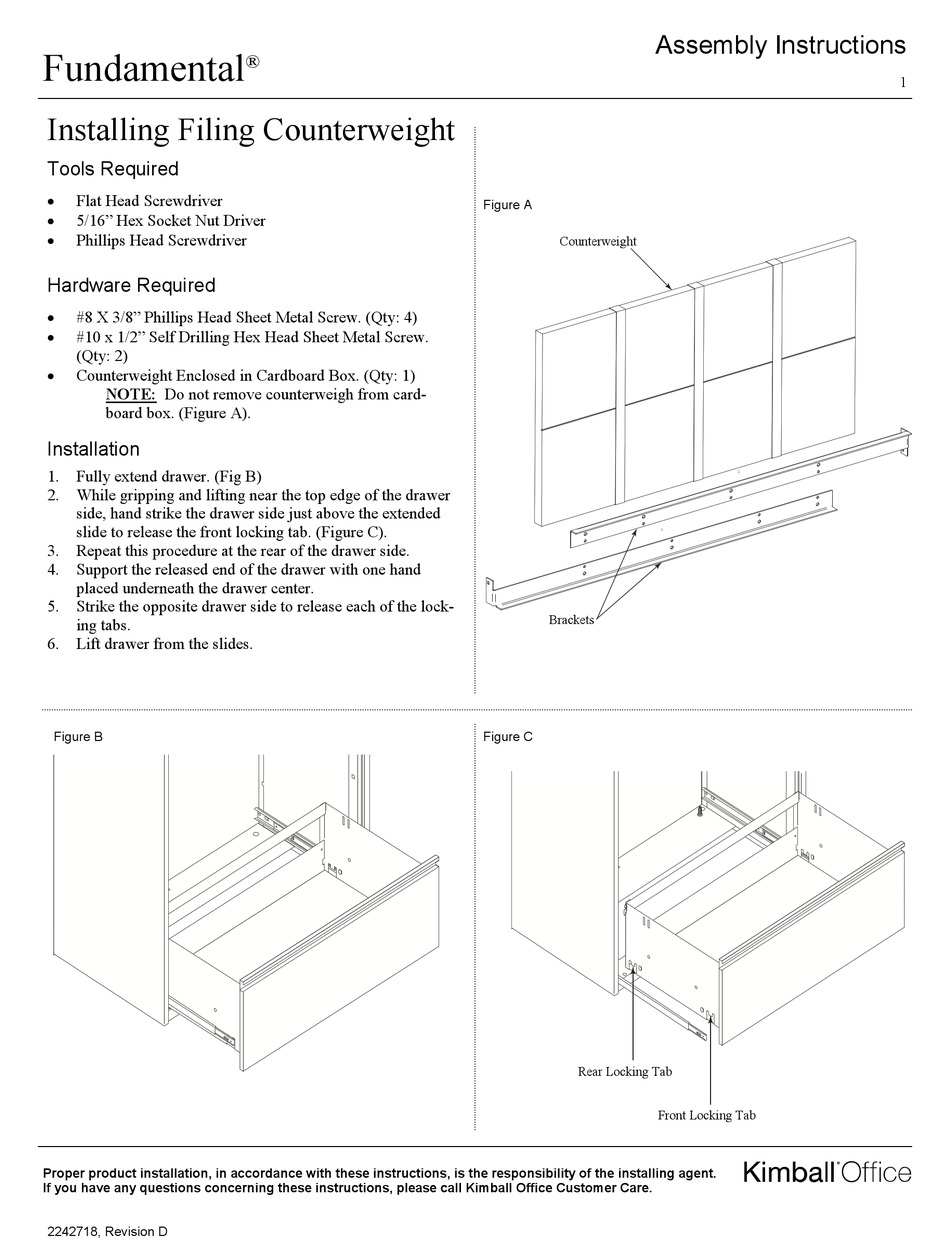

Fundamental

Installing Filing Counterweight

Tools Required

Flat Head Screwdriver
5/16" Hex Socket Nut Driver
Phillips Head Screwdriver

Hardware Required

#8 X 3/8" Phillips Head Sheet Metal Screw. (Qty: 4)
#10 x 1/2" Self Drilling Hex Head Sheet Metal Screw.
(Qty: 2)
Counterweight Enclosed in Cardboard Box. (Qty: 1)
NOTE: Do not remove counterweigh from card-
board box. (Figure A).

Installation

1.
Fully extend drawer. (Fig B)
2.
While gripping and lifting near the top edge of the drawer
side, hand strike the drawer side just above the extended
slide to release the front locking tab. (Figure C).
3.
Repeat this procedure at the rear of the drawer side.
4.
Support the released end of the drawer with one hand
placed underneath the drawer center.
5.
Strike the opposite drawer side to release each of the lock-
ing tabs.
6.
Lift drawer from the slides.
Figure B
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
2242718, Revision D
®
Assembly Instructions
Figure A
Counterweight
Brackets
Figure C
Rear Locking Tab
Front Locking Tab
1
