Kimball Office Footprint Assembly Instructions

Footprint ®

Curved Profile Overhead

on Mobile Tables

Tools Required

None

Package Contents

1 Overhead

Installation

Note: Overheads are available for use with Crescent and
Hexagon Tables only. Overheads MUST be mounted on 59"
long Support Tubes. Remove Upper Screen if previously
installed.

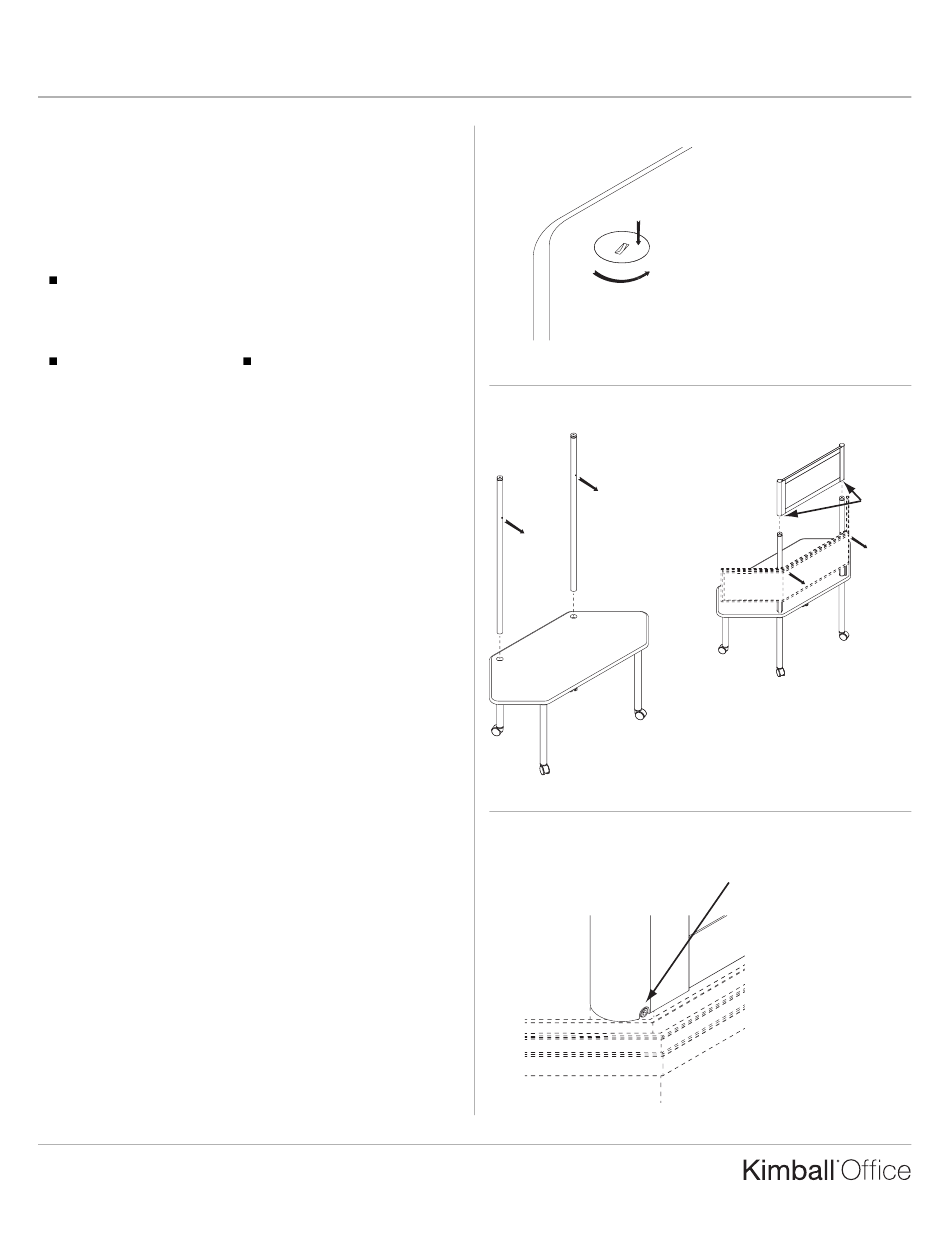

1. Remove grommet caps using a large, flat blade screwdriver
or large coin. Turn counterclockwise; then press down on
one side to raise opposite edge and remove. (Figure A).
2. Insert the 59" long support tubes into openings until firmly
seated. Make sure that top collar is on top end of tube and
that exposed cap screw heads are facing toward the front
edge of table if a lower screen will be used. (Figure B).
Note: If a Lower Screen is to be used, refer to Table Screens
Assembly Instruction sheet and install now.
3. Turn support tubes so that cap screw heads are facing the
back edge of the table.
4. Position overhead mounting panel above support tubes
and lower evenly until slots engage on screw heads in tubes.
(Figure C). A magnified view of the slot/screw engagement
is shown in Figure D.
Note: If an Upper Screen is being used, refer to Table Screens
Assembly Instruction sheet.
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part No. 1741501 Revision B-05
2 FBOTS brackets
(packaged separately)
Systems Assembly Instructions
Figure A
Press down
Rotate
Figure B
Screw head
orientation
Figure D
Page 1 of 2
Figure C
Slots
Screw head
orientation
Slot over
screw head
