Kimball Office Dock Assembly Instructions Manual

Dock
™
Fixed Resin Modesty Panel to
Worksurface Assembly
Tools Required

Cordless driver with magnetic post

1/8" Drill Bit

4mm Allen Wrench drive

#3 Phillips head bit drive
Hardware Required (Included)
Modesty Sizes
L Bracket
Modesty Cover Plate
1/4-20 X 1/2" BHMS
#10 X 1" FBSCR
Installation
Note: Modesty Panel should be installed after bases.
1. Unpack modesty panel, L bracket, modesty cover plate,
and hardware. See Figure A for package contents.
2. Place modesty cover plate over outside pre-drilled holes of
modesty panel and L bracket over inside holes of the mod-
esty panel as shown in Figure B. Assemble with 1/4-20 X
1/2" BHMS using 4mm hex drive.
3. Place the worksurface up side down on a non-marring sur-
face.
4. Using a tape measure, position the modesty panel from the
approach side of the worksurface 1" in and predrill using
1/8" bit.
5. Assemble with #10 X 1" FBSCR wood screws using #3
Phillips bit drive. as shown in Figure C. Flip the worksur-
face back over onto the bases.
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part 2700494 Revision -

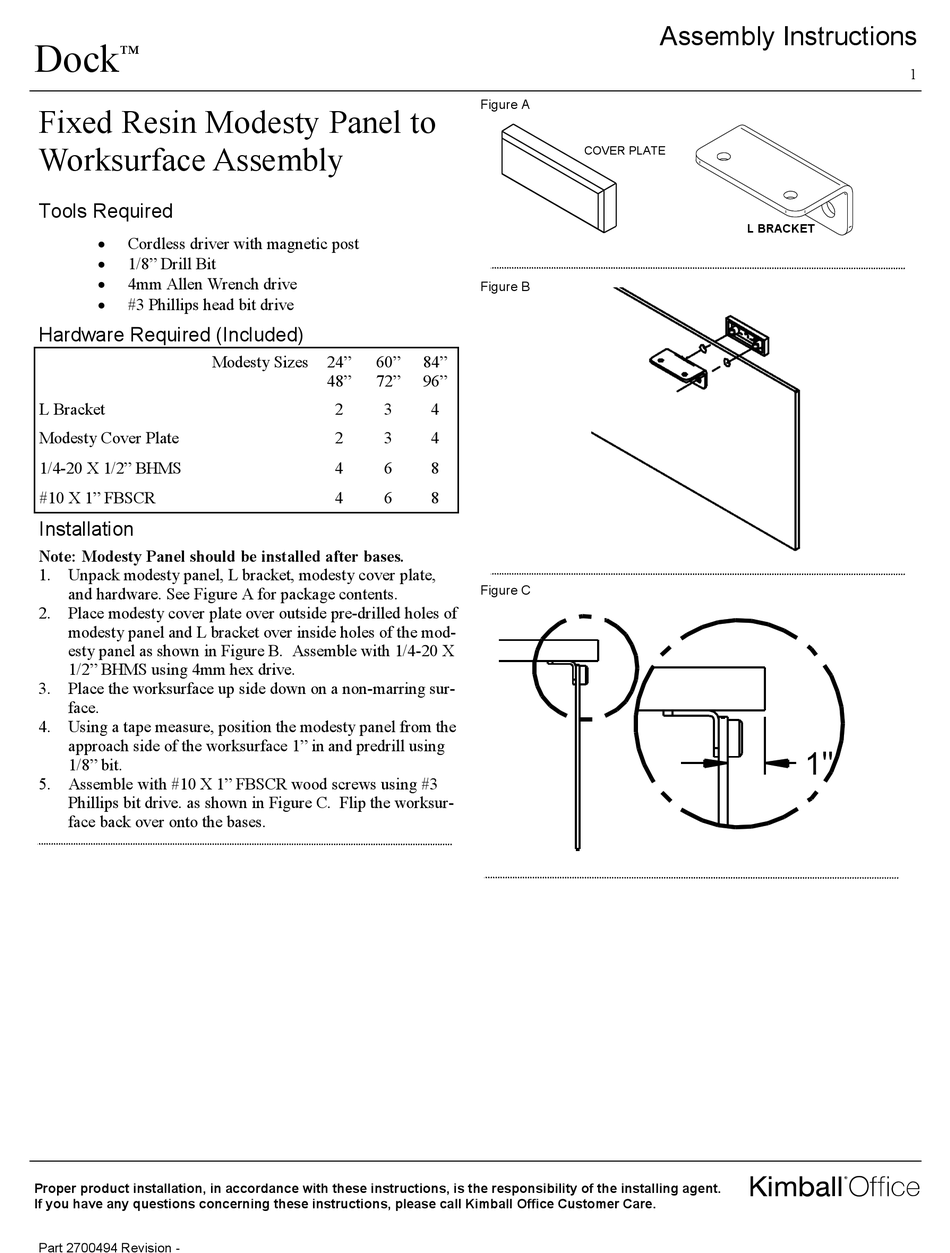

Figure A
Figure B
24" 60" 84"
48" 72" 96"
2 3 4
2 3 4
4 6 8
4 6 8
Figure C
Assembly Instructions
COVER PLATE
L BRACKET
1
1"
