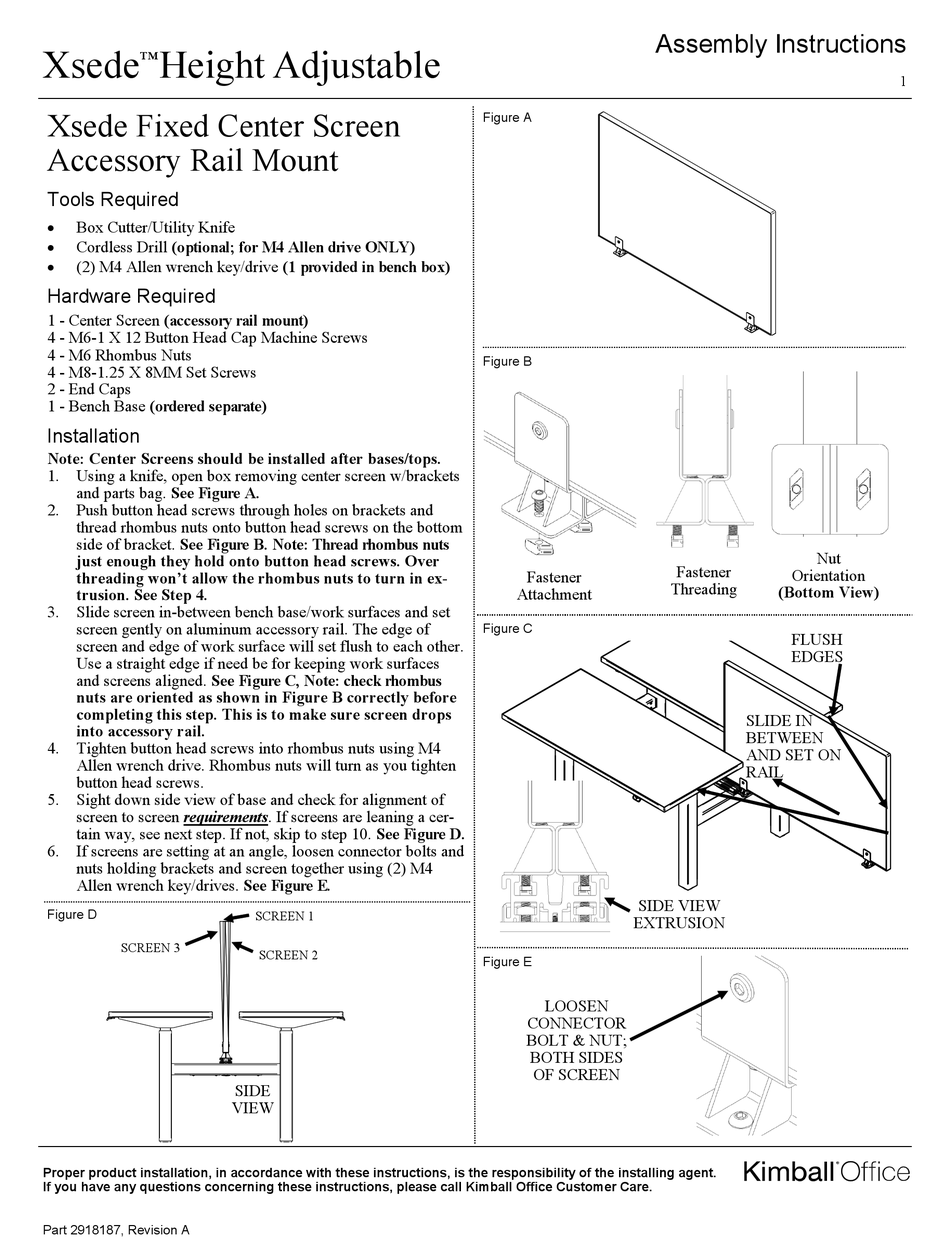

Xsede Height Adjustable
™
Xsede Fixed Center Screen
Accessory Rail Mount
Tools Required

Box Cutter/Utility Knife

Cordless Drill (optional; for M4 Allen drive ONLY)

(2) M4 Allen wrench key/drive (1 provided in bench box)
Hardware Required
1 - Center Screen (accessory rail mount)
4 - M6-1 X 12 Button Head Cap Machine Screws
4 - M6 Rhombus Nuts
4 - M8-1.25 X 8MM Set Screws
2 - End Caps
1 - Bench Base (ordered separate)
Installation
Note: Center Screens should be installed after bases/tops.
1. Using a knife, open box removing center screen w/brackets
and parts bag. See Figure A.
2. Push button head screws through holes on brackets and
thread rhombus nuts onto button head screws on the bottom
side of bracket. See Figure B. Note: Thread rhombus nuts
just enough they hold onto button head screws. Over
threading won't allow the rhombus nuts to turn in ex-
trusion. See Step 4.
3. Slide screen in-between bench base/work surfaces and set
screen gently on aluminum accessory rail. The edge of
screen and edge of work surface will set flush to each other.
Use a straight edge if need be for keeping work surfaces
and screens aligned. See Figure C, Note: check rhombus
nuts are oriented as shown in Figure B correctly before
completing this step. This is to make sure screen drops
into accessory rail.
4. Tighten button head screws into rhombus nuts using M4
Allen wrench drive. Rhombus nuts will turn as you tighten
button head screws.
5. Sight down side view of base and check for alignment of
screen to screen requirements. If screens are leaning a cer-
tain way, see next step. If not, skip to step 10. See Figure D.
6. If screens are setting at an angle, loosen connector bolts and
nuts holding brackets and screen together using (2) M4
Allen wrench key/drives. See Figure E.
Figure D
SCREEN 3
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part 2918187, Revision A
SCREEN 1
SCREEN 2
SIDE
VIEW

Assembly Instructions

Figure A
Figure B
Fastener
Attachment
Figure C
SIDE VIEW
EXTRUSION
Figure E
LOOSEN
CONNECTOR
BOLT & NUT;
BOTH SIDES
OF SCREEN
Nut
Fastener
Orientation
Threading
(Bottom View)
FLUSH
EDGES
SLIDE IN
BETWEEN
AND SET ON
RAIL
