Item Checklist; Layout Diagram & Jumper Setting Of Crossfire Motherboard - JETWAY M2A480 User Manual

1-3

Item Checklist

AMD 480X Platform Processor Chipset based motherboard
Cable for IDE
CD for motherboard utilities
Cable for Serial ATA IDE Port
□
Optional Switch Card for PCI-E x16 Bandwidth Adjustment
AMD 480X Platform Processor Chipset motherboard User's Manual

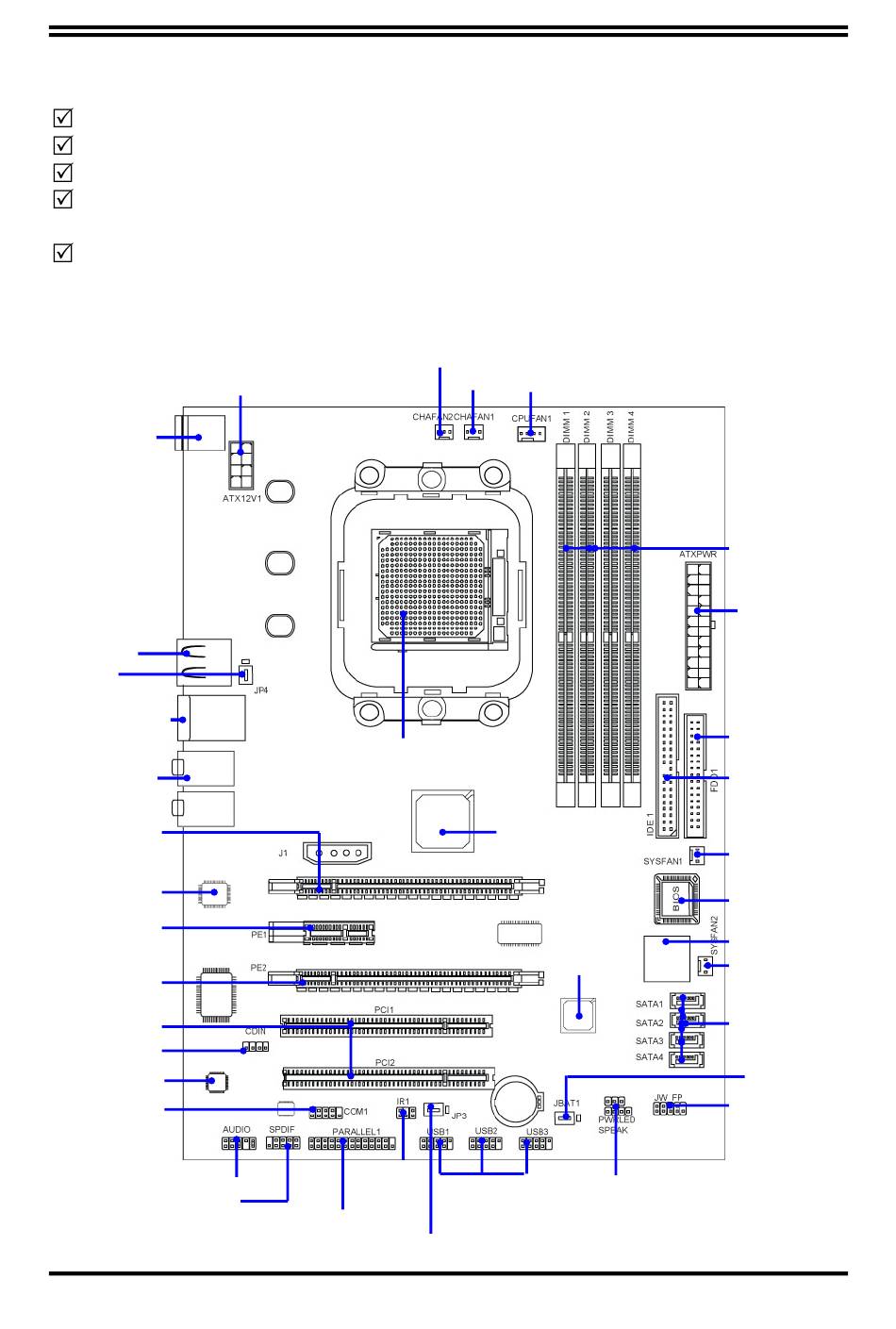

1-4 Layout Diagram & Jumper Setting of CrossFire
Motherboard
ATX 12V Power Connector
PS2 KB/Mouse Port
USB Port
JP4
RJ45 Over
USB Connector
Audio Connector
PCI Express x16
Realtek RT8111
Gigabit LAN
PCI Express x1
PCI Express x16
PCI Slot
CDIN
Realtek ALC880
Audio Decode
COM1
CPU Socket AM2
IR Connecter
Audio
SPDIF
Parallel
Connector
CHAFAN2
CHAFAN1 CPU FAN
AMD 480X Chipset
AMD SB600
USB Port
(USB1, USB2, USB3)
USB Power On Jumper (JP3)
4
DDR2 Socket x 4
ATX Power Conn.
Floppy Connector
ATA 133 IDE
Conn.
SYSFAN1
4MBit Flash
ROM BIOS
Debug Port
SYSFAN2
Serial-ATAII Connector
(SATA II 1, 2,3,4)
Clear CMOS (JBAT)
Front Panel Connector
Speaker Connector
Power LED Connector
(IDE1)
