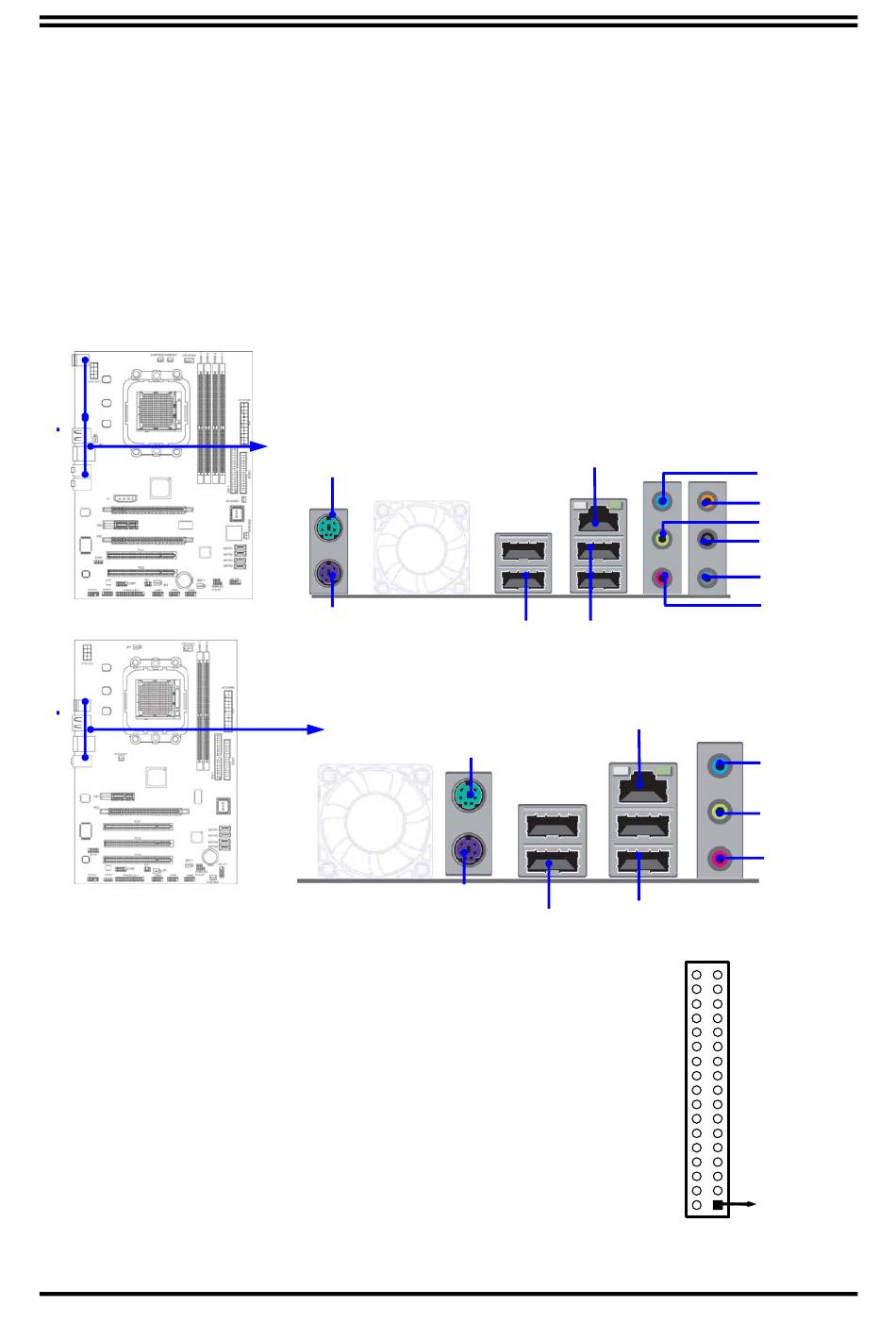

(6) Audio Line-In, Lin -Out, MIC, Surrback, Surround, CEN/LEF Connector :
SURROUND1 / CN1
This Connector are 6 phone Jack for LINE-OUT, LINE-IN, MIC, Surrback, Surround,
CEN/LEF
Line-in :
(BLUE)
Line-out : (GREEN)
MIC :
(PINK)
Surrback : (ORANGE)
CEN/LEF : (BLACKNESS) Audio output to speaker-Center/Subwoofer speaker out
Surround: (GRAY)
(7) Floppy drive Connector (34-pin block): FDD1
This connector supports the provided floppy drive
ribbon cable. After connecting the single plug
end to motherboard, connect the two plugs at
other end to the floppy drives.
Audio input to sound chip
Audio output to speaker
Microphone Connector
Audio output to speaker-Rear speaker out
Audio output to speaker-Side speaker out
PS/2
Mouse
PS/2
Keyboard
PS/2
Mouse
PS/2
Keyboard
11
Gigabit LAN
USB1
UL2
Optional 10/100Mbps
LAN
UL2
USB1
FDD
Floppy Drive Connector
Line-IN
Surrback
Line-OUT
CEN/LFE
Surround
MIC-IN
Line-IN
Line-OUT
MIC
Pin 1
