2-3 Expansion Cards of CrossFire Motherboards

The CrossFire Tech. Supported motherboards offer two PCI-Express x16 graphics slot. When
install the "Switch Card" into PE-3, the PE1 will offer 4Gbyte/sec data transfer rate at each
relative direction. And when you install two ATi CrossFire Tech. Supported VGA cards to
activate the Multi-VPU computing, the PE1 and PE3 slots will offer 2Gbyte/sec data transfer
rate at each relative direction. One x1 PCI Express Slot that is Fully compliant to the PCI
Express Base Specification revision 1.0a and supports PCI Express VGA card, and other PCI
Express device.

2-4 Expansion Cards of Motherboards Without CrossFire

Motherboards without CrossFire Tech. Support that offer one PCI-Express x16 graphics slot
of 4Gbyte/sec data transfer rate at each relative direction, and one PCI Express x1 Slot which
is fully compliant to the PCI Express Base Specification revision 1.0a , support PCI Express
VGA card, and other PCI Express device.

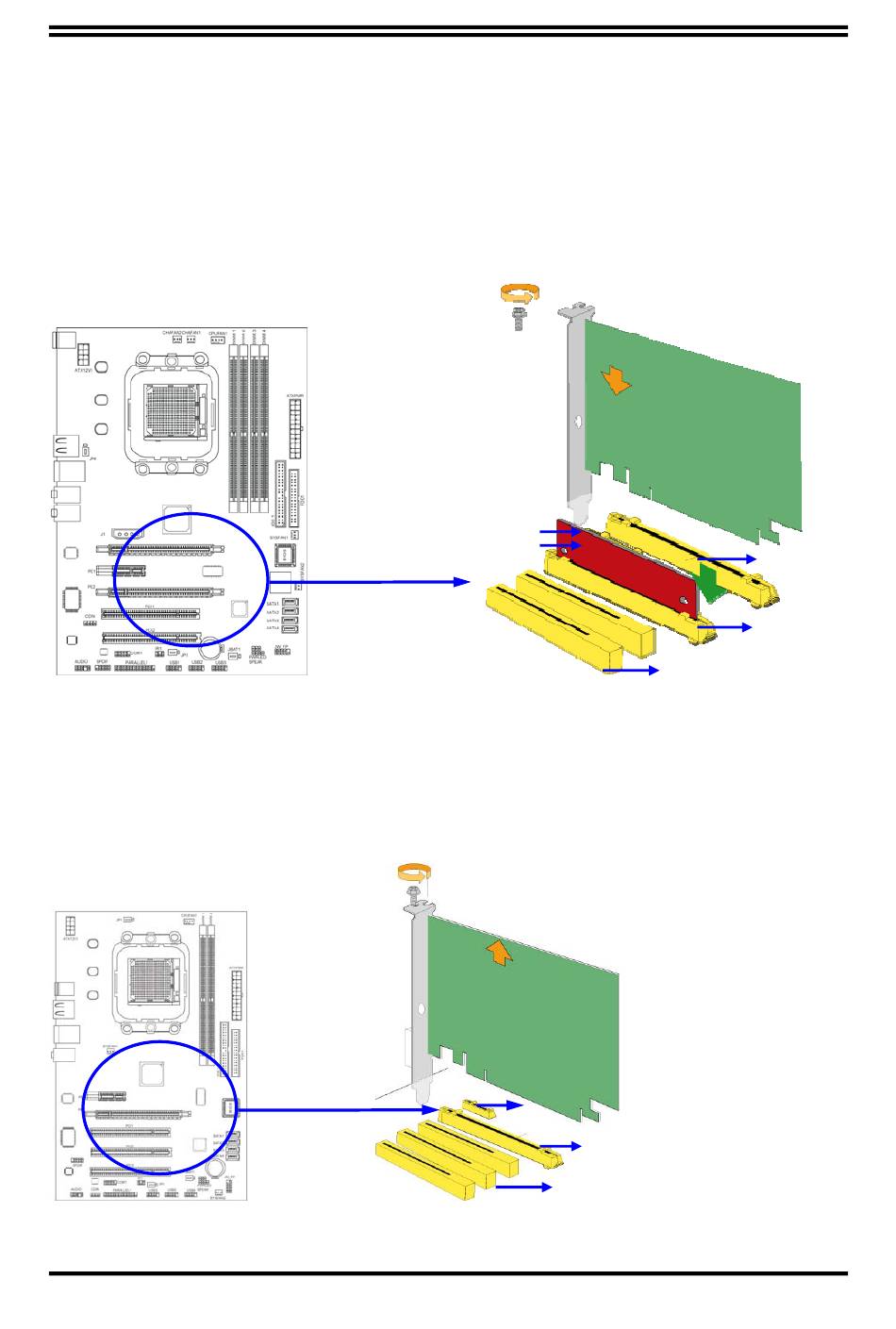

PCI-E x1 Slot
