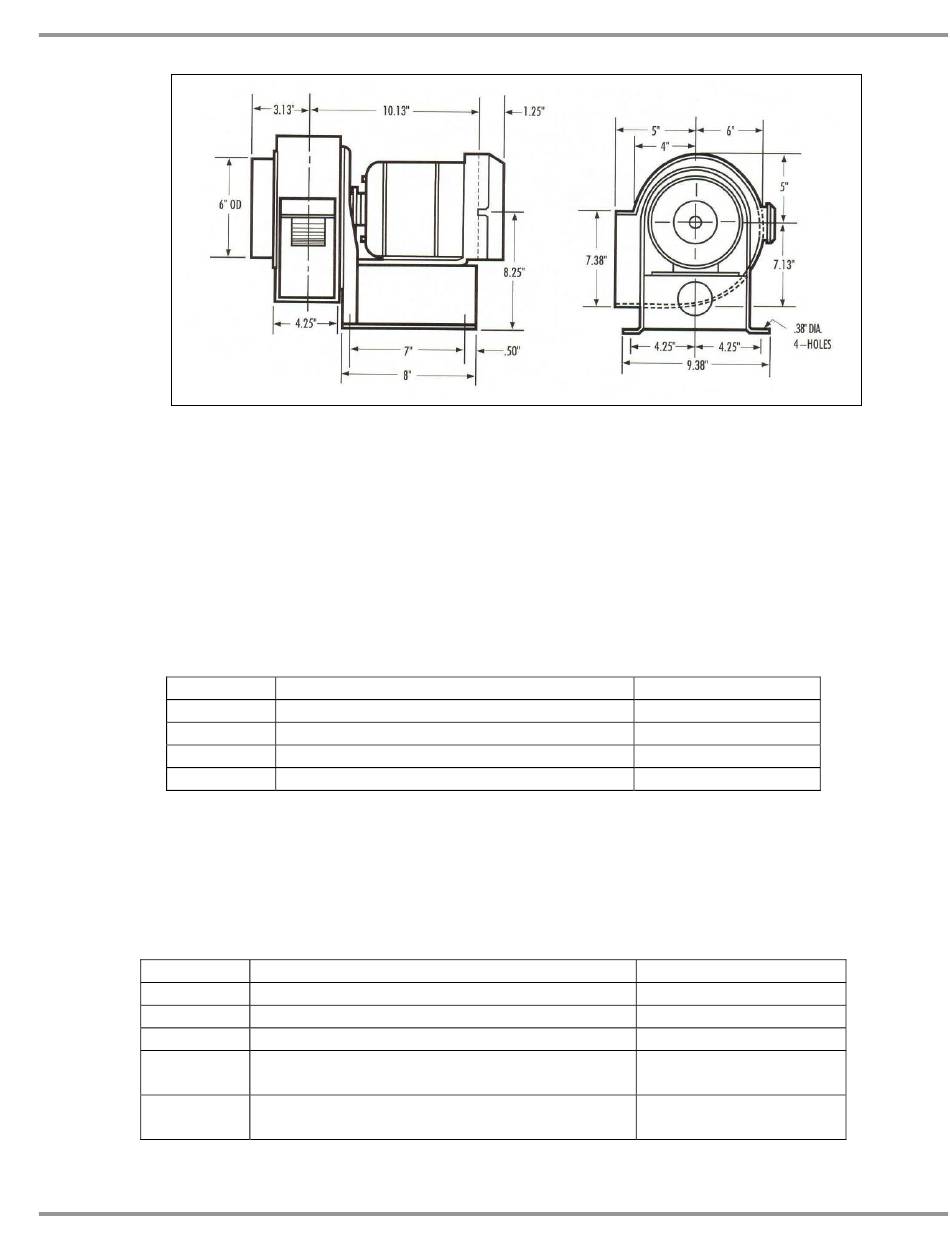

All dimensions in inches
11. Pressure Relief Vent Kits and Pressure Relief Valve
Pressure relief vent kits are detailed in Chapters 2 and 3 and include
tubing connections and/or filters. Three pressure relief vent kits are
available to vent either unfiltered air or filtered air. All pressure relief
vent kits include a 3.9" (99mm) OD x 3.8" (97mm) ID nominal
thimble for connection to a house exhaust. The pressure relief valve
is factory installed on the Precise Controlled Atmosphere Glove Box,
but is an accessory on the Precise Basic Glove Box. See Chapter 3
for installation.
Part # Descriptions
5242700 Pressure Relief Vent Kit (No Filters)
5238500 HEPA Filtered Pressure Relief Vent Kit
5241200 Carbon Filtered Pressure Relief Vent Kit
5230600 Pressure Relief Valve (Basic add on)
Vent Kits 5238500 and 5241200 may be used together if required.
12. Gas Inlet / Vacuum Outlet Tubing Kits and Direct Drive Vacuum
Pumps
These flexible vinyl tubing kits provide the necessary tubing and
fittings to make connections to an inert gas supply tank and a rotary
vane vacuum pump. See Figures 3-7 and 3-8.
Part # Descriptions
5245100 Complete Gas/Vac Tubing Kit (Manual)
5245200 Complete Gas/Vac Tubing Kit (Auto)
1472100 Direct Drive Vacuum Pump, 115V, 50/60Hz
7739400 Direct Drive Vacuum Pump, 230V, 50/60Hz,
NEMA 6-15P plug
7739402 Direct Drive Vacuum Pump, 230V, 50/60Hz
with reverse IEC plug
Product Service 1-800-522-7658
Chapter 7: Accessorizing Your Glove Box
Figure 7-1
Vent Options
Outside
Room or Outside
Room or Outside
All
Used With
Manual Valves
Pressure Controller
Both
Both, International
Version
Both, International
Version
