Installing a NetWay1512 adapter for 12VDC IP cameras up to 13W:
1. Mount NetWay1512 in proximity to IP camera (Fig. 2, pg. 4). Affix one side of velcro (supplied) to NetWay1512
and the place the second side of the velcro in the desired location.
2. Connect structured cable from port marked [IN] on
NetWay1512 to any ports marked [OUT] of NetWay8V/
NetWay16V (Fig. 2, pg. 4, Fig. 1a, pg. 3).
3. Connect structured cable from port marked [OUT] on
NetWay1512 to the IP camera (Fig. 2, pg. 4).
4. Connect 12VDC output from NetWay1512 terminals
marked [--- 12VDC +] to the power input of the
IP camera (Fig. 2, pg. 4). Polarity must be observed.
5. Power LED indicator will illuminate on NetWay1512
under normal conditions (Fig. 2, pg. 4).
Installing a NetWay3012 adapter for 12VDC IP PTZ up to 25W:
1. Mount NetWay3012 in proximity to IP camera utilizing mounting
hole (Fig. 3, pg. 5). Use a proper fastener and/or wall anchor
when securing NetWay3012 to the wall.
2. Connect structured cable from port marked [IN] on NetWay3012
to ports marked [OUT] of NetWay8V/NetWay16V
(Fig. 3, pg. 4, Fig. 1a, pg. 3).
3. Connect structured cable from port marked [OUT] on
NetWay3012 to the IP fixed or PTZ camera (Fig. 3, pg. 4).
4. Connect 12VDC output from NetWay3012 terminals marked
[+ 12VDC --- ] to the power input of the
IP camera (Fig. 3, pg. 4). Polarity must be observed.
5. Power LED indicator will illuminate on NetWay3012 under
normal conditions (Fig. 3, pg. 4).
Installing a NetWayXT/NetWayXTX repeater module:
NetWayXT will work only with PoE devices.
NetWayXTX will work with PoE/PoE+ devices.
1. Mount NetWayXT/NetWayXTX in desired location utilizing
the mounting hole (Fig. 4, pg. 4). Use a proper fastener and/or
wall anchor when securing NetWayXT/NetWayXTX to the wall.
2. Connect structured cable from port marked [OUT] on NetWay
to port marked [IN] on the NetWayXT/NetWayXTX
(Fig. 4, pg. 4, Fig. 1a, pg. 3).
3. Connect structured cable from port marked [OUT] on
NetWayXT/NetWayXTX to the PoE/PoE+ camera/edge device
or next NetWayXT/NetWayXTX repeater (Fig. 4, pg. 4).
4. Port status LEDs will illuminate on NetWayXT/NetWayXTX
indicating the port is operational (refer to LED Definitions).
5. Power LED will illuminate indicating 12VDC output.
Port LED definitions for NetWayXT repeater:
Status
OFF
ON
Blinking
Port LED definitions for NetWayXTX repeater:
Status
OFF
ON
Blinking
- 4 -
Green LED
Indicates it is connected as 10Base-T or no link.
Indicates it is connected as 100Base-TX.
---------------------------
PoE/PoE+ Output LED
No PoE/PoE+ Output
Normal PoE/PoE+ Output
-------

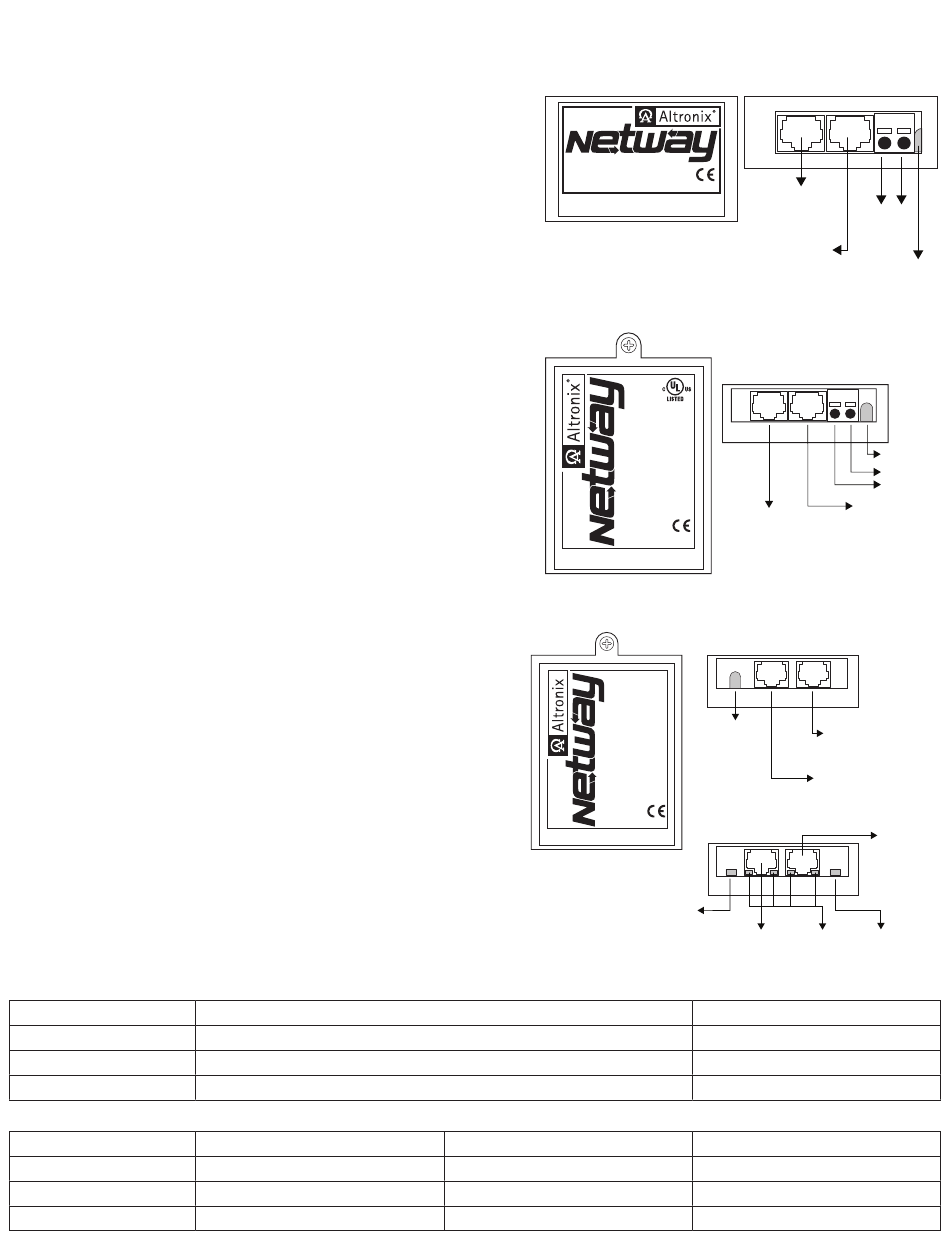

Fig. 2 - NetWay1512
Netway1512
Adapter
www.altronix.com
IN
OUT
Fig. 3 - NetWay3012
Netway3012
Adapter
www.altronix.com
IN
OUT
+ Output ---
Fig. 4 - NetWayXT/NetWayXTX
NetwayXT
Repeater
www.altronix.com
Power
OUT
IN
PoE/PoE+
Output
PoE/PoE+ Input LED
No PoE/PoE+ Input
PoE/PoE+ Input
-------
Structured
12VDC
Cable from
--- Output +
NetWay
Structured Cable
from IP Camera/Device
I.T.E. 43KC
Structured Cable
from NetWay8,
NetWay8M, NetWay16
or NetWay16M
12VDC
NetWayXT
Structured
Power
Cable from
LED
NetWay8/16
Structured Cable
to IP Camera/
Edge Device
or next
NetWayXT
NetWayXTX
LED
Port Status
Structured
LEDs
Cable to
PoE/PoE+
Camera/Device or
next NetWayXTX
Yellow LED
Indicates no link.
Indicates a link.
Indicates activity.
Yellow LED
Indicates no link.
Indicates a link.
Indicates activity.
NetWay8V/NetWay16V
-- +
12VDC
Output
Power
LED
Power LED
12VDC
--
Power to
+
Camera
Structured Cable
from IP Camera
Structured
Cable from
NetWay8/16
PoE/PoE+
Input
LED
