Altronix NetWay8V Installation Manual page 3

Port Status
All Ports Off
Port Off
Port On
Class 4 detection Port
Non-compliant Port
Port Overload Fault
4 Port Overload Grouped
8 Port Overload Grouped

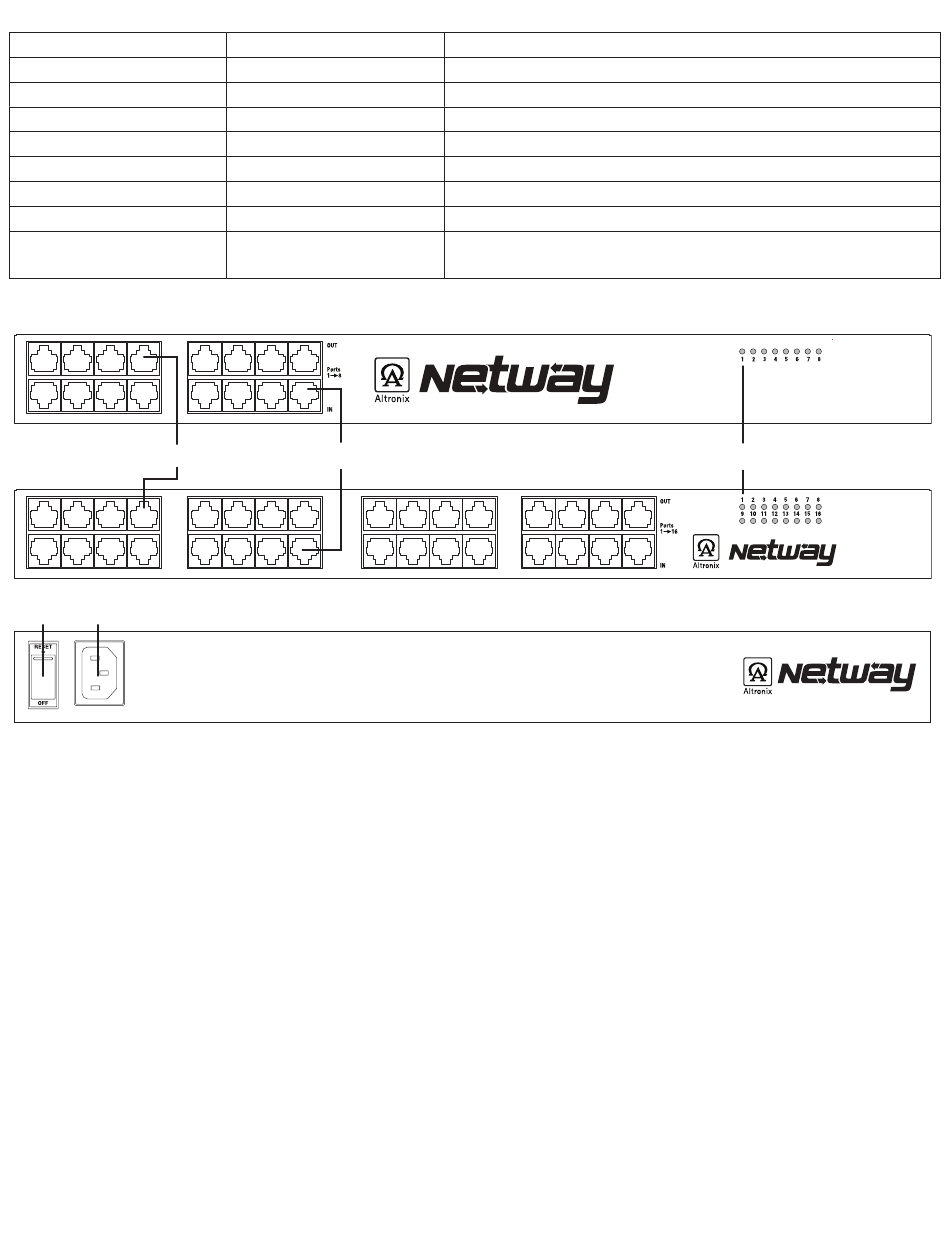

Fig. 1
NetWay8V - Front Panel
1a
NetWay16V - Front Panel
1d 1e
AC POWER
NetWay8V & NetWay16V - Rear Panel
1a OUT 1-8 (NetWay8V), OUT 1-16 (NetWay16V): Structured cable to PoE compliant cameras/edge devices.
1b IN 1-8 (NetWay8V), IN 1-16 (NetWay16V): Structured cable to ethernet switch or video server.
1c LED(s) 1-8 (NetWay8V), 1-16 (NetWay16V): Port status LEDs.
1d Illuminated master power disconnect circuit breaker (switch):
• OFF position Circuit breaker tripped Switch not illuminated.
• RESET (ON) position Switch illuminated.
1e IEC 320 Connector: 220VAC 50/60Hz (grounded line cord included).
NetWay8V/NetWay16V
Port Status and LED Flash Codes:
Flash Codes
Sequential LED Port Scan
OFF
ON
Blinks 2 times
2Hz
5Hz
5Hz
5Hz
1b
Description
No devices connected
LED OFF
LED ON
4 LEDs
LEDs 1-8 Power Supply Overload for ports 1-8.
LEDs 9-16 Power Supply Overload for ports 9-16.
1c
- 3 -
