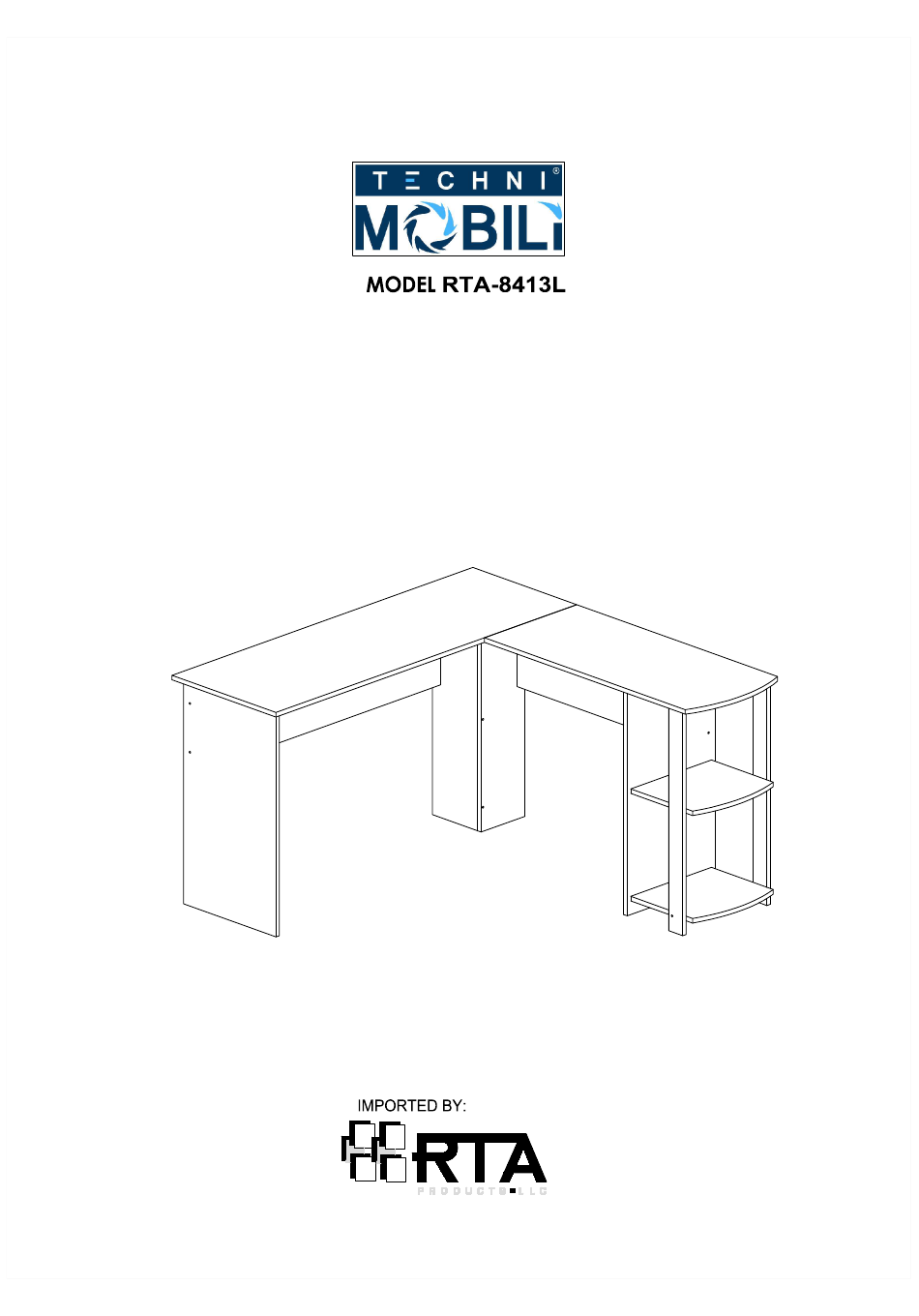

- Page 1 ASSEMBLY INSTRUCTIONS Thanks for purchasing one of our products. Please read carefully the assembly instructions before the installation. Do not discard this manual or any of the packaging material until the unit has been completely assembled.
-
Page 2: Main Parts Layout
Left Tabletop Right Tabletop Center-Left Panel Center-Right Panel Right Shelf Panel Shelf Left Support Shelf Right Support Left Back panel Right Back panel Adjust panel MAIN PARTS LAYOUT (For reference):... - Page 3 PART QTY. ITEM 2Pcs Wooden Pin 22Pcs Wooden Pin Cam Lock & 8Sets Bolt Sets 14Pcs Screw - 3 x 16mm 15Pcs Screw - 5 x 38mm Cam locks caps 8Pcs Screw Caps 19Pcs 3Pcs L Bracket 2Pcs Metal Plate 10Pcs Plactic Feet 4Pcs...
- Page 5 - Install 22pcs of Wooden Pins (2) into all panels as shown. Use a wooden or light rubber hammer to avoid damage to the pins. Please pay close attention to which holes you have to use, and do not join any parts yet! - Install the wooden pins (1) into the panel (A) in the holes shown in the illustration.
- Page 6 - First install bolts (3) into the panels (A) and (B) in the holes indicated in the illustration. Then install the metal plate (9) on the panel (B) using screws (4) as shown. - Attach L Bracket (8) to the panel (J) and (K) using screw (4) as shown.
- Page 7 - Assemble the panels (D) and (G) using screw (5) as shown. - Assemble the panel (H) to panels (G) using screws (5) as shown.
- Page 8 This illustration shows the same parts from step 6, but flipped to the other side. - Assemble the panel (I) to panel (G) using screw (5) as shown. This illustration shows the same parts as step 7, but viewed from the top. Assemble the panel (K) to panel (D) using screws (5) as shown.
- Page 9 This illustration shows the same parts from step 8, but viewed from the bottom. - Assemble the panel (F) to panel (K) using screws (5) as shown, then install the nail-in studs (10) to the bottom of the panels (D),(F),(H) and (I) as shown. - Assemble the panel (C) to panel (J) using screws (5) as shown.
- Page 10 This illustration shows the same parts from step 10, but viewed from a different angle (from the right). - Assemble the panel (E) to panel (J) using screws (5) as shown, then install the nail-in studs (10) to the bottom of the panels (C) and (E) as shown. The parts assembled in steps 9 and 11 are shown here in the normal upright position.
- Page 11 - First install and align the cam locks (3) into panels (C), (D), (E), (F), (H) and (I). Then carefully place the tabletop (A) on the left side of the frame. Then place the tabletop (B) on the right side of the frame, and proceed to tighten all the cam locks as explained in page 4. Finally, cover the cam locks with the caps (6).
- Page 12 - Cover all the screw heads with caps (7) as shown.Insert the metal pins (11) into the corresponding holes on panels (D),(H) and (I) as shown.Then insert the Shelf panel (L) into the unit. DONE! Before you start using the unit, make sure that all the screws, bolts, cam locks, etc.
- Page 13 50Kg (110 Lbs) 10Kg (22 Lbs) 5Kg (11 Lbs) 5Kg (11 Lbs)
