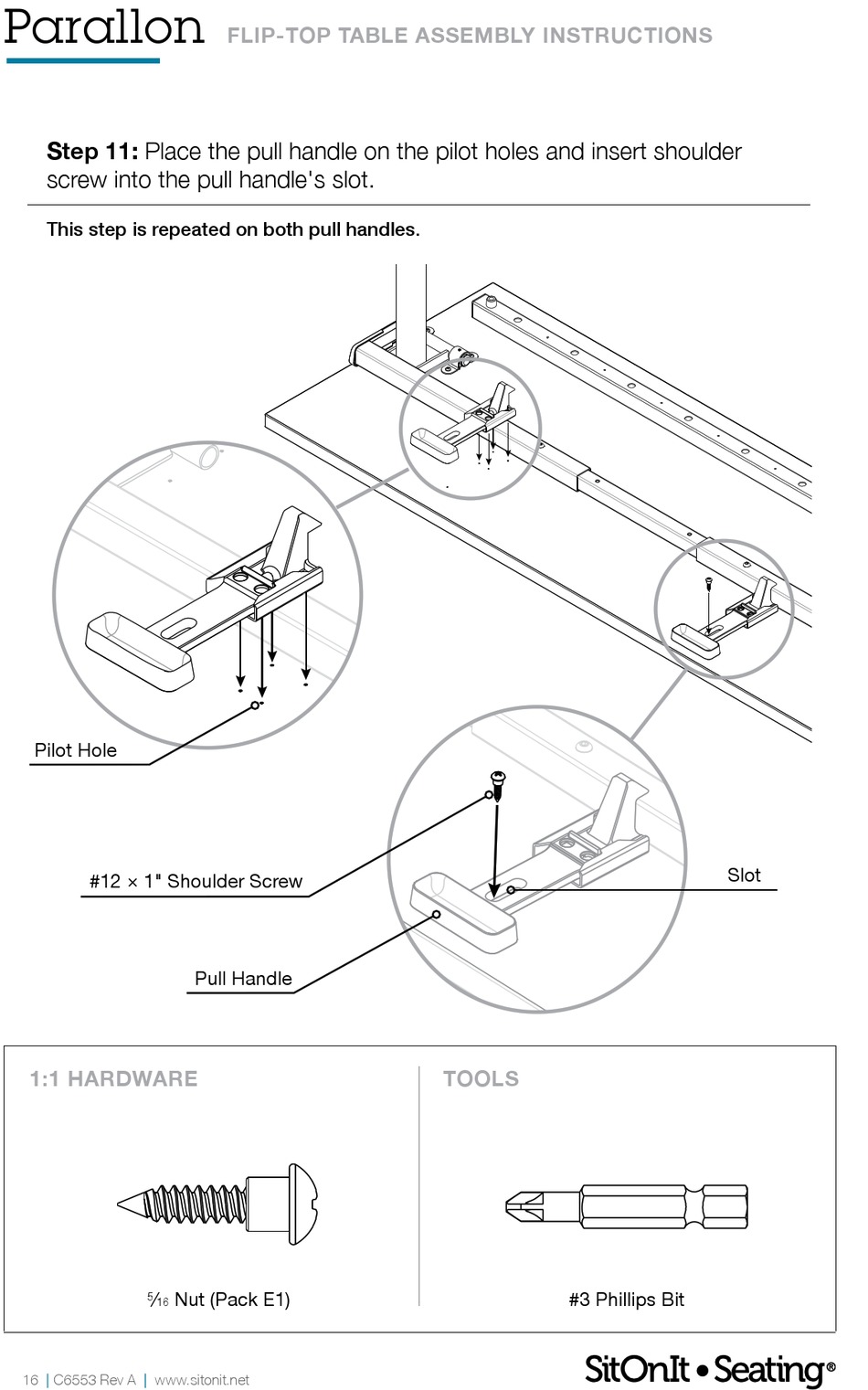

FLIP-TOP TABLE ASSEMBLY INSTRUCTIONS
Step 11: Place the pull handle on the pilot holes and insert shoulder
screw into the pull handle's slot.
This step is repeated on both pull handles.
Pilot Hole
Slot
#12 x 1" Shoulder Screw
Pull Handle
1:1 HARDWARE
TOOLS
⁄
Nut (Pack E1)
#3 Phillips Bit
