88 5650 49

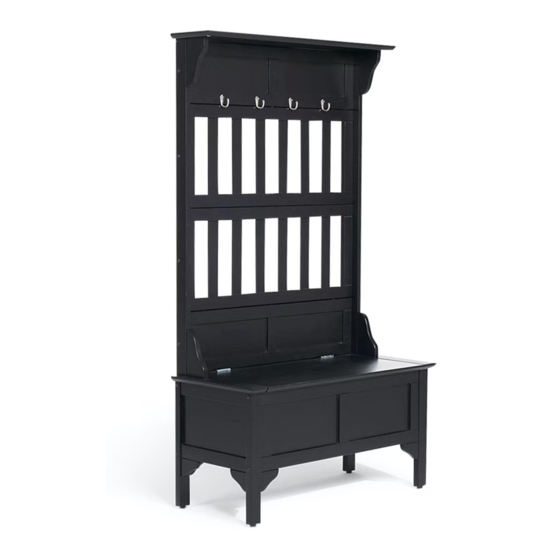

Hall Tree & Storage Bench
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
BASE UNIT PART LIST
A.
Seat
1 pc.
D.
Front Panel
1 pc.
HARDWARE LIST
Hex Wrench
1 pc.
Tools Required For Assembly : Phillips screwdriver
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
E.
Back Panel
1 pc.
Head Cap Bolt
(short)
3 pcs.(+ 1 extra)
Head Cap Bolt
Cross Dowel
8 pcs.(+1 extra)
(long)
8 pcs.(+1 extra)
servicedesk@homestyles-furniture.com
B.
Side Panel
1 pc
.
Spring Support
1 pc.
C.
Side Panel
1 pc.
F.
Base
1 pc.
Wood Screw
(for Spring Support)
4 pcs.(+1 extra)
Wood Plug
8 pcs. (+1 extra)
Advertisement
Related Manuals for Home Styles 88 5650 49
Summary of Contents for Home Styles 88 5650 49
- Page 1 Head Cap Bolt Cross Dowel Hex Wrench 8 pcs.(+1 extra) Spring Support 1 pc. (long) Wood Plug 1 pc. 8 pcs.(+1 extra) 8 pcs. (+1 extra) Tools Required For Assembly : Phillips screwdriver Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319 servicedesk@homestyles-furniture.com...
- Page 2 Assembly Instructions Figure 1 IMPORTANT Do not tighten up all the screws until each part is properly assembled. You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. Head Cap Bolt (long) Cross Dowel...
- Page 3 HARDWARE LIST Head Cap Bolt Wood Screw Wood Plug 8 pcs. 8 pcs. (short) Hook 20 pcs.(+1 extra) (+1 extra) (+1 extra) 4 pcs. Tools Required For Assembly : Phillips screwdriver Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319 servicedesk@homestyles-furniture.com...
- Page 4 Assembly Instructions 2/3 STEP 1 Attach the Hooks to the Upper Back Frame (J) with Wood Screws. (See figure 3) Figure 3 STEP 2 Assemble the Lower Back Frame(L), Upper Back Frame (J) and Back Frame (K). Head Cap Bolt (short) STEP 3 Attach the Side Frame (H) and (I) to the assembled unit with Head Cap Bolts.
- Page 5 Assembly Instructions 3/3 Head Cap Bolt (short) Head Cap Bolt (short) STEP 4 Attach the Top (G) to the Side Panel (H) and (I) with Head Cap Bolts. Attach the Arm (M) and (N) to the Side Panels with Head Cap Bolts. STEP 5 Place the Top Unit onto the Base Unit and attach with Head Cap Bolts.
