Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Seat
1 pc.
D.
Front Panel
1 pc.
E.
Back Panel
1 pc.
F.
Base
1 pc.
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 5649 49C

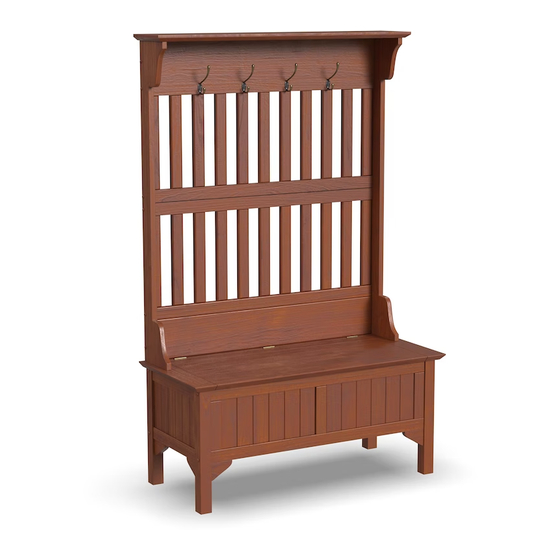

Hall Tree Storage Bench
B.
Side Panel
1 pc.
H.
Side Panel
1 pc.
M6x50
Spring Support
Head Cap Bolt (long)
2 pcs.
8 pcs. (+1 extra)
M3.5x16
Wood Screw
for Spring Support
Cross Dowel
8 pcs. (+1 extra)
8 pcs. (+1 extra)
G.
Top
1 pc.
C.
J.
Side Panel
Back Frame
1 pc.
1 pc.
K.
Back Frame
1 pc.
L.
Back Stretcher
2 pcs.
I.
Side Panel
1 pc.
M6x35
Head Cap Bolt
24 pcs. (+1 extra)
M6x30
Head Cap Bolt (short)
4 pcs. (+1 extra)
888-680-7460, 877-831-0319
M.
Arm
1 pc.
Hook
4 pcs.
M4x16
Wood Screw
for Hook
8 pcs. (+1 extra)
N.
Arm
1 pc.
Wood Plug
20 pcs. (+1 extra)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 88 5649 49C
Summary of Contents for Home Styles 88 5649 49C
- Page 1 4 pcs. (+1 extra) 1 pc. 8 pcs. (+1 extra) 8 pcs. (+1 extra) 8 pcs. (+1 extra) Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/5 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/5 Wood Screws for Hook Hook Figure 4 STEP 4 Attach Hooks to Back Frame (J) by inserting Wood Screws for Hook into pre-drilled holes. (See Figure 4) STEP 5 Assemble Back Frames (J), (K) and (L) together. Head Cap Bolt STEP 6 Attach Side Panels (H) and (I)
- Page 4 Assembly Instructions 4/5 Head Cap Bolt STEP 7 Attach Top (G) and Arms (M), (N) to unit with Head Cap Bolts. Wood Plug STEP 8 Attach top unit to base unit with Head Cap Bolts (short). Cover all holes with Wood Plugs. Level unit by adjusting the adjustable levelers on bottom of unit.
- Page 5 Assembly Instructions 5/5 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 9 Anchor in wall Wall Screw Pre-drilled hole Bracket Place unit at desired location. on wall at top of unit 3/8”...
- Page 6 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
