88 5003 941

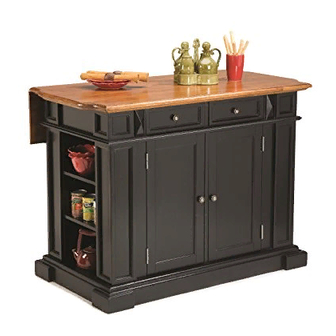

Kitchen Island Combo
(Black Finish)
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Top Unit
1 pc.
For assembly see instructions in carton 88 5003 943
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
servicedesk@homestyles-furniture.com
Advertisement
Table of Contents
Related Manuals for Home Styles 88 5003 941
Summary of Contents for Home Styles 88 5003 941
- Page 1 Part List Top Unit 1 pc. For assembly see instructions in carton 88 5003 943 Tools required for assembly : Phillips screwdriver Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319 servicedesk@homestyles-furniture.com...
- Page 2 9 pcs. (+1 extra) 32 pcs. (+1 extra) 18 pcs. (+1 extra) 4 pcs.(+1 extra) For assembly see instructions in carton 88 5003 943 Tools required for assembly : Phillips screwdriver Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319 servicedesk@homestyles-furniture.com...
- Page 3 1 pc. Shelf Side Panel 4 pcs. 2 pcs. Also need the following from carton 88 5003 941, 88 5003 942 Hardware List in carton 88 5002 942 Part List in carton 88 5003 941 Hex Wrench 1 pc. Top Unit (A) 1 pc.
- Page 4 Assembly Instructions 2/4 IMPORTANT Do not tighten up all the screws until each part is properly assembled. You should keep Hex Wrench in the safe place as you may need to tighten up the Head Cap Bolts in the future. STEP 1 Cam Lock Screw Put Cam Lock Screws into the pre-drilled holes of Leg (K),(L) and tighten.
- Page 5 Assembly Instructions 3/4 Head Cap Bolt STEP 3 Attach unit from Step 2 and Middle Panel (E) to Base (H) with Head Cap Bolts. Head Cap Bolt STEP 4 Attach Leg (I) and (J) to Base (H) with Head Cap Bolts. Slide Side Panels (M) into position.
- Page 6 Assembly Instructions 4/4 STEP 5 Head Cap Bolt Attach Rail (F) to unit with Head Cap Bolts. Machine Screw Insert Adjustable Pins Pull Handle Into both side panels and Middle Panels at the desired level. Slide Shelf (G) into place. Assemble Pull Handle to Door (P) and (Q) with Machine Screws.
