88 5003 181

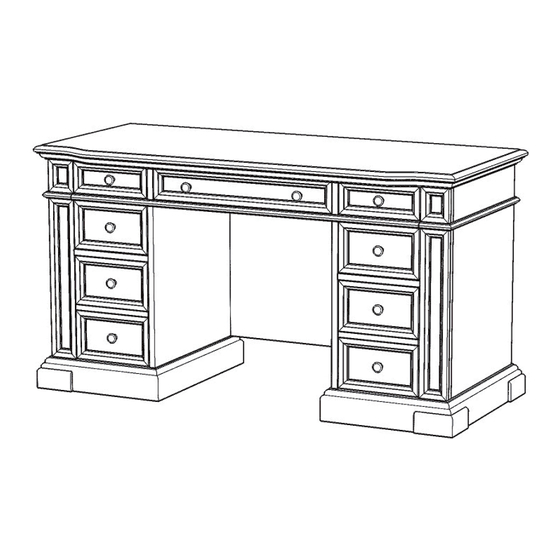

Executive Desk
IMPORTANT NOTE
.
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure
a completed product as it was designed.
Part List
E.
Middle Panel
1 pc.
Hardware List
Cam Lock
24 pcs. (+6 extra)
Cam Lock Screw
24 pcs. (+2 extra)
For assembly see instructions in carton 88 5003 182
Home Styles Consumer Assistance : www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
A.
Top
1 pc.
F.
Middle Panel
1 pc.
M6x32
Wood Screw
for Base
8 pcs. (+1 extra)
M3x10
Wood Screw
for Hinge
6 pcs. (+1 extra)
B.
Back Panel
1 pc.
Flat Washer
8 pcs. (+1 extra)
M3x15
Wood Screw (short)
24 pcs. (+1 extra)
M3x25
Wood Screw (long)
56 pcs. (+1 extra)
M4x25
Machine Screw
10 pcs.
Knob
10 pcs.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 88 5003 181
Summary of Contents for Home Styles 88 5003 181
- Page 1 Wood Screw (short) Cam Lock Screw for Hinge Machine Screw 24 pcs. (+1 extra) 24 pcs. (+2 extra) 6 pcs. (+1 extra) 10 pcs. For assembly see instructions in carton 88 5003 182 Home Styles Consumer Assistance : www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
-
Page 2: Important Note
Keyboard Front 1 pc. Front Stretcher Metal Strip 2 pcs. 4 pcs. Keyboard 1 pc. For assembly also need carton 88 5003 181 Tools required for assembly : Phillips screwdriver, Level Home Styles Consumer Assistance : www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319... - Page 3 Assembly Instructions 2/7 IMPORTANT * Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Do not tighten up all the bolts until each part is properly assembled. * Use a soft cloth between these parts and the floor.
- Page 4 Assembly Instructions 3/7 STEP 2 Attach Middle Panels (E) and (F) to Back Panel (B) with Cam Locks. (See Figure 2) Cam Lock Figure 2 Cam Lock STEP 3 Attach Front Stretchers (G) and (H) to unit with Cam Locks. Attach Side Panels (C) and (D) to unit with Cam Locks.
- Page 5 Assembly Instructions 4/7 Wood Screw for Hinge STEP 5 Attach Keyboard Front (N) to Keyboard (O) with Wood Screws for Hinge. Attach Knobs to keyboard with Machine Screws. (See Figure 4) Cam Lock Figure 4 STEP 6 Turn the unit from Step 4 over to its’...
- Page 6 Assembly Instructions 5/7 Drawer K STEP 1 Attach 1, K2 and K3 using a Phillips screwdriver and long wood screws (4X), Figure 1 tighten halfway. Attach K1, K2 and K4 using a Phillips MAKE SURE ROLLER IS ON THE BACK screwdriver and long wood screws (4X),...
- Page 7 Assembly Instructions 6/7 Drawer L STEP 1 Attach 1, L2 and L3 using a Phillips screwdriver and long wood screws (4X), tighten halfway. Figure 1 Attach L1, L2 and L4 using a Phillips screwdriver and long wood screws (4X), MAKE SURE ROLLER IS ON THE BACK tighten halfway.
- Page 8 Assembly Instructions 7/7 Drawer M STEP 1 Attach 1, M2 and M3 using a Phillips screwdriver and long wood screws (6X), tighten halfway. Attach M1, M2 and M4 using a Phillips Figure 1 screwdriver and long wood screws (6X), tighten halfway. (See Figure 1) STEP 2 Slide K5 into groove of M3 and M4.
