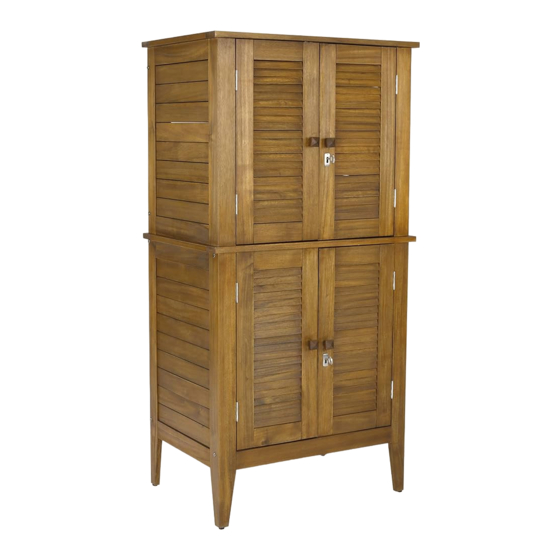

Storage Cabinet
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

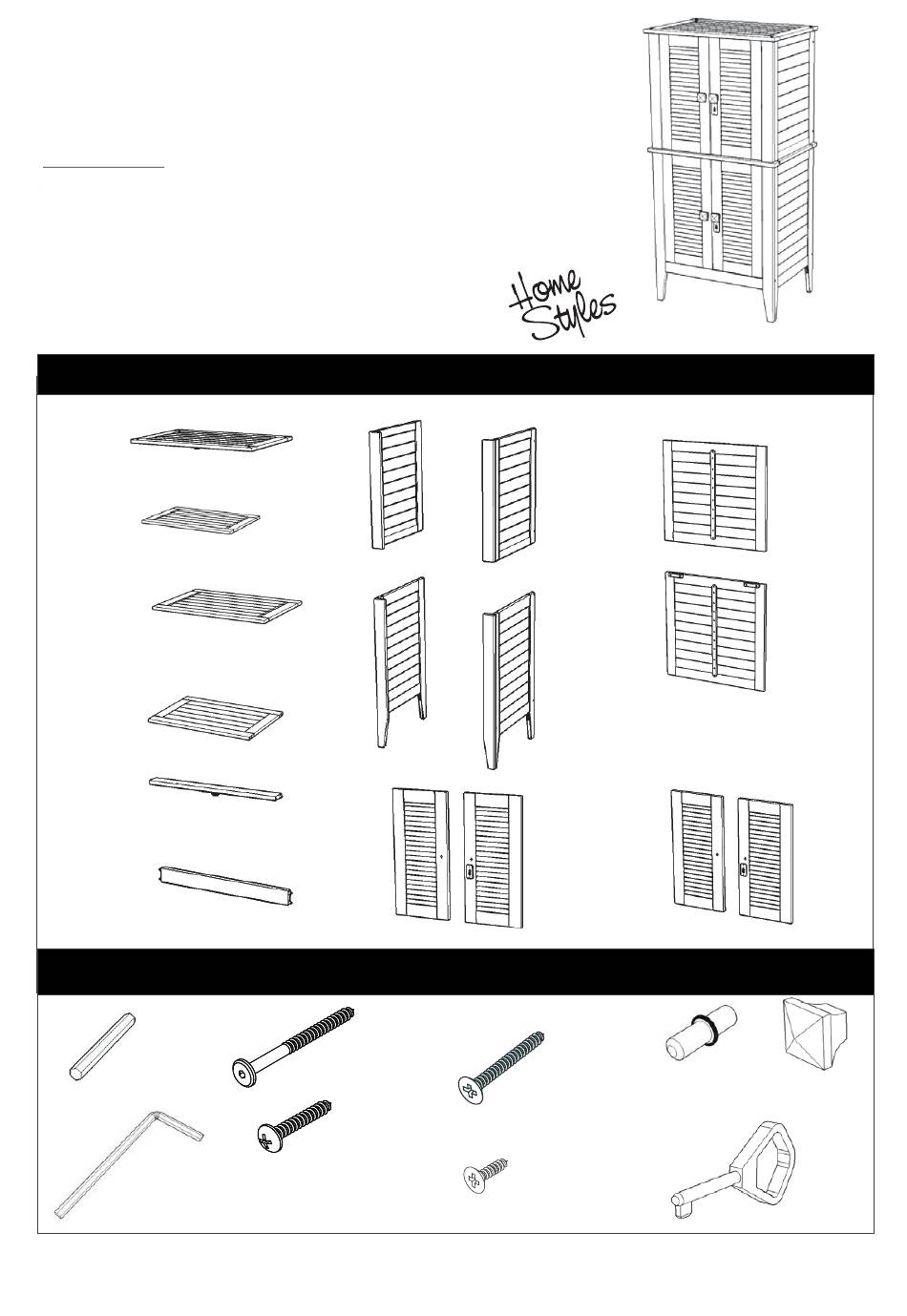

Part List
A.
Top
1 pc.
B.
Shelf
2 pcs.
C.
Middle Panel
1 pc.
D.
Base
1 pc.
E.
Stretcher
1 pc.
F.
Stretcher
1 pc.
Small
Hex Wrench
1 pc.
Hex Wrench
1 pc.
Tools required for assembly : Phillips screwdriver, Drill, 3/8" Drill Bit, Level
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
G.
Side Panel
1 pc.
J.
Side Panel
1 pc.
M.
Door
1 pc.
M7x60
Assembly Screw
20 pcs.(+1 extra)
M6x32
Wood Screw
for Handle
4 pcs.(+1 extra)
H.
Side Panel
1 pc.
K.
Side Panel
1 pc.
N.
O.
Door
Door
1 pc.
1 pc.
M6x25
Wood Screw
Adjustable Pin
4 pcs.(+1 extra)
8 pcs.(+1 extra)
M4x19
Wood Screw
for Door Hinge
24 pcs.(+1 extra)
I.
Back Panel
1 pc.
L.
Back Panel
1 pc.
P.
Door
1 pc.
Pull Handle
4 pcs.
Key
2 pcs.
Advertisement
Table of Contents
Related Manuals for Home Styles 88566127
Summary of Contents for Home Styles 88566127
- Page 1 Wood Screw Wood Screw for Handle Hex Wrench for Door Hinge 1 pc. 4 pcs.(+1 extra) 2 pcs. 24 pcs.(+1 extra) Tools required for assembly : Phillips screwdriver, Drill, 3/8” Drill Bit, Level Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/6 IMPORTANT * Please keep Hex Wrench in a safe place as you may need to tighten up the screws in the future. * After assembly item must be level to work properly. Use the include adjustable levelers to level. * Do not tighten up all the Screws unitl each part is properly assembled * Use a soft cloth between these parts and the floor.
- Page 3 Assembly Instructions 3/6 STEP 3 Attach Top (A) and Middle Panel (C) to unit from Step 2 with Assembly Screws. Wood Screw STEP 4 Attach unit form Step 1 to unit from Step 3 with Wood Screws.
- Page 4 Assembly Instructions 4/6 Adjustable Pin Figure 1 Figure 2 STEP 5 Insert Adjustable Pins into side panels at Figure 3 the desired level (See Figure 1) then place Shelves (B) into position. Attach Doors (M), (N), (O) and (P) to unit with Wood Screws for Door Hinge.
- Page 5 Assembly Instructions 5/6 Attention! To help reduce the risk of the unit tipping over, the Tipover Restraint must be installed following these instructions exactly! Anchor in wall Bracket Wall Screw on wall Bracket at 3/8” wall hole top of unit Place unit at desired location.
- Page 6 Assembly Instructions 6/6 IMPORTANT NOTICE If the magnetic door catches are too strong and difficult to open, the magnetic power can be reduced and the door made easier to open by doing the following: Magnet Magnet Magnet location. Magnet position. Rotate the Magnet until one Screw...
