IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

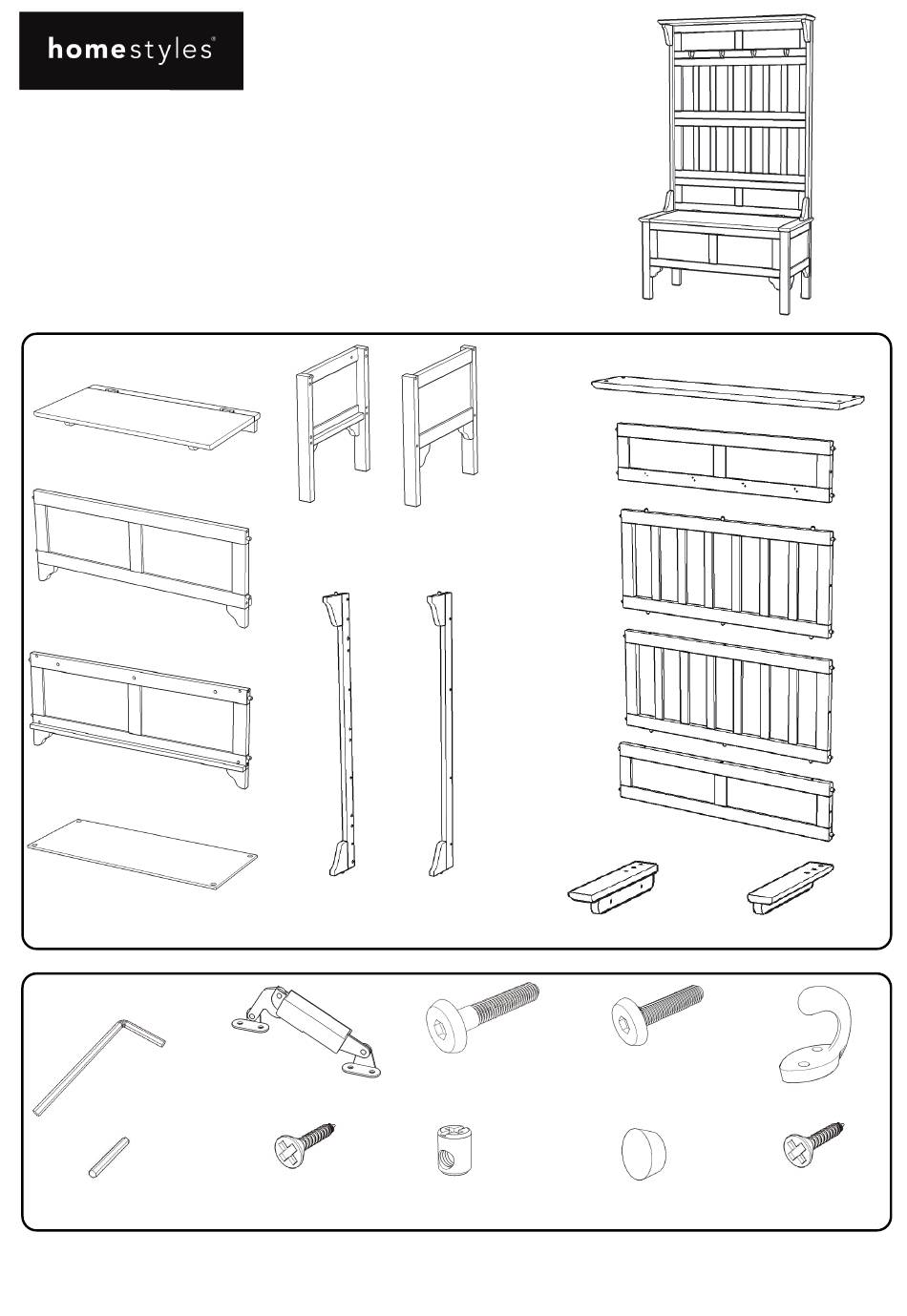

Part List
A.
Seat
1 pc.
D.
Front Panel
1 pc.
E.
Back Panel
1 pc.
F.
Base
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
5650 49
-

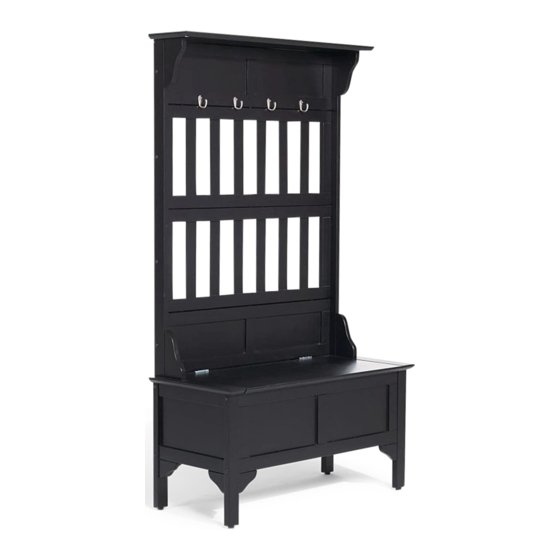

Hall Tree
C.
B.
Side Panel
Side Panel
1 pc.
1 pc.
H.
I.
Side Panel
Side Panel
1 pc.
1 pc.
Spring Support
1 pc.
M3.5x16
Wood Screw
4 pcs. (+1 extra)
G.
Top
1 pc.
J.
Back Frame
1 pc.
K.
Back Frame
1 pc.
L.
Back Frame
1 pc.
M.
Back Frame
1 pc.
N.
Arm
1 pc.
M6x50
Head Cap Bolt (long)
8 pcs. (+1 extra)
Cross Dowel
8 pcs. (+1 extra)
888-680-7460, 877-831-0319
O.
Arm
1 pc.
M6x30
Head Cap Bolt
Hook
4 pcs.
23 pcs. (+1 extra)
M4x16
Wood Screw for Hook
Wood Plug
16 pcs. (+1 extra)
8 pcs. (+1 extra)
Advertisement
Related Manuals for Home Styles 5650-49
Summary of Contents for Home Styles 5650-49
- Page 1 1 pc. 4 pcs. (+1 extra) 8 pcs. (+1 extra) 16 pcs. (+1 extra) 8 pcs. (+1 extra) Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestylesfurniture.com, servicedesk@homestylesfurniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/6 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/6 STEP 3 Insert Base (F) into unit. Attach Seat (A) to unit with Head Cap Bolts. Head Cap Bolt Cover all holes with Wood Plugs. (See Figure 3) Figure 3 Wood Plug Wood Screw for Hook STEP 4 Hook Attach Hooks to Back Frame (J) with Wood Screws for Hook...
- Page 4 Assembly Instructions 4/6 STEP 5 Attach Back Frames (J), (K), (L) and (M) together. Head Cap Bolt STEP 6 Attach Side Panels (H) and (I) to unit with Head Cap Bolts.
- Page 5 Assembly Instructions 5/6 Head Cap Bolt STEP 7 Attach Top (G) and Arms (N), (O) to unit with Head Cap Bolts. STEP 8 Wood Plug Attach top unit to base unit with Head Cap Bolts. Cover all holes with Wood Plugs. Level unit by adjusting the adjustable levelers on bottom of unit.
-
Page 6: Hardware List
Assembly Instructions 6/6 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tipover Restraint must be installed following these instructions exactly. STEP 9 Anchor in wall Wall Screw Pre-drilled hole Bracket on wall at top of unit Place unit at desired location. - Page 7 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
