88 5516 991
Barnside Bar
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

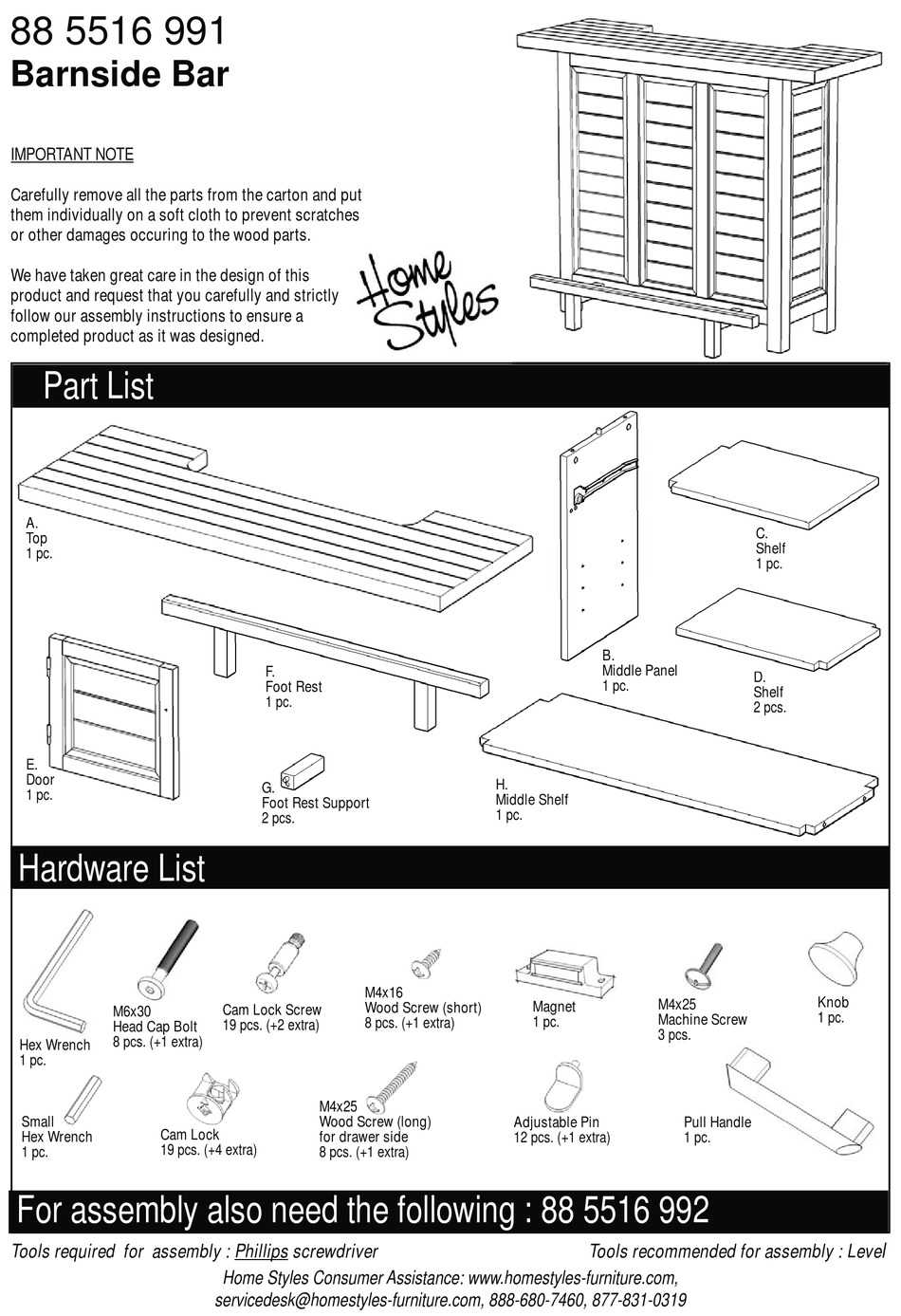

Part List
A.
Top
1 pc.
E.
Door
1 pc.
Hardware List
M6x30
Head Cap Bolt
8 pcs. (+1 extra)
Hex Wrench
1 pc.
Small
Cam Lock
Hex Wrench
19 pcs. (+4 extra)
1 pc.
For assembly also need the following : 88 5516 992
Tools required for assembly : Phillips screwdriver
F.
Foot Rest
1 pc.
G.
Foot Rest Support
2 pcs.
M4x16
Wood Screw (short)
Cam Lock Screw
8 pcs. (+1 extra)
19 pcs. (+2 extra)
M4x25
Wood Screw (long)
for drawer side
8 pcs. (+1 extra)
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
B.
Middle Panel
1 pc.
H.
Middle Shelf
1 pc.
M4x25
M
Magnet
t
Machine Screw
1 pc.
3 pcs.
Adjustable Pin
12 pcs. (+1 extra)
Tools recommended for assembly : Leve
C.
C
Shelf
1 pc.
el
D
D.
Shelf
2 pcs.
Knob
1 pc.
Pull Handle
1 pc.
l
