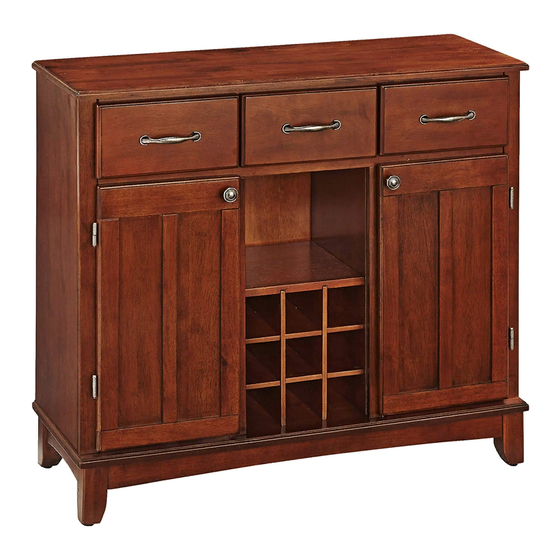

Buffet
Hide thumbs

Advertisement

Table of Contents

IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

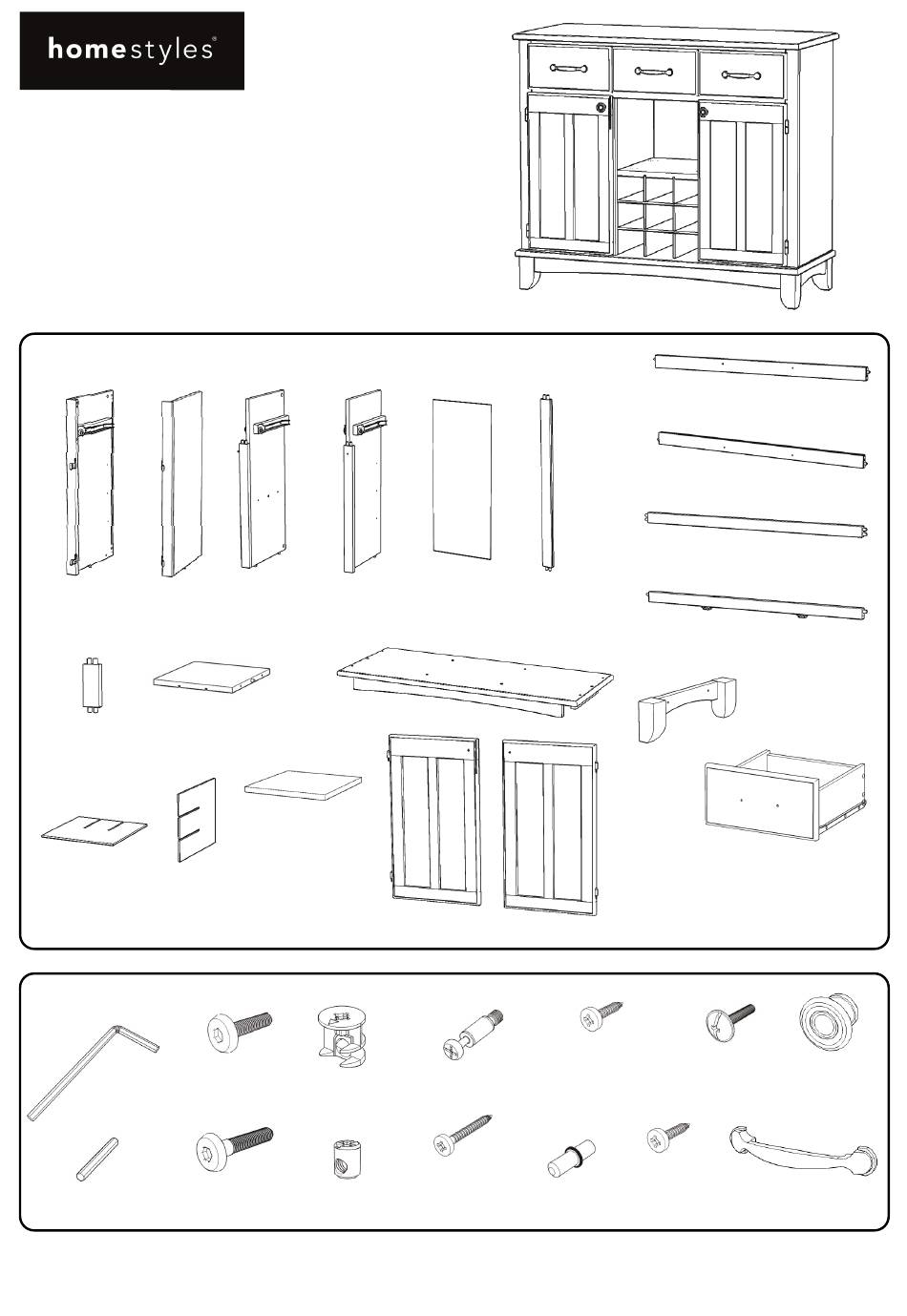

Part List
A.
B.
Side Panel
Side Panel
1 pc.
1 pc.
K.
L.
Front Upright
Fixed Shelf
2 pcs.
1 pc.
O.
P.
Wine Grid
Wine Grid
2 pcs.
2 pcs.
Hardware List
M6x35
Head Cap Bolt
4 pcs. (+1 extra)
Hex Wrench
1 pc.
M6x50
Small Hex Wrench
Head Cap Bolt (long)
8 pcs. (+1 extra)
1 pc.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 5100 006
Buffet
C.
D.
Middle Panel
Middle Panel
1 pc.
1 pc.
M.
Base
1 pc.
Q.
Shelf
2 pcs.
R.
Door
1 pc.
Cam Lock
14 pcs. (+2 extra)
Cross Dowel
8 pcs. (+1 extra)
E.
F.
Back Panel
Back Upright
3 pcs.
2 pcs.
M3.5x13
Cam Lock Screw
Wood Screw (short)
14 pcs. (+1 extra)
12 pcs. (+1 extra)
M3.5x25
Adjustable Pin
Wood Screw (long)
8 pcs. (+2 extra)
24 pcs. (+1 extra)
888-680-7460, 877-831-0319
G.
Back Stretcher
1 pc.
H.
Back Stretcher
1 pc.
I.
Front Stretcher
1 pc.
J.
Front Stretcher
1 pc.
N.
Leg
2 pcs.
T.
Drawer
3 pcs.
S.
Door
Refer to later page(s) of these
1 pc.
instructions for drawer assembly.
M4x25
Machine Screw
8 pcs.
M3.5x16
Wood Screw
Pull Handle
for Back Panel
3 pcs.
12 pcs. (+1 extra)
Knob
2 pcs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 88 5100 006 and is the answer not in the manual?

Questions and answers

Related Manuals for Home Styles 88 5100 006

Summary of Contents for Home Styles 88 5100 006

  • Page 1 8 pcs. (+2 extra) 3 pcs. 1 pc. 8 pcs. (+1 extra) 24 pcs. (+1 extra) 12 pcs. (+1 extra) Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...

  • Page 2: Table Of Contents

    Assembly Instructions 2/8 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.

  • Page 3: Step

    Assembly Instructions 3/8 STEP 3 Attach Back Stretcher (H) to unit with Cross Dowels and Head Cap Bolts (long). (See Figure 3) Attach Back Uprights (F) to Back Stretcher (H). Slide Back Panels (E) into place. Head Cap Bolt (long) Cross Dowel Cross Dowel Head Cap Bolt (long)

  • Page 4: Assembly Instructions

    Assembly Instructions 4/8 Cam Lock STEP 6 Attach Side Panels (A) and (B) to unit with Cam Locks. Cam Lock Cross Dowel STEP 7 Attach Base (M) to unit with Cross Dowels and Head Cap Bolts (long). Head Cap Bolt Attach Legs (N) to Base (M) with Head Cap Bolts.

  • Page 5: Cam Lock

    Assembly Instructions 5/8 STEP 9 Turn unit to its’ upright position. Insert Adjustable Pins into side panels and middle panels at desired level. Place Shelves (Q) into position. Attach Doors (R) and (S) to unit by sliding door lift hinges into side panel lift hinges.
  • Page 6 Assembly Instructions 6/8 Drawer (T) Wood Screw (long) Bottom STEP 11 Attach Drawer Front (T1) and Drawer Back (T2) to Drawer Side (T3) with Wood Screws (long). Attach Drawer Side (T4) to unit with Wood Screws (long). Roller at back Wood Screw (short) STEP 12 Slide Drawer Bottom (T5) into the grooves...

  • Page 7: Figure

    Assembly Instructions 7/8 STEP 14 Slide Drawers (T) into position. Slide Wine Grids (P) into the grooves of Fixed Shelf (L). Slide Wine Grids (O) into unit. Wood Screw for Back Panel STEP 15 Level unit by adjusting the adjustable levelers on bottom of unit.

  • Page 8: Step

    Assembly Instructions 8/8 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 16 Anchor in wall Wall Screw Pre-drilled hole Bracket Place unit at desired location. on wall at top of unit 3/8”...

  • Page 9: Step

    Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
