Assembly Instructions
Assembly Instructions
Assembly Instructions
Assembly Instructions
To purchase parts or accessories, please contact us at
www.spectrumfurniture.com
1-800-235-1262
Thank you for purchasing Spectrum products!
Before you begin, please make sure all parts and proper quanti-
ties are included. Any parts damaged during shipment must be
reported within 15 days of receipt. To report information regarding
damages or if you have any questions, please call 1-800-235-1262.
(1) 0111445
Worksurface
(1) 0111446
Modesty Panel
(1) 0111447
Leg

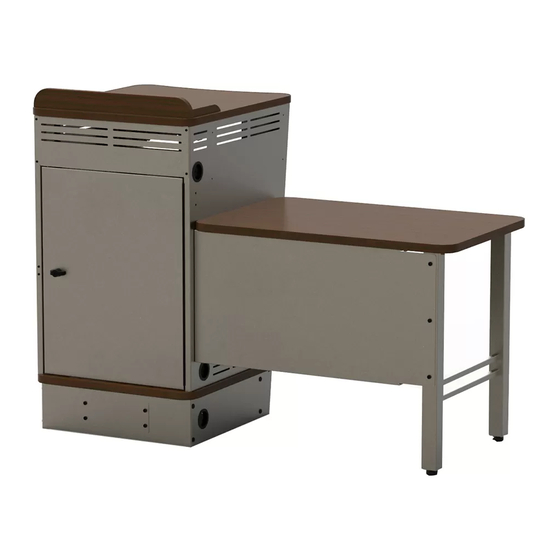

#55410TW Inspiration Lectern Side Table
#55410TW Inspiration Lectern Side Table
Parts Bag
Parts Bag
(2) 0105662
(3) 052901
5/16-18 Stem
8-32 x 3/8"
Caster
PHMS
(4) 026073
#8 x 3/4" PHSM
screw
(1) 0111449
Unit-to-Unit Bracket
(1) 0111450
Backer Plate
(17) 026064
1/4-20 x 5/8"
PHMS
(1) 025069
Caster/Glide
Wrench
55410TW
Inspiration Lectern Side Table
Inspiration Lectern Side Table
#55410TW - w/ casters (mobile lectern)
#55410TW - w/ casters (mobile lectern)
#55409TK - w/ glides (toe kick lectern)
#55409TK - w/ glides (toe kick lectern)
(1) 0111472
Leg
#55409TK Inspiration Lectern Side Table
#55409TK Inspiration Lectern Side Table
Parts Bag
Parts Bag
(2) 037779
(3) 052901
5/16-18 x 1
8-32 x 3/8"
Glide
PHMS
(1) 025069
(4) 026073
#8 x 3/4" PHSM
Caster/Glide
screw
Wrench
55409TK
Tools Required
Phillips Screwdriver
(17) 026064
1/4-20 x 5/8"
PHMS
0111252 Page 1 of 4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Spectrum Industries 55410TW
Summary of Contents for Spectrum Industries 55410TW
- Page 1 Inspiration Lectern Side Table (1) 0111445 (1) 0111449 Worksurface Unit-to-Unit Bracket #55410TW - w/ casters (mobile lectern) #55410TW - w/ casters (mobile lectern) #55409TK - w/ glides (toe kick lectern) #55409TK - w/ glides (toe kick lectern) Tools Required Phillips Screwdriver...
- Page 2 1. Attach Unit-to-Unit Bracket to Lectern 1. Attach Unit-to-Unit Bracket to Lectern The table is symmetrical and can be mounted on either side of the lectern. Determine which side the table will be mounted. Attach the unit-to-unit bracket and the backer plate to the left or right side panel with (3) 1/4-20 x 5/8”...
- Page 3 2. Assemble Table 2. Assemble Table Place the worksurface face down onto a non-abrasive surface. Attach the leg as shown with (8) 1/4-20 x 5/8” PHM screws. Figure 2A. Tighten securely. Attach the (2) casters (or glides for 55409) to the bottom of the leg and tighten securely. Attach the modesty panel to the worksurface with (4) #8 x 3/4”...
- Page 4 3. Attach Table to Lectern 3. Attach Table to Lectern If your Inspiration lectern is the mobile version, lock all four casters. Set the edge of the assembled table onto the previously installed unit-to-unit bracket. Figure 3A. Align the bracket and worksurface mounting holes and attach with (3) 1/4-20 x 5/8” PHM screws (fi nger-tight only). Align the modesty panel and lectern side panel mounting holes and attach with (3) 8-32 x 3/8”...
