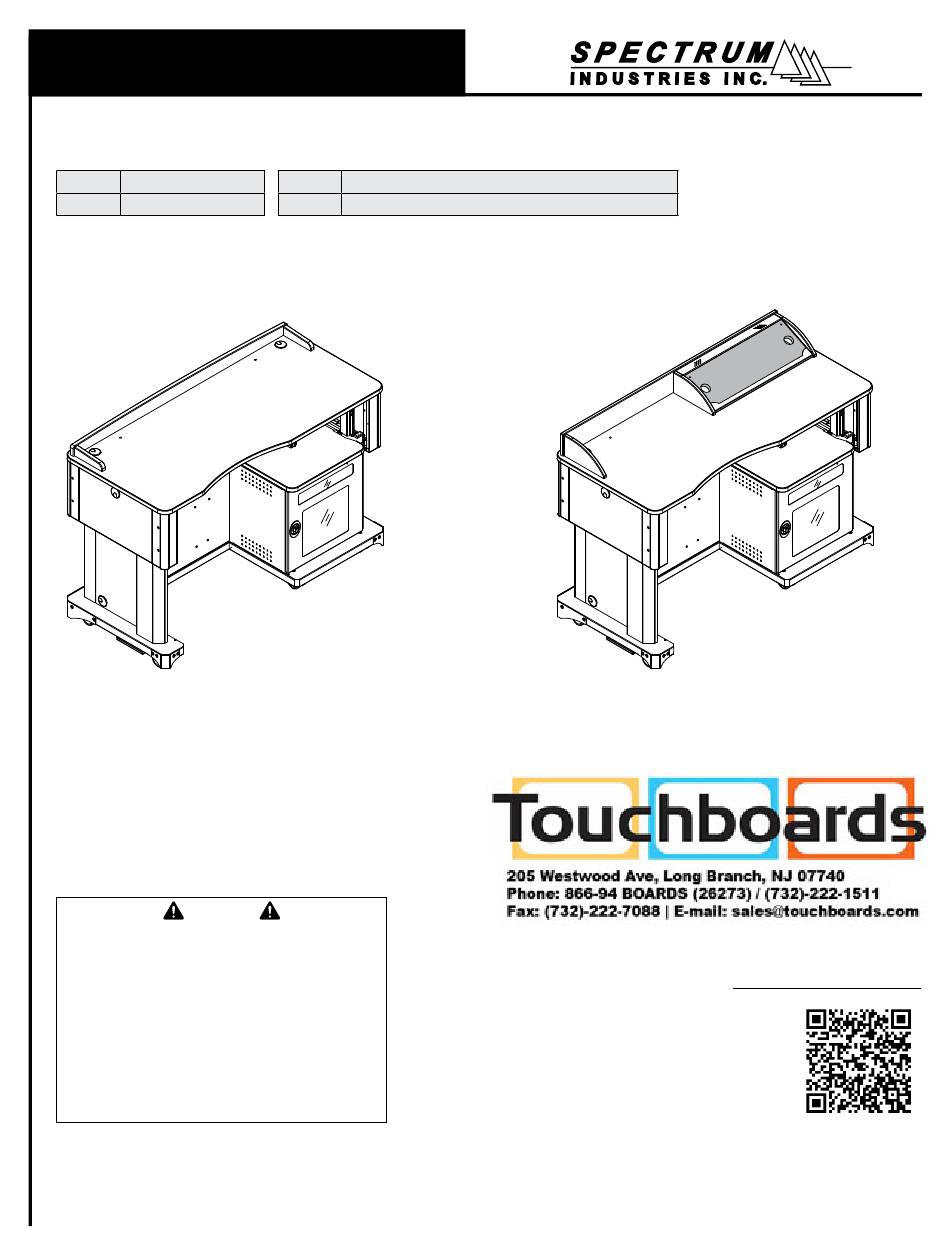

Owner's Manual
Freedom Lectern XRS
55288
with left-hand rack rail
55287
with right-hand rack rail
Freedom Lectern XRS
Important
Before using this product:
• Read this manual
• Comply with all safety and operating instructions
• Ensure all parts and correct quantities are included
Any parts damaged during shipment must be reported
within 15 days of receipt. To report information regard-
ing missing parts or damage, to purchase parts or
accessories, or if you have any questions, please
contact us.
Thank you for purchasing Spectrum products!
Spectrum Industries, Inc
925 First Avenue, Chippewa Falls, WI 54729 USA
800 235 1262
715 723 6750
www.spectrumfurniture.com
™
55286
with left-hand rack rail and Overbridge Control Console
55285
with right-hand rack rail and Overbridge Control Console
55287
™
™
Freedom Lectern XRS with OCC
55285
shown with optional insert panel
(shaded)
Spectrum product page:
http://bit.ly/FreedomLecternXRS
0116302R2 Page 1 of 18
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Spectrum Industries Freedom Lectern XRS 55288
Summary of Contents for Spectrum Industries Freedom Lectern XRS 55288
- Page 1 Thank you for purchasing Spectrum products! Spectrum Industries, Inc 925 First Avenue, Chippewa Falls, WI 54729 USA 800 235 1262 715 723 6750 www.spectrumfurniture.com...
- Page 2 If servicing is necessary, adults or with adult supervision. please contact Spectrum Industries for assistance. Warning - Relocating audio and/or video equipment to furniture not specifi cally designed to support audio and/or video equipment may result in death or serious injury due to the furnishing collapsing or over turning onto a child.
-
Page 3: Setup And Operation
Setup and Operation Unloading lectern Note: Upon receiving lectern, inspect packaging for damage. To report informa- tion regarding damages, please call 1-800-235-1262 within 15 days of receipt. utility knife 1. Cut and remove banding using a utility knife, scissor, or other cutting tool. 2. -
Page 4: Initial Setup
Lift mechanism initial setup, operation, and reset procedure Preparation: control pad • Read all instructions before doing the set-up or reset procedures. • Make sure lectern is plugged-in using 15-foot, 15-amp power cord located on lower/audience-side of side panel. • Close cabinet door. Damage may occur to cabinet door if left open during worksurface movement. •... -
Page 5: Cord Management
Audience-side panel removal / replacement 4mm hex When the worksurface is raised to the highest position, the two audience-side panels can be removed to access the wrench components inside the lectern such as the actuators, control box, connections, safety limit switch, and power strip. To remove panels: To replace the panels: 1. - Page 6 Quick-release door hinge operation To remove door: Open door wide enough to be able to access the quick-release hinge. Support door with one hand. With other hand, push-down on the quick-release hinge lever until the upper hinge pin clears the upper hinge pin hole. Figure 5A. Hold the quick-release hinge lever down while tipping the top of the door away from the lectern.
- Page 7 Overbridge insert panel (overbridge lecterns only) 4mm hex Drill wrench Note: The insert panel shown (shaded) is not included with the lectern or over- bridge. This option needs to be ordered separately to complete the overbridge. Measuring Drill bit device 1.
- Page 8 Freedom Lectern XRS overbridge insert panel blank (flat view) 2” grommet 2” grommet max cutout area Figure 6B ™ Note: The Overbridge Control Console has been designed for many of the currently available con- trollers on the market, however, modified cutouts should be reviewed by Spectrum to ensure clear- ance of brackets, keyboard slides, or other objects under the worksurface.
-
Page 9: Wiring Diagram
Wiring Diagram up / down buttons to wall outlet actuator actuator actuator Figure 7 control box actuator plugs Note: When the worksurface is extend- ed, the two rear panels can be removed to access this section of the lectern. Figure 8 0116302R2 Page 9 of 18... - Page 10 Caster operation 1. To lock the caster rotation, press the brake lever. Figure 9. brake lever 2. To resume operation, lift up on brake lever. Figure 9 Moving and parking the lectern • Before moving, unplug and secure all power cords. •...
- Page 11 Options Note: The two existing 11RU rack rails in the rack cabinet must be removed and used in the slide-in rack cube. The cube has front and rear rack rails (11RU available per set) and polyethylene slides on the bottom for easy movement. Attachment to the rack cabinet is not required.
- Page 12 Custom-cut Logo Panel Overbridge Insert Panel (shown on audience-side) for overbridge version only-contact Spectrum to specify cutout 35.25”W x 11”H size(s) and position(s)-overbridge not available separately 55303 (includes two 2” grommets with covers) 96504 - blank panel 96504mod - panel with cutout(s) Flip-up Shelf Pull-out Worksurface Tray 23”W x 27.375”D...
- Page 13 Note: The 99037 cord reel can be mounted on the rack cabinet side, but the 55313 rack cube cannot be used. Universal Cord Reel Kit Note: When installed, the cord 15’ [457.2 cm] retractable, 12 AWG, with reel takes up rack units from breaker, includes universal mounting bracket the bottom of the rack rail.
-
Page 14: Rack-Mount Accessories
Rack-mount accessories Note: Rack-mount accessories with a depth greater than 21.625”D will not fit inside the Freedom Lectern XRS. Rack-mount accessories with a depth greater than 19.5”D will not fit in the optional 55313 rack cube. Check the dimensions of all equipment before installation. The following Spectrum rack-mount accessories will not fit in the optional rack cube: 97517 - LT-4 Laptop Storage Unit 97503 - Pull-out Shelf (3RU) - Page 15 Freedom XRS Troubleshooting Guide Symptom Problem Solution Loss of power Be sure control box is plugged into a live circuit. Make sure all electrical connections are securely plugged into the control box. See Loose electrical connections wiring diagram on p.9 for reference. Object encountered between 1.
-
Page 16: Safety Information
Electric leg information Warning! Only for EU markets • This appliance can be used by children aged from 8 years and above and persons Failure to comply with these instructions may result in accidents involving serious personal injury. with reduced physical, sensory or mental capabilities or lack of experience and Failing to follow these instructions can result in the product being damaged or being destroyed. - Page 17 Misc. on the DESKLINE® DL5/DL6 system Electrical connection of the DL5/DL6 system This system is a DESKLINE system developed for desks and for indoor use in offi ces. Do not The DESKLINE® DL5/DL6 system is to be connected as shown on fi gure 4. Each DL5/ use it in industrial kitchens or in other enviroments that have to be cleaned with aggressive DL6 is to be connected to the sockets on the control box by means of the motor cables, detergents.
-
Page 18: Warranty
Warranty WE WILL MAKE IT RIGHT FOR YOU! Spectrum is committed to provide complete customer satisfaction. Each of our products is manufactured from the best materials available and each product is stringently monitored throughout the production process through our P.A.C.E. program (Product Assurance to meet Customer Expectations). We expressly warrant that Spectrum products will be of good quality and workmanship and free from defect for the period set out in the warranty table below from the date of delivery.
