Thank you for purchasing Spectrum products!
Before you begin, please make sure all parts and proper quanti-
ties are included. Any parts damaged during shipment must be
reported within 15 days of receipt. To report information regarding
damages or if you have any questions, please call 1-800-235-1262.
(4) 0110407

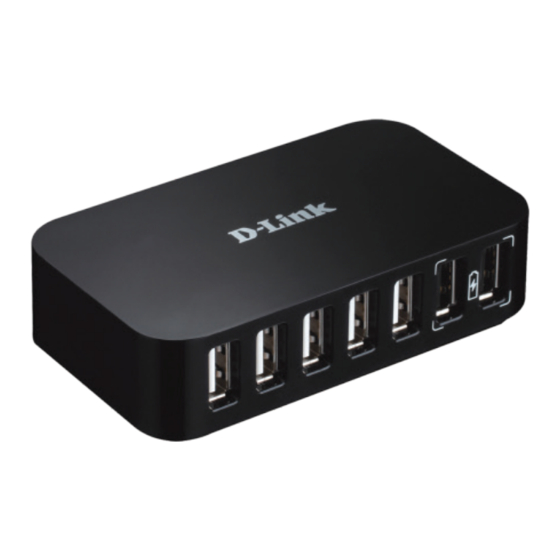

7-port USB hubs
(1) 0110564
cord wrap bracket
(1) 0110565
shelf

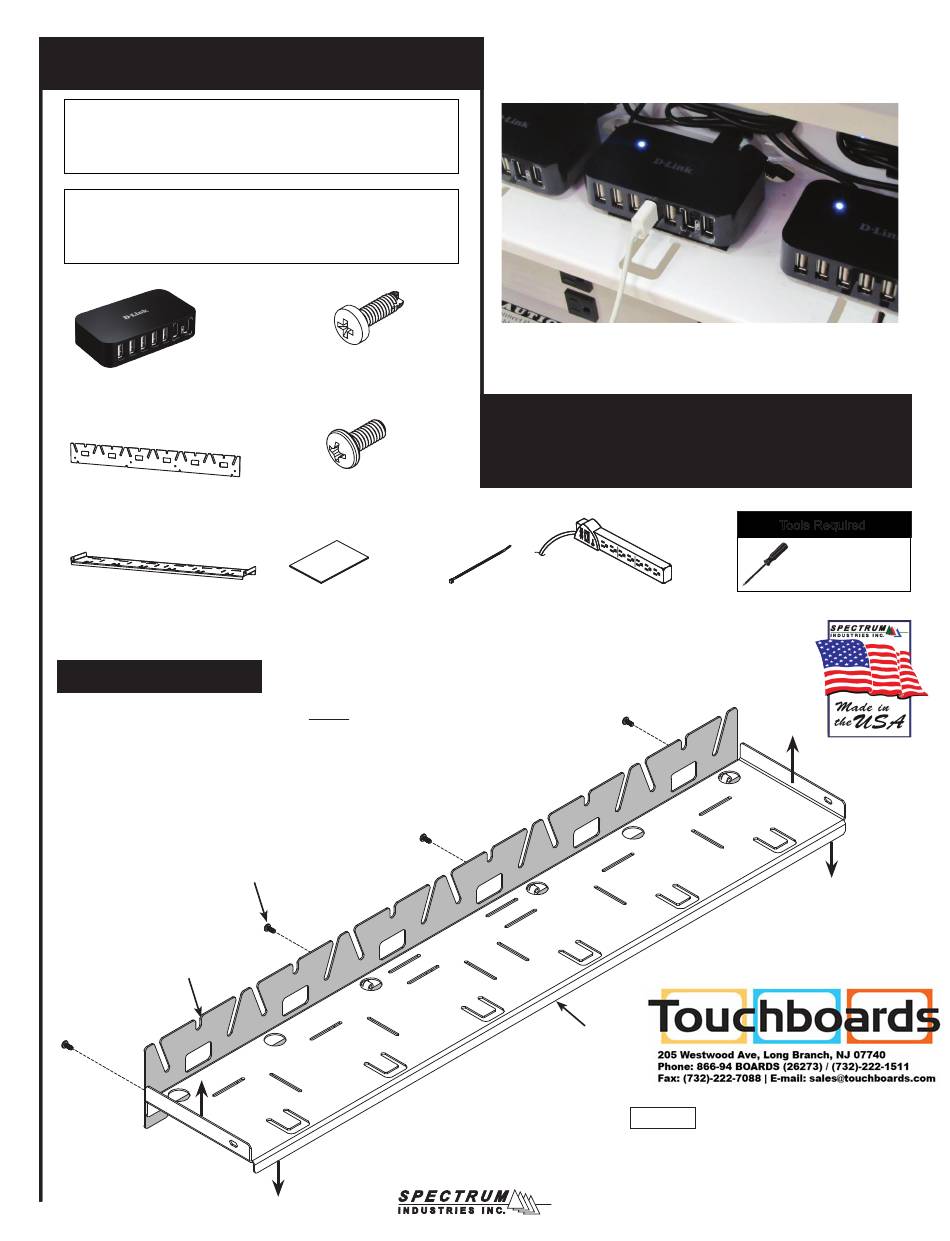

1. Assemble Shelf
A.
Orient the shelf and cord wrap bracket exactly as shown. Note orientation of shelf bends
(bends on ends of shelf will face the slotted-side of the cord wrap bracket.) Figure 1.
B.
Align and attach the cord wrap bracket to the shelf with (4) 8-32 x 3/8" PHM screws.
C.
Tighten screws securely.
8-32 x 3/8" PHMS
(4) req'd
cord wrap
bracket
(6) 0100167
8-32 x 1/2" PH thread
cutting screw
(4) 052901
8-32 x 3/8" PHMS
(5) 0110254-5
(15) 0102376
3" x 2" self-adhesive
11" zip tie
Velcro
pads
®
InTouch 20 Shelf w/ 4
Synchronizing USB Hubs
55449
(1) 052741
7-outlet auxiliary
power strip
shelf
Figure 1
Tools Required
Phillips Screwdriver
0111414R2 Page 1 of 8
Advertisement
Table of Contents
Related Manuals for Spectrum Industries InTouch 55449
Summary of Contents for Spectrum Industries InTouch 55449
- Page 1 Assembly Instructions Assembly Instructions To purchase parts or accessories, please contact us at www.spectrumfurniture.com 1-800-235-1262 Thank you for purchasing Spectrum products! Before you begin, please make sure all parts and proper quanti- ties are included. Any parts damaged during shipment must be reported within 15 days of receipt.
- Page 2 2. Install USB Hubs to Shelf Using the narrow slots as guides, apply (4) 3” x 2” adhesive Velcro ® pads (hook side) to the shelf as shown. Figure 2A. Apply a 3” x 2” Velcro pad (loop side) to the bottom of each USB hub. ®...
- Page 3 3. Route USB Hub Wiring on Shelf USB hub #4 (feeder) cord to worksurface Route the USB cords as shown in the Figure 3A USB hub wiring diagram. computer USB cords can be secured to the cord wrap bracket using the cord manage- ment slots Figure 3B or bundled behind each hub with a zip tie.
- Page 4 bundled USB cord wrap route cords cords bracket through holes Shelf Top View Figure 3C Figure 3D Rear View of Shelf cord opening for USB or cord opening for Figure 3E power plug USB or power plug Shelf Bottom View feeder hub Figure 3F 0111414R2 Page 4 of 8...
- Page 5 4. Attach Shelf to Cart Open the instructor-side doors on the cart (outlet-side) install (4) 8-32 x 1/2” PH thread cutting screws in the divider panel but do not tighten completely. Figure 4. Set the shelf assembly onto the 4 screws as shown. Tipping the shelf slightly will help get it into the cart. Secure the shelf to the side panels using the remaining (2) 8-32 x 1/2”...
- Page 6 5. Route Cords On the instructor-side of the cart (outlet-side) route the USB cord from the feeder hub under the shelf up the inside wall of the cart to the worksurface. Figure 5A. The cord can be secured using the plastic cord clip inside the USB cord from cart.
- Page 7 USB Hub Start-up Make sure all wires are connected as shown in Figure 3A. Each hub MUST be plugged into the auxiliary power strip at the bottom of the cart. Make sure the tablet USB cables are plugged in at the tablets and the hubs. Make sure power strip is on, and plugged into either the cord reel or a live wall circuit.
- Page 8 Specifications Minimum System Requirements • Computer with Windows 7, Windows Vista , Windows XP SP2, ® ® ® Windows 2000 SP4 ® • Pentium 233-MHz or faster with 32MB RAM • Computer with USB 1.1 Port USB Hub Specs Standards •...
