Owner's Manual
Media Director V2 Lectern
55260
Standard Media Director V2
55259
with Overbridge Control Console
Important
Before using this product:
• Read this manual
• Comply with all safety and operating instructions
• Ensure all parts and correct quantities are included
Any parts damaged during shipment must be reported
within 15 days of receipt. To report information regard-
ing missing parts or damage, to purchase parts or
accessories, or if you have any questions, please
contact us.
Thank you for purchasing Spectrum products!
Spectrum Industries, Inc
925 First Avenue, Chippewa Falls, WI 54729 USA
800 235 1262
715 723 6750
www.spectrumfurniture.com
™
™
Standard Media Director V2
with Twin-Wheel casters
55260TW
Media Director V2
with Overbridge Control Console
and Twin-Wheel casters
55259TW

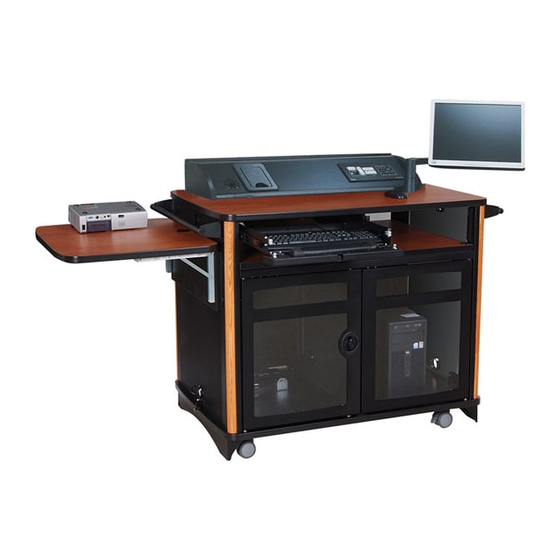

shown with optional insert panel (shaded)
0103148R8 Page 1 of 11
Advertisement
Related Manuals for Spectrum Industries Media Director V2 Lectern 55260
Summary of Contents for Spectrum Industries Media Director V2 Lectern 55260
- Page 1 Thank you for purchasing Spectrum products! Spectrum Industries, Inc 925 First Avenue, Chippewa Falls, WI 54729 USA 800 235 1262 715 723 6750 www.spectrumfurniture.com...
-
Page 2: Assembly & Set-Up
If servicing is necessary, please contact Spectrum Industries for assistance. Warning - Relocating audio and/or video equipment to furniture not specifi cally designed to support audio and/or video equipment may result in death or serious injury due to the furnishing collapsing or over turning onto a child. - Page 3 Quick-release door hinge operation The front and rear doors can easily be removed for equipment installation. To remove the door, pull down the quick-release lever as shown in Figure 2A while lifting out the door. To re-attach the door, pull down the quick-release lever while inserting the door hinge pins into the hinge pin holes. Figure 2. Release the lever when the upper hinge pin is aligned with the upper hinge pin hole-this will secure the door.
- Page 4 Overbridge insert panel (overbridge models only) Note: The insert panel shown (shaded) is not included with the lectern or over- bridge. This option needs to be ordered separately to complete the overbridge. Drill Drill bit Jigsaw or Router 1. To remove the overbridge insert panel, remove the (2) 1/4-20 x 35mm JC bolts with a 4mm hex wrench and lift out the panel.
- Page 5 Media Director V2 overbridge panel blank (flat view) 2” grommet 2” grommet max cutout area Figure 3B ™ Note: The Overbridge Control Console has been designed for many of the currently available con- trollers on the market, however, modified cutouts should be reviewed by Spectrum to ensure clear- ance of brackets, keyboard slides, or other objects under the worksurface.
- Page 6 Floor anchoring (Toe Kick versions only) 4mm Hex Drill wrench 1. If your Media Director is equipped with a toe kick, and you wish to attach it to the floor, the toe-kick (included) will need to be detached from the lectern. To detach, open the doors and remove the (4) 1/4-20 x 40mm JC bolts (one on each corner) from inside the lectern.
- Page 7 Audience side panel removal 4mm Hex wrench 1. To access the upper keyboard / rack rail area from the back, remove (included) the (4) JC bolts and remove the audience side panel. Figure 5. 2. Replace the panel and tighten the JC bolts securely. JC bolt Audience side panel...
-
Page 8: Door Stop Adjustment
Door stop adjustment Phillips screwdriver If necessary, the upper and lower door stops can be repositioned to adjust the closed position of the doors and lock rods. 1. To reposition the stop, loosen the Phillips screws slightly with a screwdriver. Figure 7. 2. - Page 9 Accessories the lectern. Both can be mounted on the same side, but the shelf needs to be mounted in a lower position to provide enough clearance for the handle. Flip-Up Shelf Steel Handle (mounts on left or right side, max (mounts on left or right two per unit) includes 2”...
- Page 10 Overbridge Insert Panel required for overbridge version-contact Spectrum to specify cutout size(s) and position(s) Security Panel overbridge not available separately 55262 96507 - blank panel 96507mod - panel with cutout(s) Custom-Cut Logo Panel Cove Power Module Kit Non-Slip CPU Pad (audience-side) with mounting plate 11”W x 23”D...
-
Page 11: Warranty
Warranty WE WILL MAKE IT RIGHT FOR YOU! Spectrum is committed to provide complete customer satisfaction. Each of our products is manufactured from the best materials available and each product is stringently monitored throughout the production process through our P.A.C.E. program (Product Assurance to meet Customer Expectations). We expressly warrant that Spectrum products will be of good quality and workmanship and free from defect for the period set out in the warranty table below from the date of delivery.
