Spectrum Industries 37250 Assembly Instructions

Assembly Instructions
Important
Before you begin, please make sure all parts and proper quantities
are included. Any parts damaged during shipment must be reported
within 15 days of receipt. To report information regarding damage, to
purchase parts or accessories, or if you have any questions, please
contact us at:
www.spectrumfurniture.com
715-723-6750, 800-235-1262
Thank you for purchasing Spectrum products!

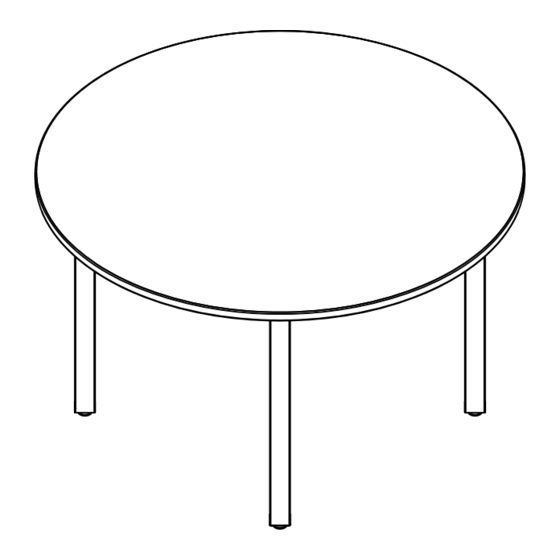

48" Round table - 37250
(4) 037779
5/16-18 glide
(16) 026064
1/4-20 x 5/8" PHMS
(1) 025069
glide wrench
Table Assembly
1. Place worksurface face-down onto a non-abrasive surface.
2. Attach the legs to the worksurface using 1/4-20 x 5/8" PHM
screws and tighten securely. Figure 1.
3. Attach the glides to the legs. Tighten securely with glide wrench.
4. Carefully flip the table upright-this may require two people.
glides
Connecting half-round tables
1. Arrange the tables side-to-side in the preferred location.
2. Attach the unit-to-unit brackets to both table worksurfaces as shown
with 1/4-20 x 5/8" PHM screws and tighten securely. Figure 2.
24"D Half-Round table - 37250
30"D Half-Round table - 37251
(4) 037779
5/16-18 glide
(16) 026064
1/4-20 x 5/8" PHMS
(4) 0103920
1/4-20 x 1/2"
thumbscrews
(1) 025069
glide wrench
attach legs with
1/4-20 x 5/8"
PHM screws
Figure 1
48" round table
30"D half-round
37252
Flex Training Tables
37250 - 48" Round
37251 - 24"D Half-Round
37252 - 30"D Half-Round
Note: Unit-to-unit brackets are included with
straight training tables. For stability reasons,
half-round tables are designed to be connected
to adjacent tables and are not recommended
for stand-alone use. If a more temporary ar-
rangement is preferred, the easily removable
1/4-20 thumbscrews can be used on the unit-
to-unit brackets instead of Phillips screws.
Figure 2
37250
24"D half-round
37251
Phillips
screwdriver
standard
tables
unit-to-unit
brackets
half-round
table
0106685R1 Page 1 of 2
glide
wrench
