Gold's Gym PRO Series User Manual
  1. Manuals
  2. Brands
  3. Gold's Gym Manuals
  4. Fitness Equipment
  5. Pro Series
  6. User manual
Gold's Gym PRO Series User Manual

Gold's Gym PRO Series User Manual

Hide thumbs Also See for PRO Series:
Table of Contents

Advertisement

Quick Links

Model No. GGBE2564.1
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (under seat)
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete cus-
tomer satisfaction. If you have
questions, or if parts are missing,
PLEASE DO NOT CONTACT
THE STORE; please contact
Customer Care.
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-877-776-4777
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.goldsgympowerflex.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gold's Gym PRO Series

Summary of Contents for Gold's Gym PRO Series

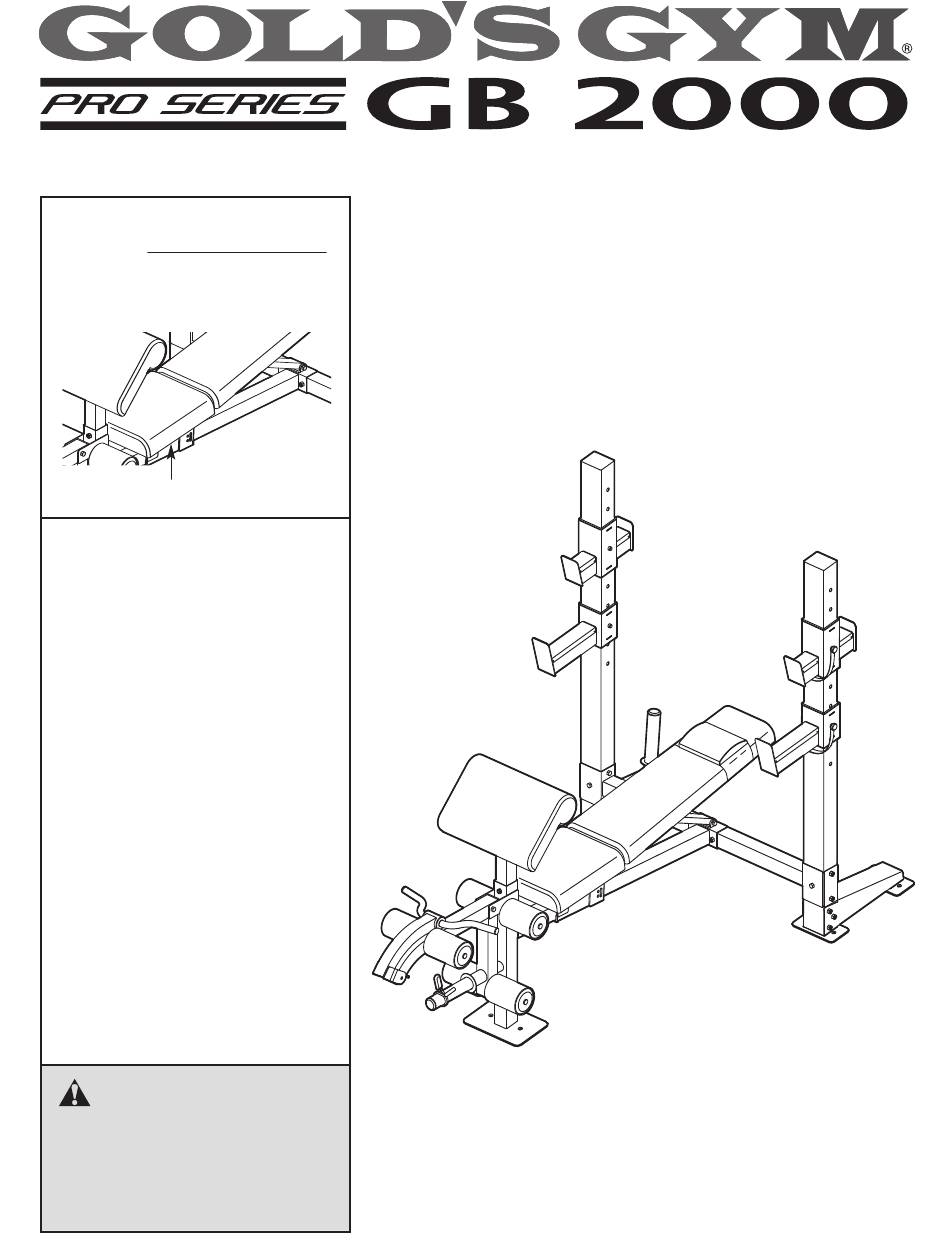

  • Page 1 Model No. GGBE2564.1 Serial No. USER’S MANUAL Write the serial number in the space above for future reference. Serial Number Decal (under seat) QUESTIONS? As a manufacturer, we are com- mitted to providing complete cus- tomer satisfaction. If you have questions, or if parts are missing, PLEASE DO NOT CONTACT THE STORE;...
