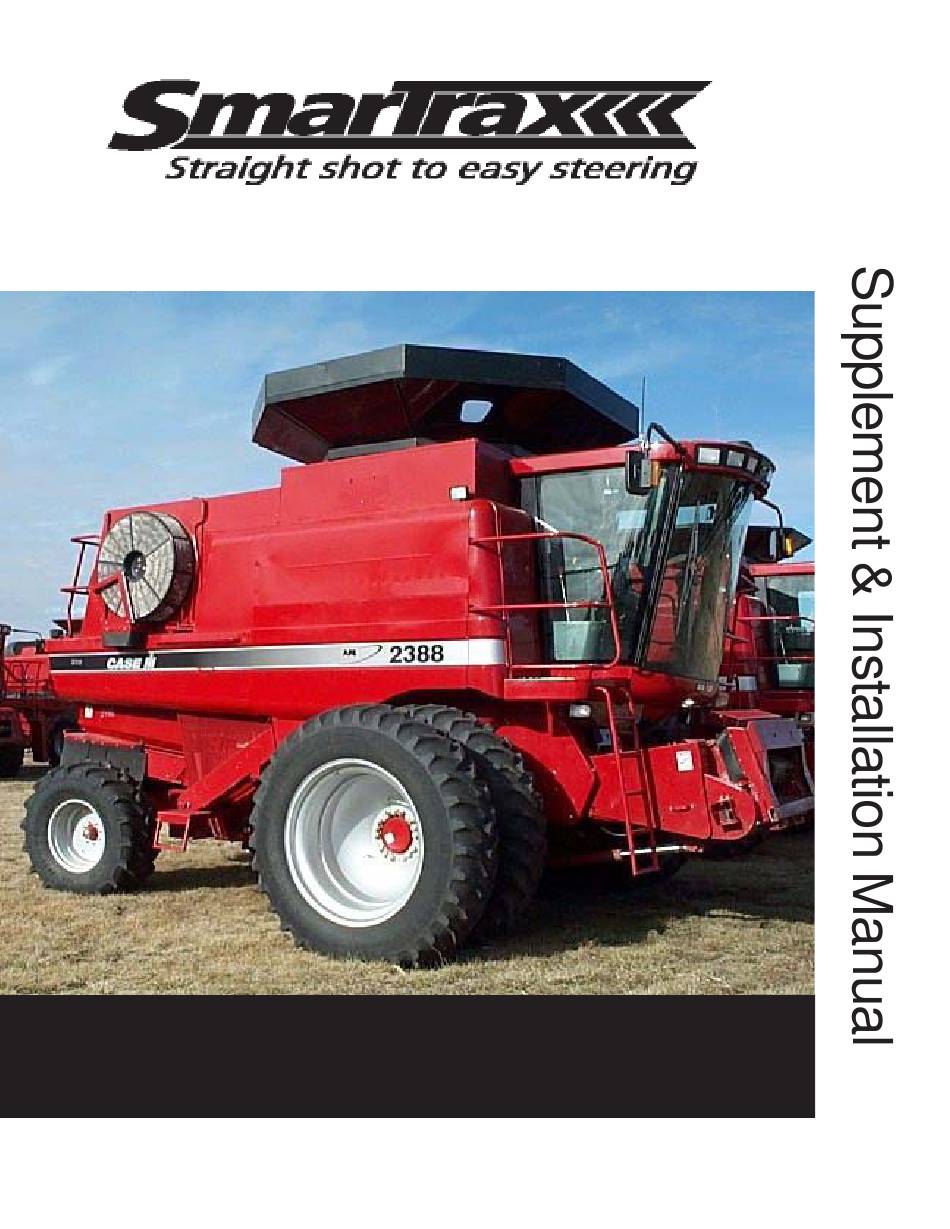

- Page 1 CaseIH 2100-2300 Series Combine...
- Page 2 GPS signal from the US Department of Defense/NAVSTAR GPS satellites, the OmniSTAR correction service or the WAAS correction service. Raven Industries accepts no responsibility for the use of the signal for other than the stated purpose. Raven Industries shall not be responsible or liable for incidental or...
- Page 3 Manual # 016-0190-068 H A P T E R NTRODUCTION Congratulations on your purchase of the Raven SmarTrax system! This system is designed to provide cutting-edge, hands-free steering of your machine via GPS coordinates.
-
Page 4: Basic Kit
CaseIH 2100-2300 Series Combine SmarTrax Installation Manual Below you will see the kit contents that you should have received with this SmarTrax kit. Basic Kit Contents CaseIH 2100-2300 Series Combine SmarTrax Kit Contents Quantity Item Description Part Number SENSOR ASSEMBLY, LINEAR STEERING 063-0181-001 POSITION PLATE, MOUNTING, UNIVERSAL HYDRAULIC,... - Page 5 Caution must be exercised. Any work carried out on the hydraulic system must be performed in accordance with the machine manufacturerer’s approved maintenance instructions. Raven Industries recommends that appropri- ate protective equipment be worn when working on the hydraulic system. Ob- jects or materials that are able to bypass the machine’s hydraulic filtration system...
- Page 6 Customer Raven Support Center by any of the following methods: Industries Via phone: 1-800-243-5435 Via mail: Raven Industries Flow Control Division 205 E. 6th St. Sioux Falls, SD 57104 Via email: fcdinfo@ravenind.com...
- Page 7 Align the proper holes on the bracket to those matching the holes in the hydraulic valve. Attach the Raven hydraulic valve to the top portion of the bracket using the two metric bolts provided. Position universal bracket and valve in location...
- Page 8 CaseIH 2100-2300 Series Combine SmarTrax Installation Manual Drill holes in support plate and attach hydraulic valve in position shown. Pressure Switch Connect pressure switch to PS port on steering assist valve.
- Page 9 Manual # 016-0190-068 H A P T E R YDRAULICS Helpful Hint: Prior to disconnecting hoses, you may wish to trace hoses and label ports on hoses to ensure correct hose gets re-connected to right ports on steering orbital. This model of combine has ports labeled R, P, T, L, and LS stamped onto face of the orbital.
- Page 10 CaseIH 2100-2300 Series Combine SmarTrax Installation Manual Route new hoses up from the steering assist valve, between cab and support plate, and then forward toward the steering orbital through the existing hole in the cab support. (This will follow existing hose routing to the orbital.) Installing the Remove the existing tank to orbital hose at the orbital and attach a Tank Port...
- Page 11 Installing the Remove the existing Load sense hose at the orbital. LS-PV Hose Remove the existing LS-PV port fitting in the Raven steering assist valve and insert the provided 7/16” O-Ring to ORFS fitting into the open port. Connect the open end of the original load sense hose to the LS-PV port on the steering assist valve.
- Page 12 CaseIH 2100-2300 Series Combine SmarTrax Installation Manual Notes:...
- Page 13 Manual # 016-0190-068 H A P T E R TEERING OSITION ENSOR NSTALLATION Mounting the Steering Position Sensor (SPS) S.P.S. Attach the Steering Position Sensor to the right hand side of the machine, in the approximate position shown. Connect non-wired end of the sensor to the tie rod of the steering linkage.
- Page 14 CaseIH 2100-2300 Series Combine SmarTrax Installation Manual Attach one end of SPS to tie rod Attach other end to rear axle assembly...
-
Page 15: Start-Up Procedures
Manual # 016-0190-068 H A P T E R TART- ROCEDURES After installing the SmarTrax on your machine, always follow these start-up procedures. Make sure the Steering Position Sensor rotates freely when turning the wheels. Turn the wheels fully from side to side numerous times to remove air from the hydraulic system. - Page 16 CaseIH 2100-2300 Series Combine SmarTrax Installation Manual Notes:...
- Page 17 Manual # 016-0190-068...
- Page 18 CaseIH 2100-2300 Series Combine SmarTrax Installation Manual...
- Page 19 RAVEN INDUSTRIES LIMITED WARRANTY WHAT IS COVERED? This warranty covers all defects in workmanship or materials in your Raven Flow Control Product under normal use, maintenance, and service. HOW LONG IS THE COVERAGE PERIOD? This warranty coverage runs for 12 months from the purchase date of your Raven Flow Control Product.
- Page 20 P.O. Box 5107 www.ravenprecision.com Sioux Falls, SD 57117-5107 fcdinfo@ravenind.com Notice: This document and the information provided are the property of Raven Industries, Inc. and may only be used as authorized by Raven Industries, Inc. All rights reserved under the copyright laws.
