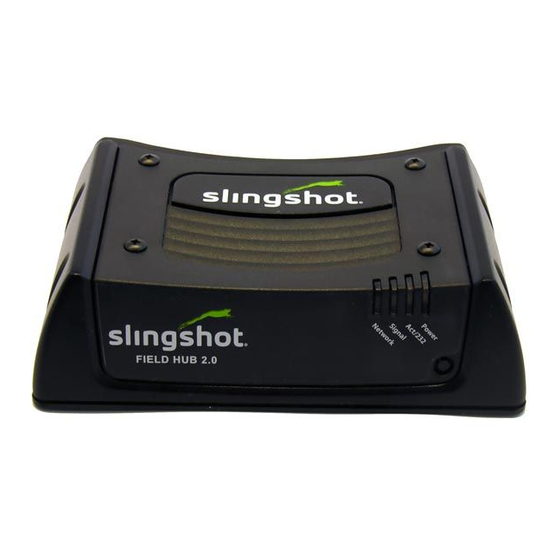

Raven SBG Slingshot Field Hub 2.0 Configuration Manual

Hide thumbs Also See for SBG Slingshot Field Hub 2.0:
Table of Contents

Advertisement

Quick Links

CONFIGURATION MANUAL
SBGuidance
Slingshot Field Hub 2.0
016-8000-045 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBG Slingshot Field Hub 2.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Raven SBG Slingshot Field Hub 2.0

Summary of Contents for Raven SBG Slingshot Field Hub 2.0

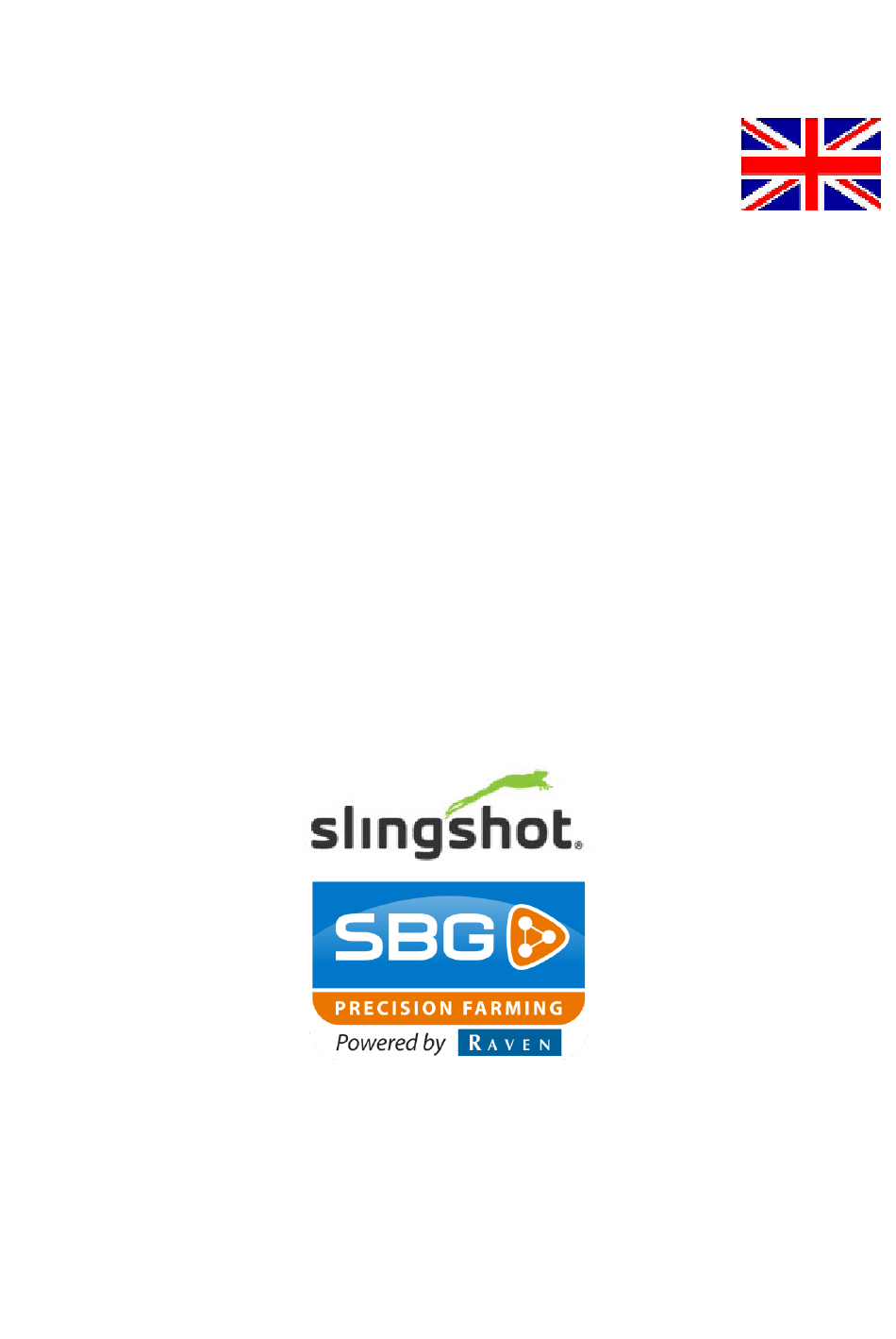

  • Page 1 CONFIGURATION MANUAL SBGuidance Slingshot Field Hub 2.0 016-8000-045 Rev. A...

  • Page 2: Table Of Contents

    Slingshot Field Hub 2.0 I V1.0 Table of Contents Sign up Slingshot Field Hub ........................4 Mounting and wiring Slingshot Field Hub ..................8 2.1. Mounting antennas ..........................8 2.2. Connections in the terminal and cable boom ................8 2.2.1. Viper 4(+) - Viper 4(+) cable boom ..................
  • Page 3 Slingshot Field Hub 2.0 I V1.0 Slingshot Field Hub 2.0-EN-V1.0 I Pag 3/16...

  • Page 4: Sign Up Slingshot Field Hub

    Slingshot Field Hub 2.0 I V1.0 1. Sign up Slingshot Field Hub The next steps have to be completed to sign up a Slingshot Field Hub in the Slingshot Portal: Open the link: https://portal.ravenSlingshot.com/ Login with username and password. When you don’t have an account, create one by using Request Account (Figure 1).
  • Page 5 Slingshot Field Hub 2.0 I V1.0 4. A new wizard (Start activation) is now open, select Field Hub Activation (Figure 3). A new wizard opens, enter the next information; (Figure 4): Modem ID/IMEI : This number is on the • Slingshot Field Hub API services : Do not select an unlock part.
  • Page 6 Slingshot Field Hub 2.0 I V1.0 CORS Network: Enter the Correction Data • Supplier. Correction Format: Choose the format of • the Correction Signal. Mount point: Choose the mount point or • stream of the network. Username: Type the username of the •...
  • Page 7 Slingshot Field Hub 2.0 I V1.0 Step 3 of the activation is to add a customer to the Slingshot Field Hub. At the top of this step is the name of the dealer, please check this before a customer is added. If the name of the dealer is correct, fill in the customer information.

  • Page 8: Mounting And Wiring Slingshot Field Hub

    Slingshot Field Hub 2.0 I V1.0 2. Mounting and wiring Slingshot Field Hub The Slingshot Field Hub is mounted on the backside of the terminal by using a standard bracket. When it is mounted, six cables need to be connected. Power, Diversity, GPS, Antenna, Ethernet and RS-232 (Figure 9).

  • Page 9: Viper 4(+) - Geostar Cable Boom Including Adapter Cable

    Slingshot Field Hub 2.0 I V1.0 2.2.2. Viper 4(+) - GeoStar cable boom including adapter cable With a Viper 4(+) on a GeoStar cable boom incl. adapter cable there is an extra cable needed to mount the serial connector from the Slingshot to the Phoenix connector Figure 12 Adapter cable (with label DiCo In) in the adapter cable (see Figure 12).

  • Page 10: Configure Field Hub

    Slingshot Field Hub 2.0 I V1.0 3. Configure Field Hub For installing the Field Hub, a SIM card is required. It is possible that password is activated on the SIM card. However, this password must be deleted/deactivated. To do this, put the SIM card in a mobile phone. The SIM card password can be deleted/deactivated in the mobile phone Figure 15 Mount the SIM card settings.
  • Page 11 Slingshot Field Hub 2.0 I V1.0 After a connection has been established, press the button with the ‘wrench’ on it to change the settings (Figure 19). The possible settings are shown in Figure 20. Select the country and the network provider from the internet signal. If the used provider is not in the list, please only fill in the APN (always needed), Username (if needed) and Password (if needed, varies per provider).
  • Page 12 Slingshot Field Hub 2.0 I V1.0 The Slingshot Field Hub is rebooting after the setup. This can take up to 4 minutes. Slingshot Field Hub 2.0-EN-V1.0 I Pag 12/16...

  • Page 13: Software Settings

    Slingshot Field Hub 2.0 I V1.0 4. Software settings Open the SBGuidance Configurator in the terminal and go to Settings > System. In the tab NTRIP, only checkmark the first two (Enabled, Initialize at startup) checkmarks, see Figure 22. Make sure that in the list of options, Slingshot Field Hub has been selected.

  • Page 14: Field Hub Startup

    Slingshot Field Hub 2.0 I V1.0 5. Field Hub startup When the terminal is started, the Field Hub is powered up automatically. The LED’s on the Field Hub (see Figure 23) are lighting/flashing. Table 1 (see next page) shows the meaning of the colours, solid or blinking per LED.
  • Page 15 Slingshot Field Hub 2.0 I V1.0 Table 1 LED statuses Slingshot Field Hub LED name LED Status Description Solid Green The Field Hub is powered on Solid green with The Field Hub has a fixed GPS signal yellow flashing every four seconds Power Solid yellow The Field Hub ignition power is off and the Field Hub will...

  • Page 16: Operating Errors In The Field

    Slingshot Field Hub 2.0 I V1.0 6. Operating errors in the field No Signal LED (flashing red); There is no cellular signal. • Check the connection and the mounting of the Laird-antennas Is the SIM-card mounted correct? Is the SIM-card active? Check at the cellular provider or check in a mobile phone.
