SPLITMUX Quad Screen Video Splitter

MOUNTING

The SPLITMUX-HD-4RT can be purchased in a 1RU case with parts and hardware for mounting in a rack as a single unit
(SPLITMUX-HD-4RT-R) or as a dual unit (SPLITMUX-HD-4RT-2R).
Whether the SPLITMUX will be mounted as a single or a double, brackets will be attached to the case to enable mounting ears or
a connector plate to be attached.
1.
Attach the ear brackets to the SPLITMUX.
SPLITMUX. Tighten the screws securely.
Note: If the ear brackets are applied to the rear, the cable management tray cannot be used.
2. If the ear brackets have been applied such that the front will face out, assemble the cable tray to the holes in the rear of the
SPLITMUX as shown below.
The holes in the brackets should line up with pre-threaded holes in the sides of the

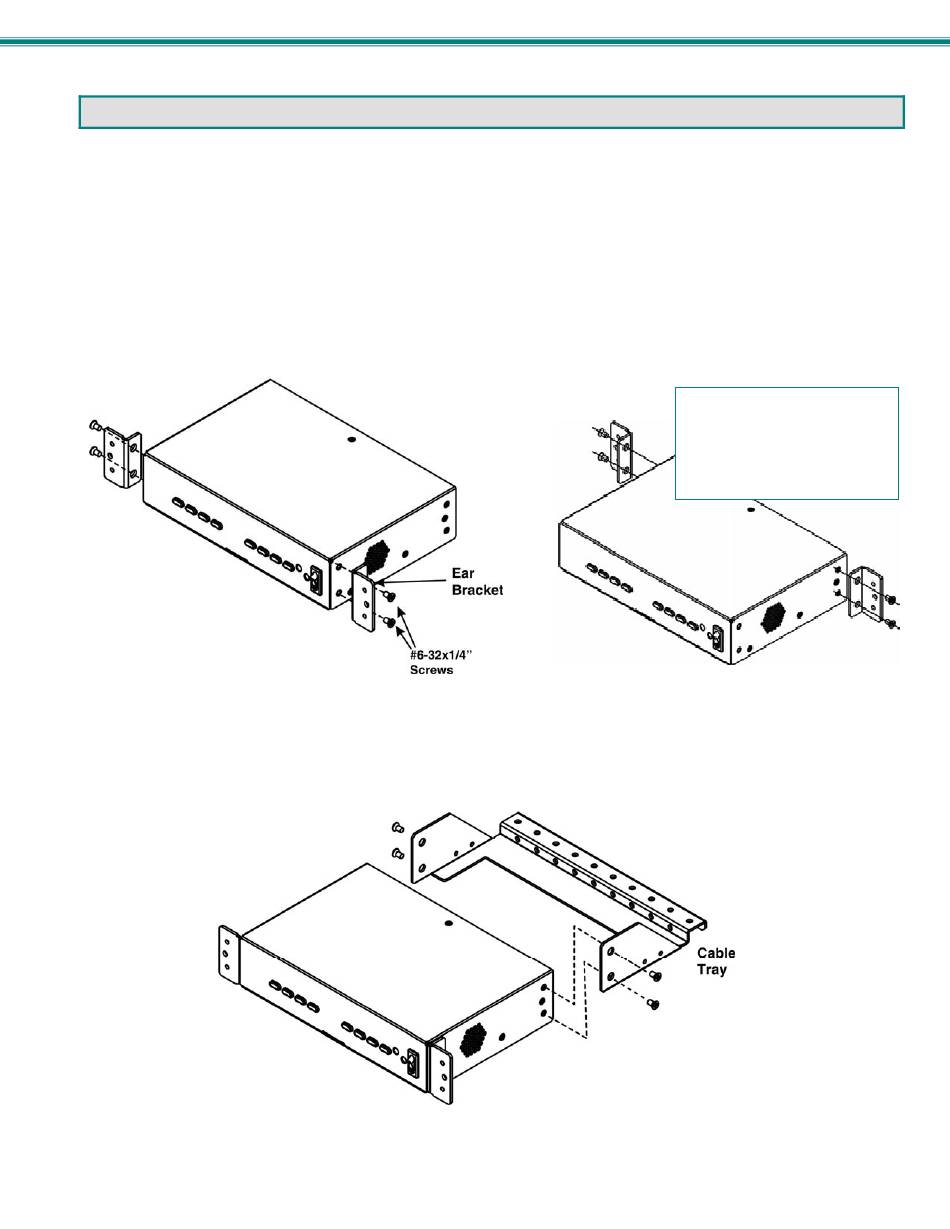

Figure 1- Attach ear brackets to front corners or rear corners.

Figure 2- Attach cable tray (if applicable)

Follow the instructions below for assembly and installation.
4
FYI: The same hole pattern is
provided at the front and rear of
the SPLITMUX, enabling the
SPLITMUX to be mounted with
the front facing out or rear
facing out.
