SPLITMUX Quad Screen Video Splitter
To control the SPLITMUX using the mouse, move the mouse from side-to-side rapidly. This motion will place the SPLITMUX in
Command Mode. While in Command Mode, all 3 status lights on the keyboard will illuminate to indicate that Command Mode is
enabled. The keyboard functions described on page 14 will be active while in Command Mode.

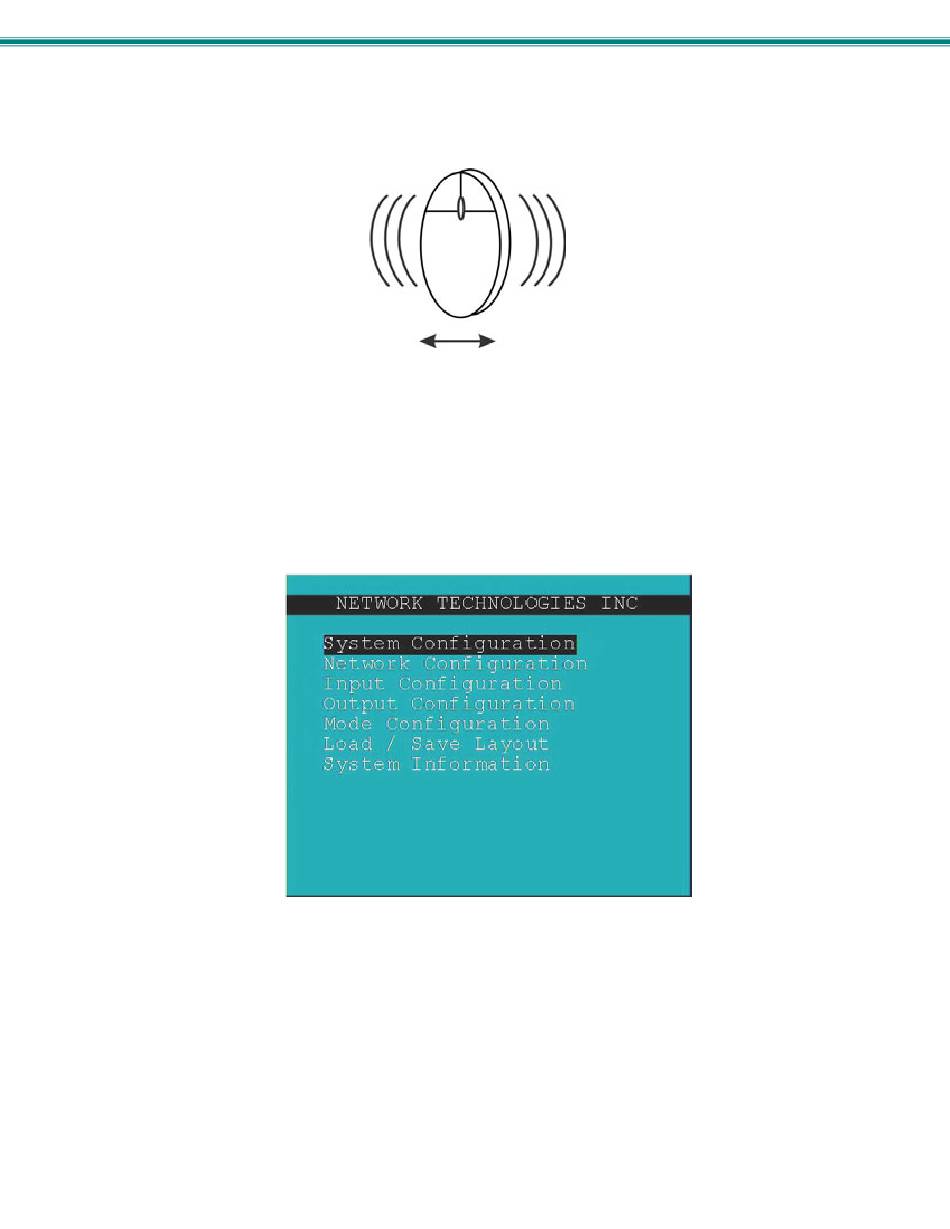

Figure 15- Shake mouse to enter Command Mode

While in Command Mode, Right-click the mouse to open the OSD menu. To exit the OSD menu, Right-click the mouse once
more.
To exit Command Mode after closing the OSD menu, either Left-click the mouse or press <Esc> on the keyboard.
For more on using the mouse to control the OSD menu, see page 57.

Figure 16- OSD Menu for the SPLITMUX

15
