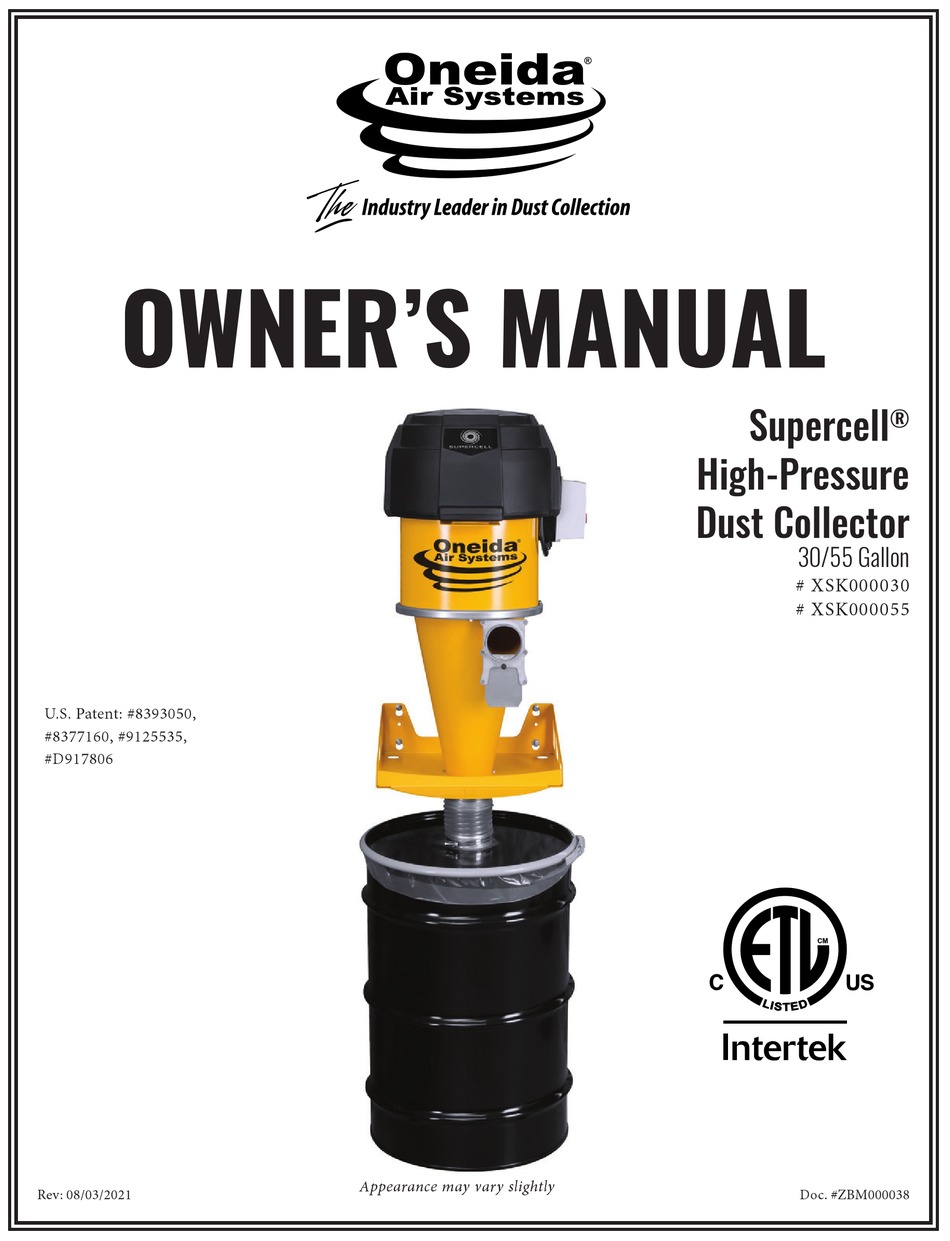

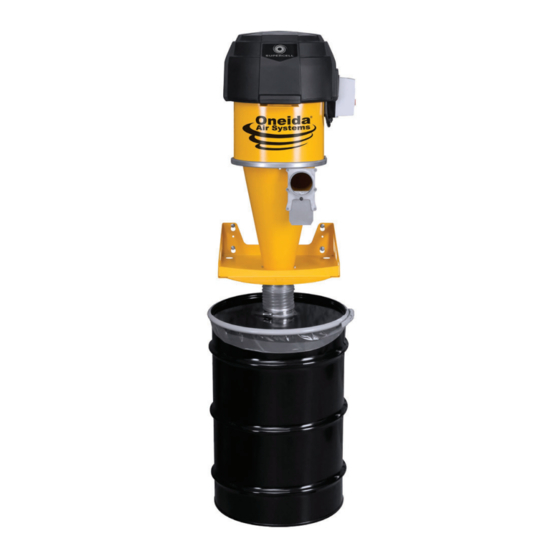

- Page 1 OWNER’S MANUAL Supercell ® High-Pressure Dust Collector 30/55 Gallon # XSK000030 # XSK000055 U.S. Patent: #8393050, #8377160, #9125535, #D917806 Appearance may vary slightly Rev: 08/03/2021 Doc. #ZBM000038...
-
Page 3: Table Of Contents
Table of Contents System Start-Up Information System Speci cations Wall Bracket Dimensions System Dimensions with 30 Gallon Drum System Dimensions with 55 Gallon Drum System Contents 30/55 Gallon Drum Maintenance Troubleshooting F.A.Q. Recommended Accessories Warranty Information Notes oneida-air.com... -
Page 4: System Start-Up Information
NFPA code 664, but other codes may apply in your jurisdiction. Consult your local Fire Marshal for help. Additional information can be found in NFPA Code Book 664. e customer assumes the responsibility for contacting their insurance underwriter regarding speci c application requirements of Oneida Air Systems... - Page 5 System Start-Up Information (Continued) explosion venting or if additional re protection and safety equipment may be required. DO NOT use this product to collect ammable dust or ammable vapors! - Fire or explosion may occur! NEVER collect sparks from a bench grinder into a wood dust collector. NEVER introduce sparks or sources of ignition into the dust collector.
-
Page 6: System Speci Cations
30 Gallon: 79-3/16"; 2,011 mm without Universal Drum Dolly 55 Gallon: 84-1/4"; 2,140 mm without Universal Drum Dolly Overall Weight 30 Gallon: 95 lbs 55 Gallon: 102 lbs e Supercell requires a 20 Amp outlet receptacle to be installed by a licensed electrician. Oneida Air Systems... -
Page 7: Wall Bracket Dimensions
Wall Bracket Dimensions Nominal dimensions shown. Dimensions subject to slight variations in manufacturing. 30 Gallon: 45-13/16" ; mm 30 Gallon with Dolly: 49-13/16" ; mm 1/2" 55 Gallon: 49-7/8"; 1267 mm 13 mm 15-1/4" 55 Gallon with Dolly: 53-7/8"; 1368 mm 388 mm 2"... -
Page 8: System Dimensions With 30 Gallon Drum
If you purchased the Universal Drum Dolly, add an additional 4" to the height of the unit. 20" Top View 508mm 23" 584 mm 24-1/4" 616 mm 21-9/16" 548 mm 79-3/16" 54-15/16" 2,011 mm 1,395 mm 29-9/16" 751 mm Oneida Air Systems... -
Page 9: System Dimensions With 55 Gallon Drum
System Dimensions with 55 Gallon Drum Nominal dimensions shown. Dimensions subject to slight variations in manufacturing. Allow for an additional 24" of clearance above the Motor Assembly to allow for its removal during lter replacement and other maintenance. If you purchased the Universal Drum Dolly, add an additional 4" to the height of the unit. Top View 20"... -
Page 10: System Contents 30/55 Gallon Drum
Rear Support Brace SES300000 55 Gallon Drum w/ Clamp Please unpack the parts carefully and con rm you have received each item listed here. *Some components are pre-installed at the factory and are listed here for your convenience. Oneida Air Systems... - Page 11 FINISH: NAME: 14Ga Galv THE INFORMATION CONTAINED IN THIS FPX040001 - Filter Hold Down 14ga rev 3 DRAWING IS THE SOLE PROPERTY OF Oneida Air Systems Inc. AND SHALL SIZE TOL: PART NO. FPX040001 NOT BE USED OR DISCLOSED TO...
- Page 12 49-7/8" 1,164 mm 1,267 mm the Universal Drum Dolly, add an additional 4". Note: If you wish to mount your system higher than the recommend height, you will need additional 5" dia. ex hose. FIG. 2 10 Oneida Air Systems...
- Page 13 Assembly Instructions (Continued) Place a mark through the Template's (G1) Mark Mark Here Here paper at each indicated crosshair (four keyway holes and one center hole), then remove the Template (G1) from the wall [FIG. 3a]. Measure 15-1/4" up from the center hole and mark a straight level line to help with the install of the Rear Support Brace (G13) [FIG.
- Page 14 [FIG 6]. FIG. 6 Slide the Wall Bracket (F) down so that the fastener is snugly inside the smaller section of each keyhole [FIG 7]. FIG. 7 Oneida Air Systems, Inc.
- Page 15 Assembly Instructions (Continued) Tighten these four fasteners to secure the Wall Bracket (F) to the wall [FIG. 8]. Note: If installing over drywall, avoid overtightening as it may damage the wall. FIG. 8 Fasten the Rear Support Brace (G13) to the wall using your own suitable hardware [FIG.
- Page 16 Flange (G14) to the Wall Bracket (F) with a Flange Gasket (G3) placed between each one. Secure together using six Hex Head Bolts (G4), six Flat Washers (G5), and six Nylock Nuts (G6) [FIG. 14]. FIG. 14 Oneida Air Systems, Inc.
- Page 17 Assembly Instructions (Continued) Secure the Rear Support Brace (G13) to the Cyclone (E) using a 2-1/2" Hex Head Bolt (G7), Flat Washer (G8), Nylon Spacer (G12), Rubber Washer (G9), and Whiz-Lock Nut (G11) as shown in [FIG 12]. Note: Ensure that the Whiz-Lock Nuts are torqued down so that the rubber washers are rmly compressed - this will prevent air leaks.
- Page 18 (by roughly 50%). FIG. 16 Open and slide the Ring Clamp (D) over the assembly so that it rests outside the upper ange of the Cyclone (E) [FIG. 17]. FIG. 17 Oneida Air Systems, Inc.
- Page 19 Assembly Instructions (Continued) Install the Barrel Gasket (G2) onto the rounded, bottom edge of the Motor Assembly (A). e Barrel Gasket (G2) should be oriented so that the "ribbed" side is facing downwards [FIG. 18]. FIG. 18 Attach one end of the Vinyl Tubing (G16) onto the barbed tting located underneath the Motor Assembly's (A) plastic cowl.
- Page 20 Clamp's cotter pin [FIG. 22]. FIG. 21 Take the Vinyl Tubing (G16) and route it through the closest retaining hole located in the back corner of the Wall Bracket (F) [FIG. 23]. Either Hole FIG. 2 Oneida Air Systems, Inc.
- Page 21 Assembly Instructions (Continued) Connect the Dust Sentry (J) to the smaller power cord on the Motor Assembly's (A) magnetic starter. e Dust Sentry (J) should be mounted in a highly visible area using adhesive strips or the Sentry's two mounting holes [FIG.
- Page 22 • Refer to the Dust Sentry Installation Sheet for more information. infrared Dust Sen Discharge ultrasonic Dust Sentry FIG. 27 Seal the Drum (L) closed using the provided clamp [FIG. 28]. Collar for Flex Hose Clamp FIG. 28 Oneida Air Systems, Inc.
- Page 23 Assembly Instructions (Continued) Attach the other end of the Vinyl Tubing (G16) onto the Nylon Elbow (G17A) installed on the lower section of the Drum (L). Push the Vinyl Tubing onto the tting so that all the barbs are covered [FIG. 29]. G17A FIG.
-
Page 24: Maintenance
Replace the motor section and re-latch the drum clamp pleating. Hold the air nozzle at a 20 degree angle and at least around the motor section. 6” away from the lter; closer blasts will damage the lter Oneida Air Systems, Inc. - Page 25 Maintenance (Continued) Emptying the Drum Cleaning out the Cyclone When rst using the dust collector, check the Drum If the drum becomes over lled and the cone is packed Window (J1) regularly to get an idea of how o en it needs with dust: to be emptied.
- Page 26 Remove the plenum plate and set aside (there is no hardware securing the plenum plate, it is compressed between the cowling and the motors). Cut the Zip Tie securing the wires to the center threaded Oneida Air Systems, Inc.
- Page 27 Maintenance (Continued) Place the new motors onto the assembly then lower the 11. Re-secure the motor hold down plate using the ve 5/16-18 motor hold down plate back into position. Ensure that the Nylock Nuts. motor hold down plate is in the correct orientation as noted Note: DO NOT OVERTIGHTEN.
-
Page 28: Troubleshooting
2. Review the Maintenance section on how to replace the motor. If you continue to experience difficulty with your dust collector, call Oneida Air Systems’ Customer Service Department at 1-866-387-8822 or email support@oneida-air.com. Oneida Air Systems, Inc. -
Page 29: F.a.q
What dust can be collected? Oneida Air Systems' dust collectors are designed and tested for wood and wood dust. ey can and have been used e ectively for various other dusts and chips, such as drywall dust, paper dust, agricultural dust, metal chips and other forms of debris. -
Page 30: Recommended Accessories
• Turn your dust collector into vacuum system with this complete hose accessory kit. • Crush-resistant hose features smooth inner wall for minimal air resistance. • Includes common vacuum head accessories including crevice tool, oor tool, and more! 28 Oneida Air Systems... - Page 31 Recommended Accessories (Continued) 4" Hose Quick Connect Adapter Kit #DQK040000 • Simplify 4" ex-hose connections to your tools and dust collection systems/ductwork. • Made from heavy-gauge, galvanized steel. • Includes both the male (crimped) and female (non-crimped) Hose Quick Connect ttings. 4"...
-
Page 32: Warranty Information
Oneida Air Systems makes every e ort to accurately represent our products and prices, however Oneida Air Systems reserves the right to make changes to products and prices at any time. As a manufacturer, Oneida Air Systems reserves the right to change product speci cations at any time in an e ort to achieve better quality products. -
Page 33: Notes
Notes oneida-air.com... - Page 34 Regardless of where you purchased your system, if you have any questions or issues with missing / damaged parts, please call Oneida Air Systems rst to let us help resolve your problem. We fully stand behind the quality of our product and place the utmost value on our customer’s satisfaction.
