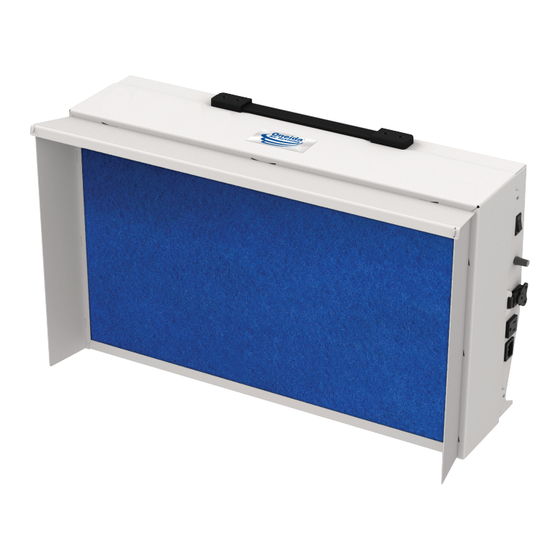

- Page 1 Owner’s Manual BenchTop Personal Dust Collector #XBZ000100 Patents: www.oneida-air.com/patents Appearance may vary slightly Rev: B 20230428LL Doc. #ZBM000041...
-
Page 3: Table Of Contents
Table of Contents System Specifications System Dimensions System Contents Assembly Instructions BenchTop Features Maintenance Troubleshooting F.A.Q. Recommended Accessories Warranty Information Notes oneida-air.com... - Page 4 12. ENSURE enough air volume is at the suction point to capture all the particulate generated. 13. NEVER make modifications without prior approval from Oneida Air Systems. Modifying the dust collector or using it differently than intended will void the warranty and may result in malfunction or mechanical failure that leads to serious personal injury or death! 14.
- Page 5 system start-up Information (Continued) of the dust collector. 15. DO NOT install in classified hazardous atmospheres without an enclosure rated for the application. System Location must account for wind, seismic zone, and other load conditions. Codes may regulate acceptable locations for installing dust collectors. Consult with the appropriate authorities having jurisdiction to ensure compliance with all national and local codes regarding dust collector installation.
- Page 6 Oneida Air Systems assumes no responsibility or liability for the suitability of any fire and/ or explosion mitigation strategy, or any items incorporated into a collector as part of an owner/operators hazard mitigation strategy.
- Page 7 system start-up Information (Continued) 12. ALWAYS check your dust bin for smoldering materials before leaving the shop. 13. NEVER introduce sparks or sources of ignition into the dust collector. Sparks can be generated in several ways: a. High speed sanders, abrasive planers, saws, and edgers may strike foreign material and create a red-hot metal fragment.
-
Page 8: System Specifications
Overall Weight 20 lbs Pre-Filter Dimensions 16 x 24-1/4 x 1/2" Main Filter Dimensions 16 x 25 x 3" Outer Filtration / Material MERV 5 / Polyester Main Filter Filtration / Material MERV 15 / Synthetic Oneida Air Systems, Inc. -
Page 9: System Dimensions
system Dimensions Nominal dimensions shown. Dimensions subject to slight variations in manufacturing. 25-1/2" 648 mm 16-1/2" 419 mm 9-3/4" 248 mm oneida-air.com... -
Page 10: System Contents
Please unpack the parts carefully and confirm you have received each item listed here. *Components are pre-installed at the factory and are listed here for maintenance and convenience. The pre-installed components will be referred to as the BenchTop Assembly (A). Oneida Air Systems, Inc. -
Page 11: Assembly Instructions
assembly Instructions FOR yOuR OWN SAFETy, DO NOT CONNECT THE MACHINE TO THE pOWER SOuRCE uNTIl THE MACHINE IS COMplETEly ASSEMBlED. plEASE AlSO MAkE SuRE THAT yOu READ AND uNDERSTAND THE ENTIRE INSTRuCTION MANuAl. Insert the Top Vane (G) between the Frame Assembly (E) and Pre-Filter (D) as shown in [FIG. - Page 12 Instructions (Continued) Install the Left and Right Vanes (F, H) to the BenchTop Assembly (A): a. Locate the lower notches on the front of the Frame Assembly. [FIG. 2a] b. Slide the Right Vane (H) between the Frame Assembly (E) and Pre-Filter (D) at...
- Page 13 NOT FIT THE OuTlET, HAvE THE pROpER OuTlET INSTAllED By A QuAlIFIED ElECTRICIAN. Plug the female end of the AC Cord (K) into the BenchTop Assembly's (A) male port. Make certain that the power switch is in the off position and then plug the AC Cord into an AC power source (wall outlet) [FIG.
-
Page 14: Benchtop Features
Adjusts the fan speed to meet the needs of any application. Auxiliary power Outlet Allows small hand tools and accessories to be powered through the collector. IEC C14 port Accepts standard C13 power cord. 6' power cord included. Oneida Air Systems, Inc. -
Page 15: Maintenance
Disassembly and Cleaning WEAR A DUST MASK AND EYE PROTECTION. Turn off and unplug the BenchTop and wait for the Fan Assembly to come to a complete stop and for the dust to settle. - Page 16 (E) to securely close the unit. Push the Main Filter (C) into the Frame Assembly (E) up against the Pre-Filter (D) while taking care not to touch the filter media or damage the Main Filter's frame. Oneida Air Systems, Inc.
-
Page 17: Troubleshooting
2. Visually inspect that all fans are spinning by switching the unit on/off. 3. If any fans are not spinning, turn off and unplug the BenchTop and wait for the Fan Assembly to come to a complete stop and for the dust to settle. -
Page 18: F.a.q
Can I use 3rd party replacement filters? Yes, the BenchTop uses a standard 16 x 25 x 3" MERV-15 filter that can be sourced from most hardware stores. Double check the new filter's size before purchasing or installing. Please see the Recommended Accessories section. -
Page 19: Recommended Accessories
BenchTop Filter pack: Washable MERv 5 pre-Filter and MERv 15 Deep-pleated Filter #FCS000100 • MERV 15 deep-pleated filter made of electrostatically charged synthetic materials that attract and capture most airborne particulates. • Rigid MERV 5 open-cell polyester Pre-Filter serves to protect and prolong the lifespan of the Main Filter. - Page 20 • Equipped with a 14-gallon dust bin, automatic liner bag holder, and fill viewing window. Industrial Dust Cobra # XCKM010000-IND • Portable, high pressure dust collector ideal for benchtop and handheld tools with dust ports 4" dia. and smaller. • Provides 3x higher airflow compared to traditional shop vacuums and is equipped with an internal pulse filter cleaner to reduce downtime.
-
Page 21: Warranty Information
Warranty – Activate online at oneida-air.com/warranty Oneida Air Systems®, Inc. (OAS) warrants the BenchTop and the BenchTop Mini to the original purchaser for a period of 1 year from the date of purchase, unless otherwise specified. Items not manufactured by Oneida Air Systems are limited to their own manufacturer’s warranties. All electrical items such as magnetic starters, remotes, sensors, pumps, bin sensors, bag grippers, accessories and etc. -
Page 22: Notes
Oneida Air Systems, Inc. - Page 24 Regardless of where you purchased your system, if you have any questions or issues with missing / damaged parts, please call Oneida Air Systems first to let us help resolve your problem. We fully stand behind the quality of our products and place the utmost value on the satisfaction of our customers.
