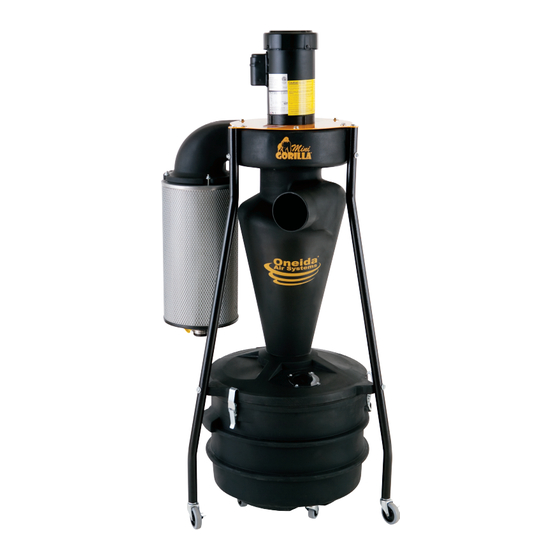

- Page 1 Owner’s Manual Mini-Gorilla 110V / 220V # XXPM010100H # XXPM010100H220 Patents: www.oneida-air.com/patents Appearance may vary slightly Rev: E 20240321LL Doc. #ZBM000024A...
-
Page 3: Table Of Contents
Table of Contents System Start-Up Information System Specifications System Dimensions System Contents Assembly Instructions Maintenance Troubleshooting Recommended Accessories Warranty Information Notes oneida-air.com... -
Page 4: System Start-Up Information
13. ENSURE enough air volume is at the suction point to capture all the particulate generated. 14. NEVER make modifications without prior approval from Oneida Air Systems. Modifying the dust collector or using it differently than intended will void the warranty and may result in malfunction or mechanical failure that leads to serious personal injury or death! DO NOT allow use as a toy. - Page 5 system start-up Information (Continued) 15. DO NOT locate or operate the system in moist, wet, poorly lit, or cluttered environments. Operating in these areas can create shock hazards, increase the risks of accidents and injury, and/or lower the operating lifespan of the dust collector. 16.
- Page 6 Oneida Air Systems assumes no responsibility or liability for the suitability of any fire and/ or explosion mitigation strategy, or any items incorporated into a collector as part of an owner/operators hazard mitigation strategy.
- Page 7 system start-up Information (Continued) d. Check wood stock for old nails and screws which can create red-hot metal fragments. 14. DO NOT overload woodworking equipment, especially sanders, as excessive frictional heat can spontaneously ignite dust. Sanders can produce concentrations of dust well into the combustible range. 15.
-
Page 8: System Specifications
Barrel/Cyclone Body Molded Static Conductive Resin Inlet 5" (127 mm) Outer Diameter Overall Height 64.25" (1,632 mm) Overall Weight 85 lbs (38.5 kg) The Mini-Gorilla requires a 20 Amp outlet receptacle to be installed by a licensed electrician. Oneida Air Systems... -
Page 9: System Dimensions
Dimensions Nominal dimensions shown. Dimensions subject to slight variations in manufacturing. The Mini-Gorilla requires a 20 Amp outlet receptacle Top View 28" to be installed by a licensed electrician. See below outlet 711 mm receptacles needed based on the voltage of your unit. -
Page 10: System Contents
5/16" Flat Washer Pack of five 22 Gal. Heavy-Duty VAB363602A Plastic Liner Bags AFT900006 1/4"-20 Nylock Nut VRV050500 1/2" ID Vinyl Tubing 5 ft. Mini-Gorilla Inlet Adapter Kit AAP000504 RGZ025050 Gasket 6 ft. for 4" Hose DAO002045 4/5 Adapater ABF500000 1/2"... - Page 11 system Contents (Continued) Gasket & Bag Components Motor Attachment Hardware Leg Hardware & Casters Gasket & Bag Components Filter Attachment Hardware Leg Hardware & Casters Leg Hardware & Casters Gasket & Bag Components Leg Hardware & Casters oneida-air.com...
-
Page 12: Assembly Instructions
[FIG. 2b] Note: For ease of assembly, we recommend FIG. 2b channel lock pliers to tighten the casters. Over SECTION G-G torquing can damage the connection point. SECTION G-G SECTION G-G DETAIL I SCALE 1 : 1 10 Oneida Air Systems... - Page 13 assembly Instructions (Continued) Install Straight Fittings (C9D) into the recessed FIG. 3a FIG. 3b holes under the fan housing and near the bottom of the drum. [FIG. 3a] [FIG. 3b] Secure in place using the fitting’s nut on the inside; using a Rubber Washer (C9E) between the nut and the inner wall.
- Page 14 [FIG. 6a] Note: If you do not want to use bags you MUST FIG. 6a use the Cap (C9F) to close off the fitting inside the drum. [FIG. 6b] FIG. 6b 12 Oneida Air Systems...
- Page 15 assembly Instructions (Continued) Latch the Drum to the cone assembly and connect the Vinyl Tubing (C9B) onto both Straight Fittings (C9D). Push tubing on until all barbs are covered. [FIG. 7] FIG. 7 Tap the U-Spring Nuts (C9R) onto each of the holes around the circle of the Fan Housing with a ball peen hammer.
- Page 16 Drum Latches (C2) and the Drum Window (C6) Note: If U-Spring Nuts (C9R) don't align with the motor plate holes, use a screwdriver to adjust misalignment. Hand tighten first and then tighten down. Motor Plate FIG. 10 14 Oneida Air Systems...
- Page 17 assembly Instructions (Continued) Lift the Filter (B) up to the plenum elbow, FIG. 11a FIG. 11b slotting the filter’s bolts into the four grooves. shown in [FIG. 11a]. Secure in place with four 5/16" Flat Washers (C9W) and four Nylock Nuts (C9X) [FIG.
- Page 18 [FIG. 14c]. Pre-drill three 1/8" diameter holes at these locations. Then install three #8 x 1/2" Screws into these holes after installing the Adapter [FIG. 14d]. FIG. 14b 1/2" 13 mm FIG. 14c 5" 4" 127 mm 102 mm FIG. 14d 16 Oneida Air Systems...
- Page 19 Instructions (Continued) Comment- The Mini-gorilla requires a 20 Amp outlet receptacle to be installed by a licensed electrician. The Mini-Gorilla requires a 20 Amp outlet 120V / 16A Mini-Gorilla 220V / 8A Mini-Gorilla receptacle to be installed by a licensed...
-
Page 20: Maintenance
6” away from the filter; closer blasts may damage the filter material. Direct air out and away from anyone in the area. Do not use this method when any hazardous material has been vacuumed up. 20º 18 Oneida Air Systems... -
Page 21: Troubleshooting
Clean filter more often with compressed air. If you continue to experience difficulty with your dust collector, call Oneida Air Systems’ Customer Service Department at 1-866-387-8822 or email support@oneida-air.com. oneida-air.com... -
Page 22: Faq
What dust can be collected? Oneida Air Systems' dust collectors are designed and tested for wood and wood dust. They can and have been be used effectively for various other dusts and chips such as drywall dust, paper dust, agricultural dust, metal chips and other forms of debris. - Page 23 FaQ (Continued) Do you have a ductwork kit that includes everything I need to get started? Yes, we have a Mini-Gorilla Quick-Start Ductwork Kit (KDZ010100) that includes: a. DHF051000: Ten feet of 5" flex hose b. ACB060000: Two 3-6" clamps c.
-
Page 24: Recommended Accessories
• Detects when your power tools are on and automatically turns on the dust collector for you! • Includes 1 Remote Control with belt-clip. • Switch receives signals from up to 40' away in any direction. 22 Oneida Air Systems... - Page 25 • Perfect when using a single connection to switch between multiple tools. 5" - 4" Reducer #DRL050400 • The Mini-Gorilla's inlet accepts raw (uncrimped) ends. Raw ends can be crimped if specified by customer. • Useful for reducing the diameter of your ductwork connecting to your tools and/or flex hose.
-
Page 26: Warranty Information
In no event shall Oneida Air Systems’ liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Oneida Air Systems shall be tried in the State of New York, County of Onondaga. -
Page 27: Notes
notes oneida-air.com... - Page 28 Regardless of where you purchased your system, if you have any questions or issues with missing / damaged parts, please call Oneida Air Systems first to let us help resolve your problem. We fully stand behind the quality of our products and place the utmost value on customer satisfaction.
