5.2
Installation
Risk of accidents if incorrectly secured!
A machine that is not properly secured can injure persons!
•
The machine may only be secured by a suitably qualified person!
•
Only the provided fixing points in the base plate are to be used for securing!
•

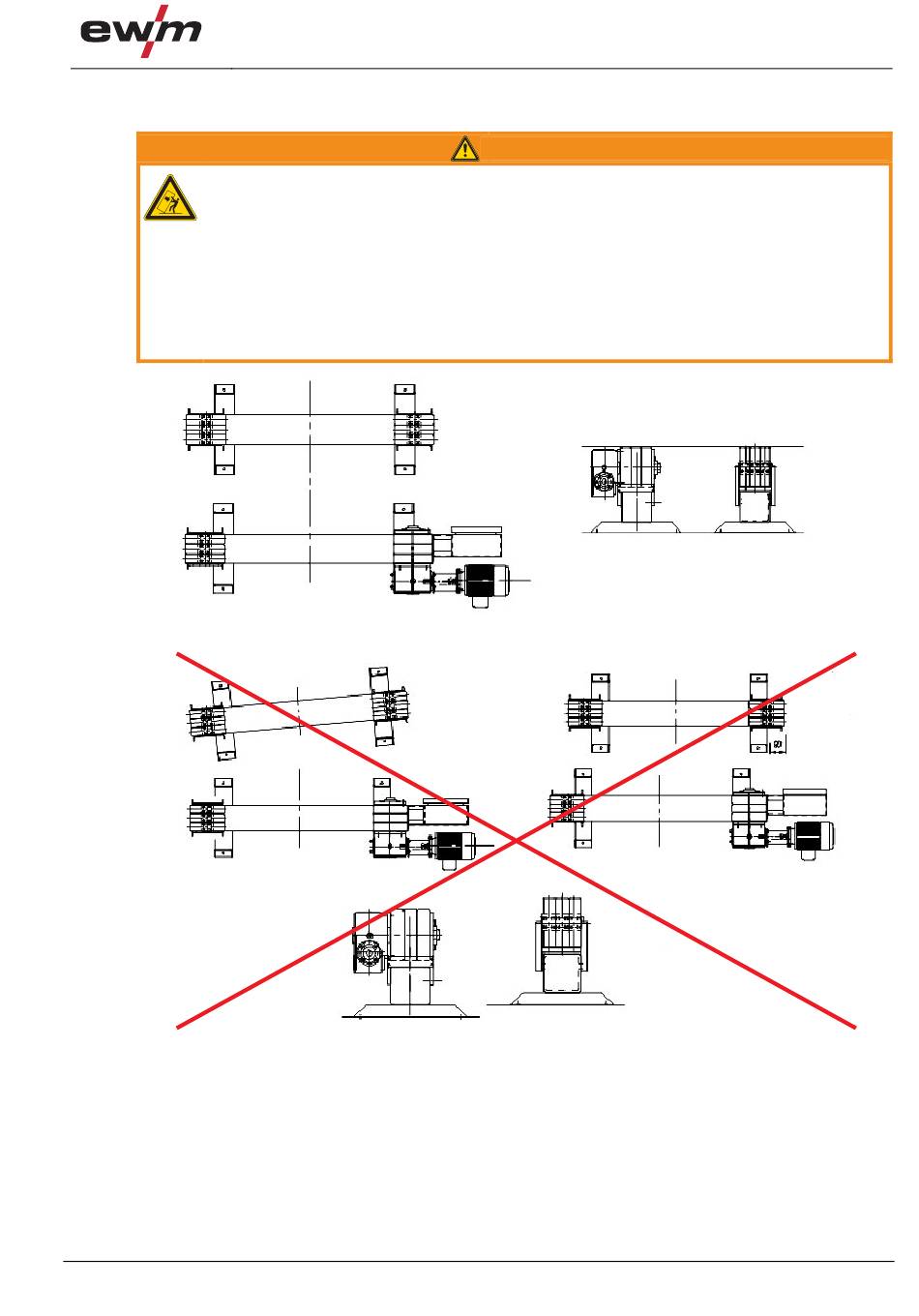

Always mount driven and passive dollys parallel and at the same height (see graphic)!
•
Only use suitable fixing materials with a minimum size of M8 x 25 mm to anchor the machine!
•
The screws from the transport packaging are not suitable for anchoring the machine!
•
Anchor the machine on a suitable, load bearing and even surface (observe the load of the
rotation unit and the weight of the workpiece)!
099-010253-EW501
26.11.2010
Design and function
WARNING
Figure 5-1
Figure 5-2
Installation
13
