5.6.3
Switching the machine on/off
Risk of injury in the hazard area!
Rotating movements carried out by the machine can injure people! The hazard area is
the immediate area around the machine and the workpiece, plus a safety area of 1 m.
•
Before switching on the machine and during operation, ensure that nobody is standing in the
hazard area!
•
Wear appropriate protective clothing (no loose clothing)!
•
In the event of an emergency, press the emergency stop switch or disconnect from the
power supply (remove the plug from the mains)!
•
Switch the machine on or off at the main switch.
5.6.4
Changing the mains fuse
Electric shock due to live parts!
The machine carries voltage during operation! Working on the machine during operation
can result in fatal injuries!
•
Before all work, switch off the main switch!
•
Remove the mains connection cable!
Item
Symbol Description
1
2
3
4
5
•
Switch off machine at the main switch.
•
Remove the mains connection cable.
•
Fold down the fuse holder.
•
Remove faulty machine fuse.
•
Fit the replacement fuse.
•
Fold the fuse holder back into position.
•
Plug in the mains connection cable and switch on at the main switch.
099-010253-EW501
26.11.2010
1
3
2
0
Main switch, machine on/off
Connection socket mains cable
Fuse holder
Machine fuse (1A)
Replacement fuse (1A)
Design and function
CAUTION
DANGER

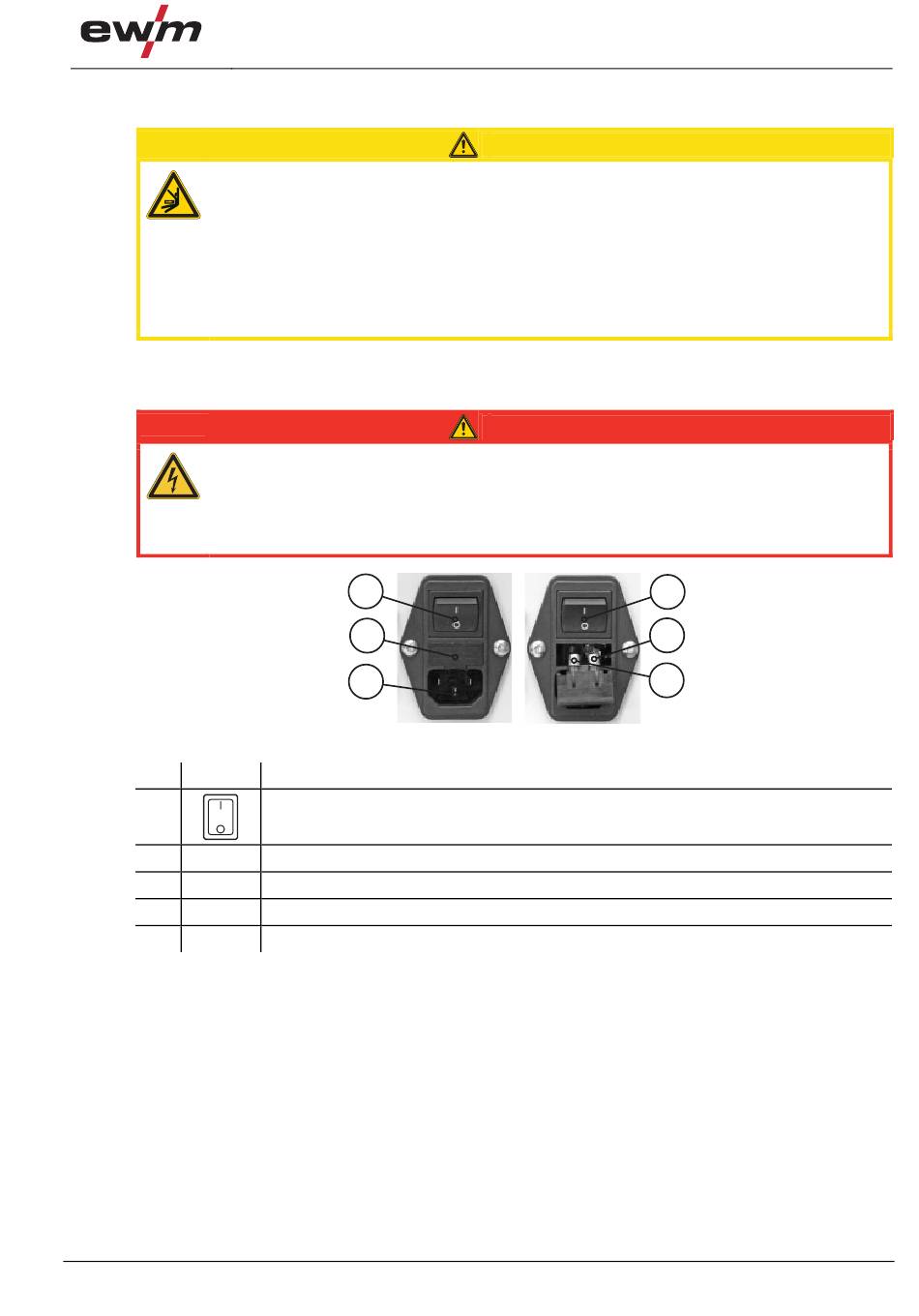

Figure 5-5
