5.6 Mains connection
5.6.1 TR-0102
Damage to machines caused by inconsistent voltages!
To avoid damage to machines, the mains voltage and the machine voltage must match!
• Check the setting on the machine operating voltage changeover switch!
• It may be necessary to adjust the machine to the available mains voltage (see technical
data).
• For mains fuse protection, please refer to the "Technical data" chapter.
5.6.2

Setting the mains voltage (115V/230V)

Item Symbol Description
1
2
• Set the mains input voltage on the mains voltage changeover switch to the mains voltage present.
• Remove the "Set mains input voltage" sticker.
• Insert mains plug of the switched-off machine into the appropriate socket.
16
0
Mains voltage 115V/230V changeover switch
"Set mains input voltage" sticker
CAUTION
1
2

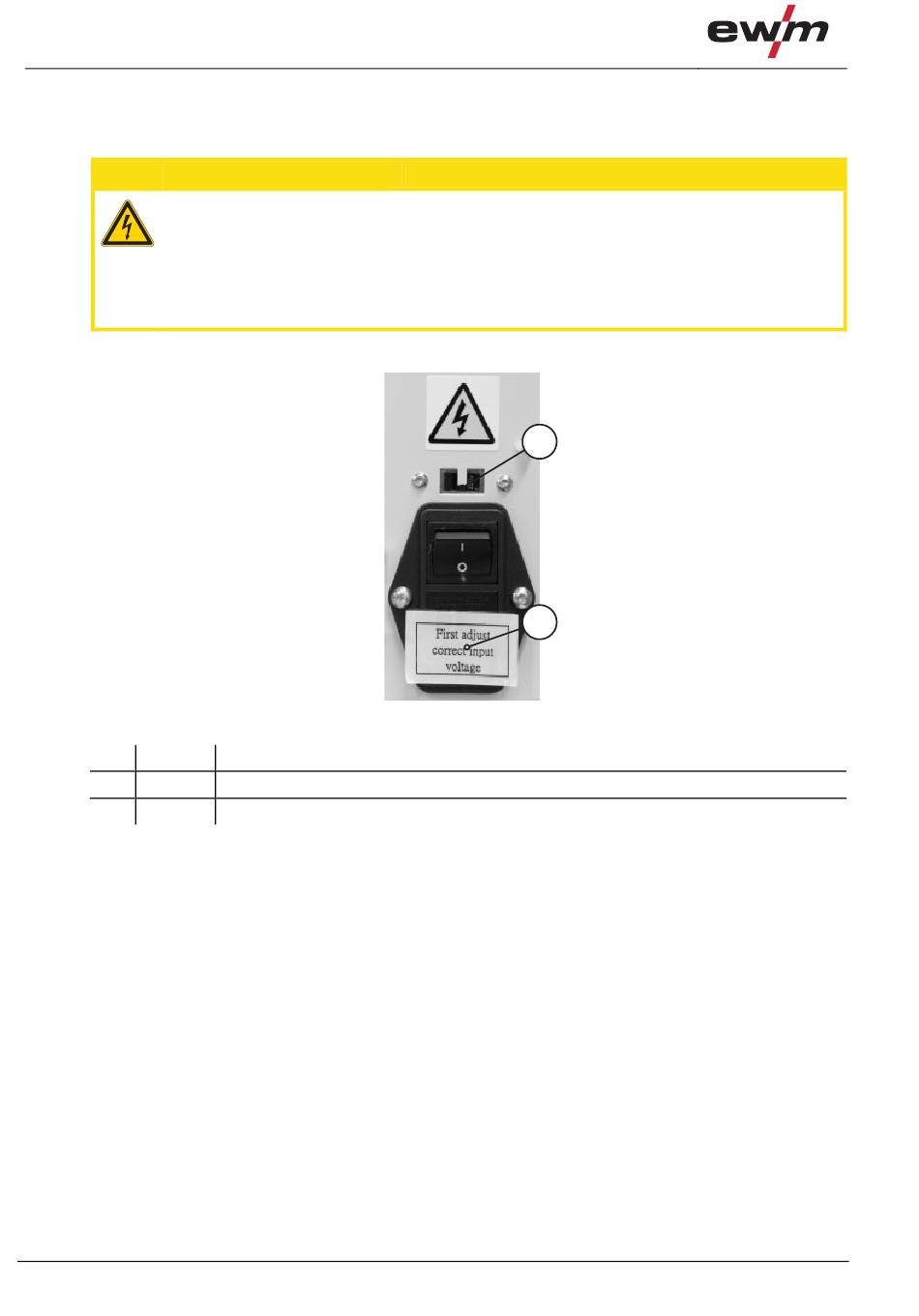

Figure 5-4
