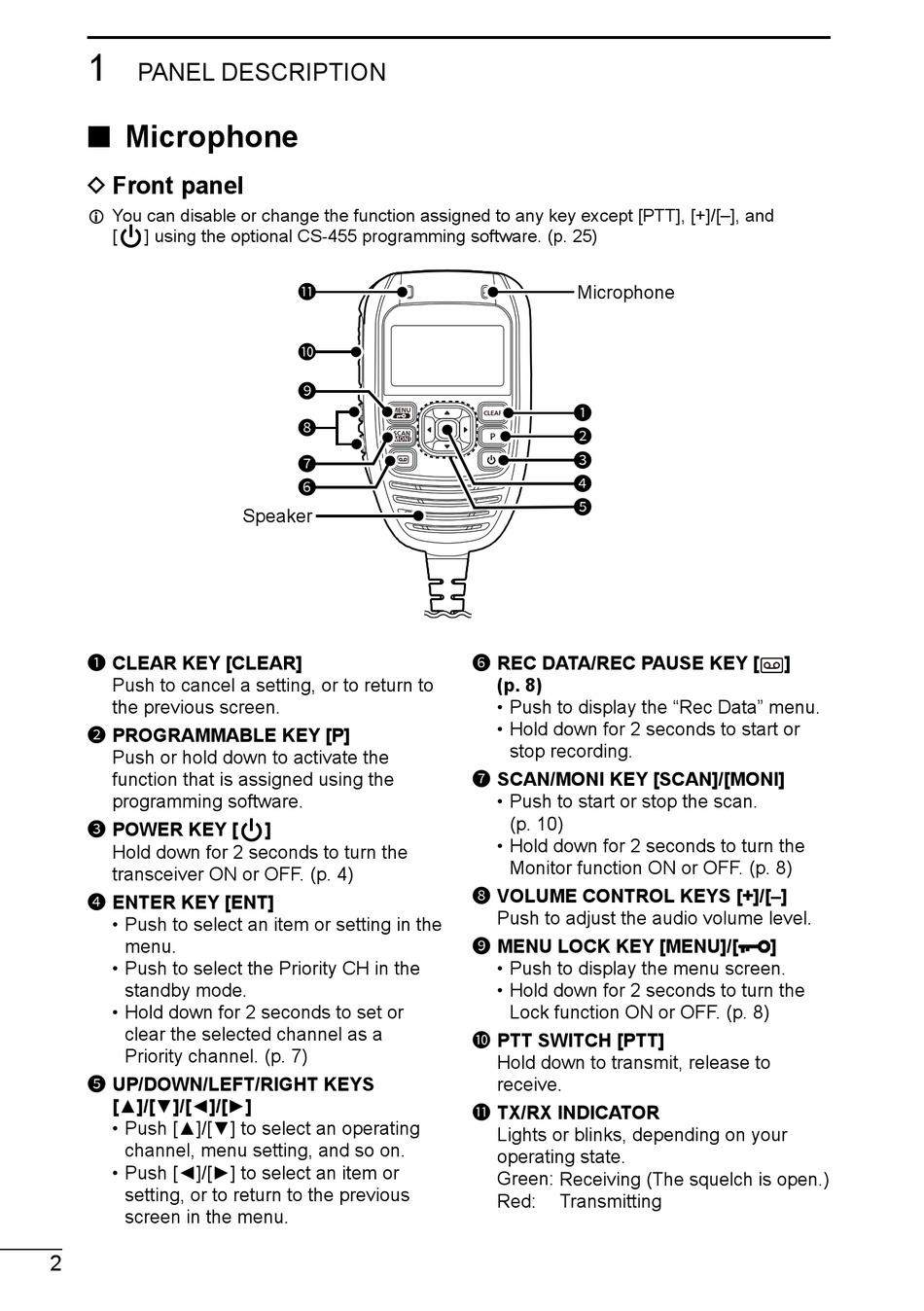

PANEL DESCRIPTION

■ Microphone

D Front panel
L You can disable or change the function assigned to any key except [PTT], [+]/[–], and
[ ] using the optional CS-455 programming software. (p. 25)
1 CLEAR KEY [CLEAR]
P ush to cancel a setting, or to return to
the previous screen.
2 PROGRAMMABLE KEY [P]
Push or hold down to activate the
function that is assigned using the
programming software.
3 POWER KEY [
Hold down for 2 seconds to turn the
transceiver ON or OFF. (p. 4)
4 ENTER KEY [ENT]
• Push to select an item or setting in the
menu.
• Push to select the Priority CH in the
standby mode.
• Hold down for 2 seconds to set or
clear the selected channel as a
Priority channel. (p. 7)
5 UP/DOWN/LEFT/RIGHT KEYS
[▲]/[▼]/[◄]/[►]
• Push [▲]/[▼] to select an operating
channel, menu setting, and so on.
• Push [◄]/[►] to select an item or
setting, or to return to the previous
screen in the menu.
2
11
10
9
8
7
6
Speaker
]
Microphone
1
2
3
4
5
6 REC DATA/REC PAUSE KEY [
(p. 8)
• Push to display the "Rec Data" menu.
• Hold down for 2 seconds to start or
stop recording.
7 SCAN/MONI KEY [SCAN]/[MONI]
• Push to start or stop the scan.
(p. 10)
• Hold down for 2 seconds to turn the
Monitor function ON or OFF. (p. 8)
8 VOLUME CONTROL KEYS [+]/[–]
Push to adjust the audio volume level.
9 MENU LOCK KEY [MENU]/[
• Push to display the menu screen.
• Hold down for 2 seconds to turn the
Lock function ON or OFF. (p. 8)
10 PTT SWITCH [PTT]
H old down to transmit, release to
receive.
11 TX/RX INDICATOR
L ights or blinks, depending on your
operating state.
Green: Receiving (The squelch is open.)
Red: Transmitting
]
]
