3

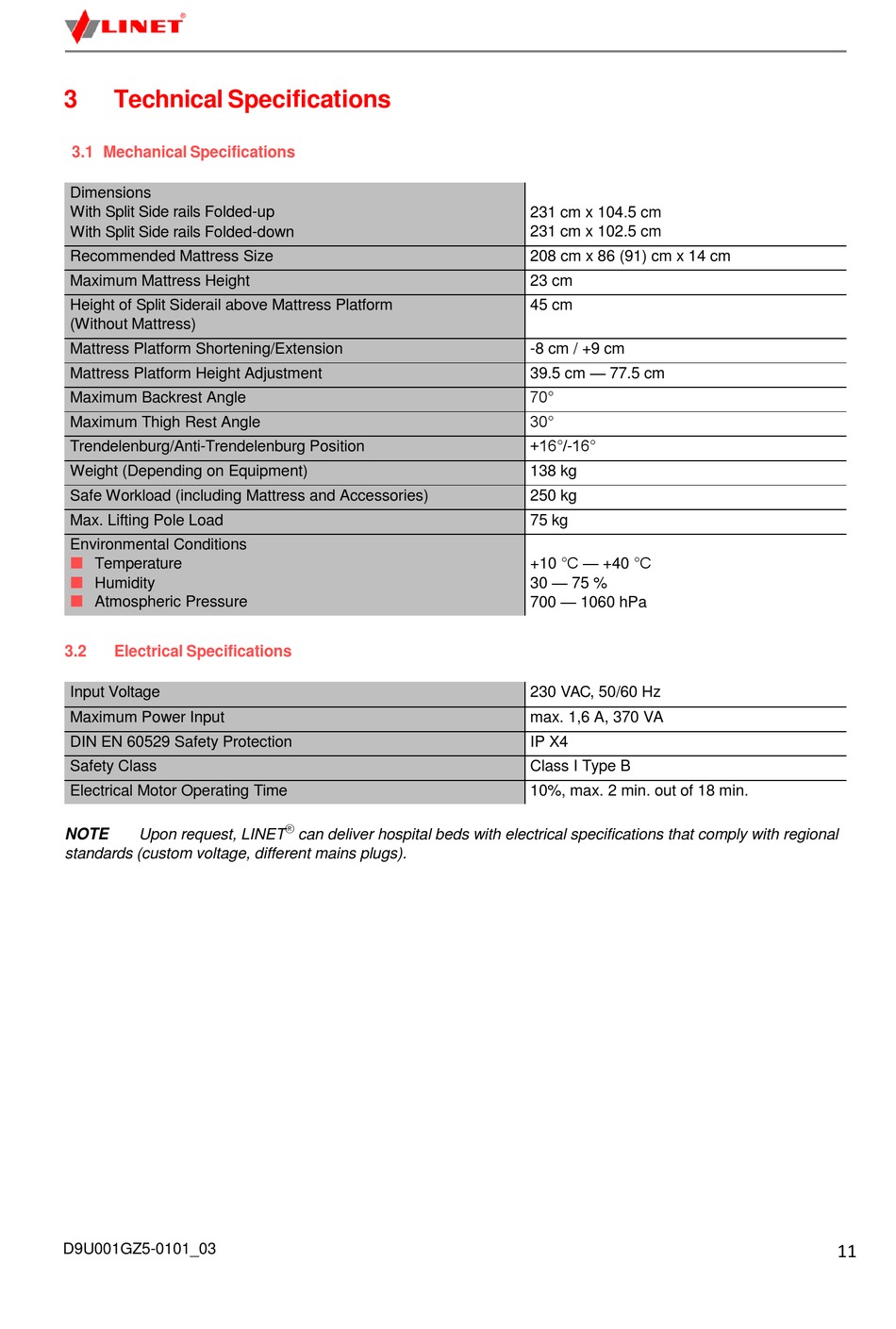

Technical Specifications

3.1 Mechanical Specifications

Dimensions
With Split Side rails Folded-up
With Split Side rails Folded-down
Recommended Mattress Size
Maximum Mattress Height
Height of Split Siderail above Mattress Platform
(Without Mattress)
Mattress Platform Shortening/Extension
Mattress Platform Height Adjustment
Maximum Backrest Angle
Maximum Thigh Rest Angle
Trendelenburg/Anti-Trendelenburg Position
Weight (Depending on Equipment)
Safe Workload (including Mattress and Accessories)
Max. Lifting Pole Load
Environmental Conditions

Temperature

Humidity

Atmospheric Pressure
3.2

Electrical Specifications

Input Voltage
Maximum Power Input
DIN EN 60529 Safety Protection
Safety Class
Electrical Motor Operating Time
NOTE Upon request, LINET
standards (custom voltage, different mains plugs).
D9U001GZ5-0101_03
®
can deliver hospital beds with electrical specifications that comply with regional
231 cm x 104.5 cm
231 cm x 102.5 cm
208 cm x 86 (91) cm x 14 cm
23 cm
45 cm
-8 cm / +9 cm
39.5 cm — 77.5 cm
70°
30°
+16°/-16°
138 kg
250 kg
75 kg
+10 °C — +40 °C
30 — 75 %
700 — 1060 hPa
230 VAC, 50/60 Hz
max. 1,6 A, 370 VA
IP X4
Class I Type B
10%, max. 2 min. out of 18 min.
11
