ExtremeSwitching 5420 Series Overview

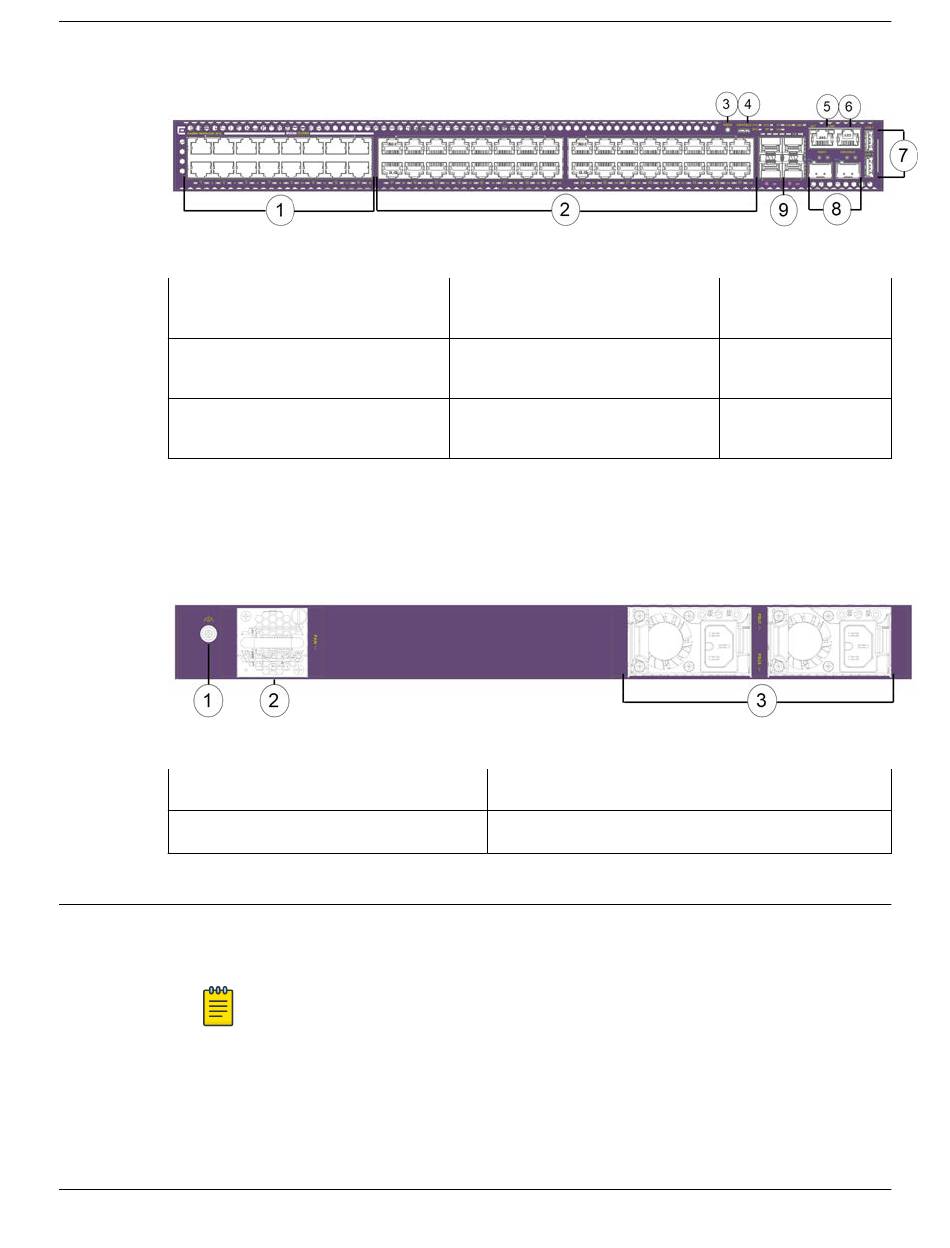

Figure 23: 5420M-16MW-32P-4YE Front Panel
1 = 100Mb/1Gb/2.5Gb
ports10/100/1000BASE-T ports
2 = 10/100/1000BASE-T ports
3 = Mode button
The rear panel of the switch includes:
•
1 fan module
•
Grounding lug
•
2 power supply slots
Figure 24: 5420M-16MW-32P-4YE Rear Panel
1 = Grounding lug
2 = Fan module

5420M-48T-4YE Switch Features

The front panel of the 5420M-48T-4YE switch includes:
•
48 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports
•
4 1/10/25Gb SFP28 MACsec capable uplink ports (unpopulated)
Note
Half-duplex is not supported on these ports when operating at 1Gbps.
ExtremeSwitching 5420 Series Hardware Installation Guide
4 = USB Micro-B console port
5 = 10/100/1000BASE-T out-of-band
management port
6 = RJ-45 serial console port
3 = Power supply slots
5420M-48T-4YE Switch Features
7 = USB Type-A ports
8 = SFP-DD stacking
ports
9 = 1/10/25G SFP28
ports
