5420F-48T-4XE Switch Features

The front panel of the 5420F-48T-4XE switch includes:
•
48 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports
•
4 1/10Gb SFP+ MACsec capable uplink ports (unpopulated)
•
2 Stacking/SFP-DD ports (unpopulated)
•
1 Serial console port (RJ-45)
•
1 10/100/1000BASE-T out-of-band management port
•
2 USB Type-A ports for management or external flash
•
1 USB Micro-B console port

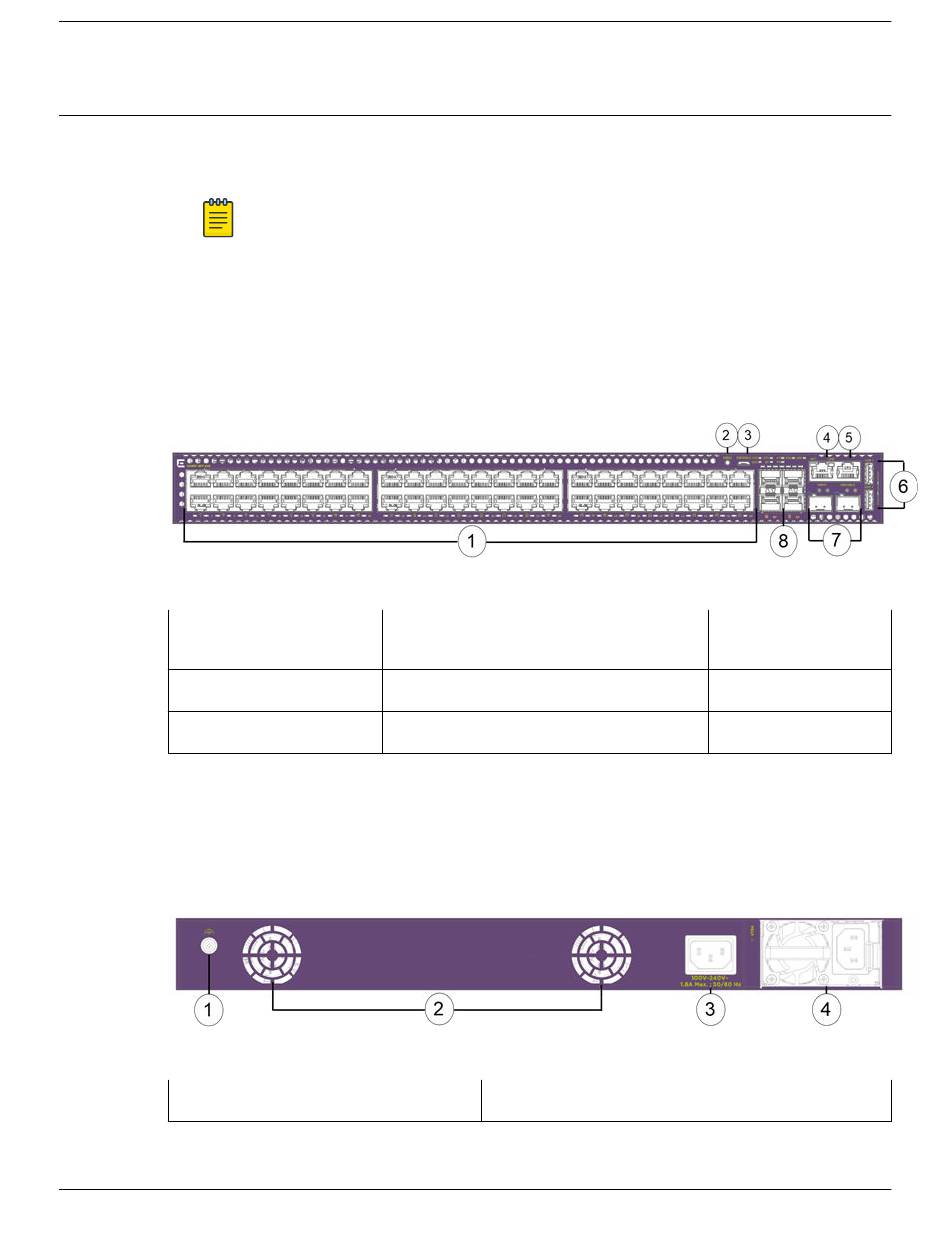

Figure 17: 5420F-48T-4XE Front Panel
1 = 10/100/1000BASE-T ports 4 = 10/100/1000BASE-T out-of-band
2 = Mode button
3 = USB Micro-B console port 6 = USB Type-A ports
The rear panel of the switch includes:
•
2 fixed fan modules
•
Grounding lug
•
1 AC power inlet connector
•
1 power supply slot
Figure 18: 5420F-48T-4XE Rear Panel
1 = Grounding lug
Note
Half-duplex is not supported on these ports when operating at 1Gbps.
management port
5 = RJ-45 serial console port
ExtremeSwitching 5420 Series Hardware Installation Guide
5420F-48T-4XE Switch Features
3 = AC power inlet connector
7 = SFP-DD stacking
ports
8 = 1/10G SFP+ ports
