5420F-24T-4Xe Switch Features - Extreme Networks ExtremeSwitching 5420 Series Hardware Installation Manual

ExtremeSwitching 5420 Series Overview
•
1 AC power inlet connector
•
1 power supply slot

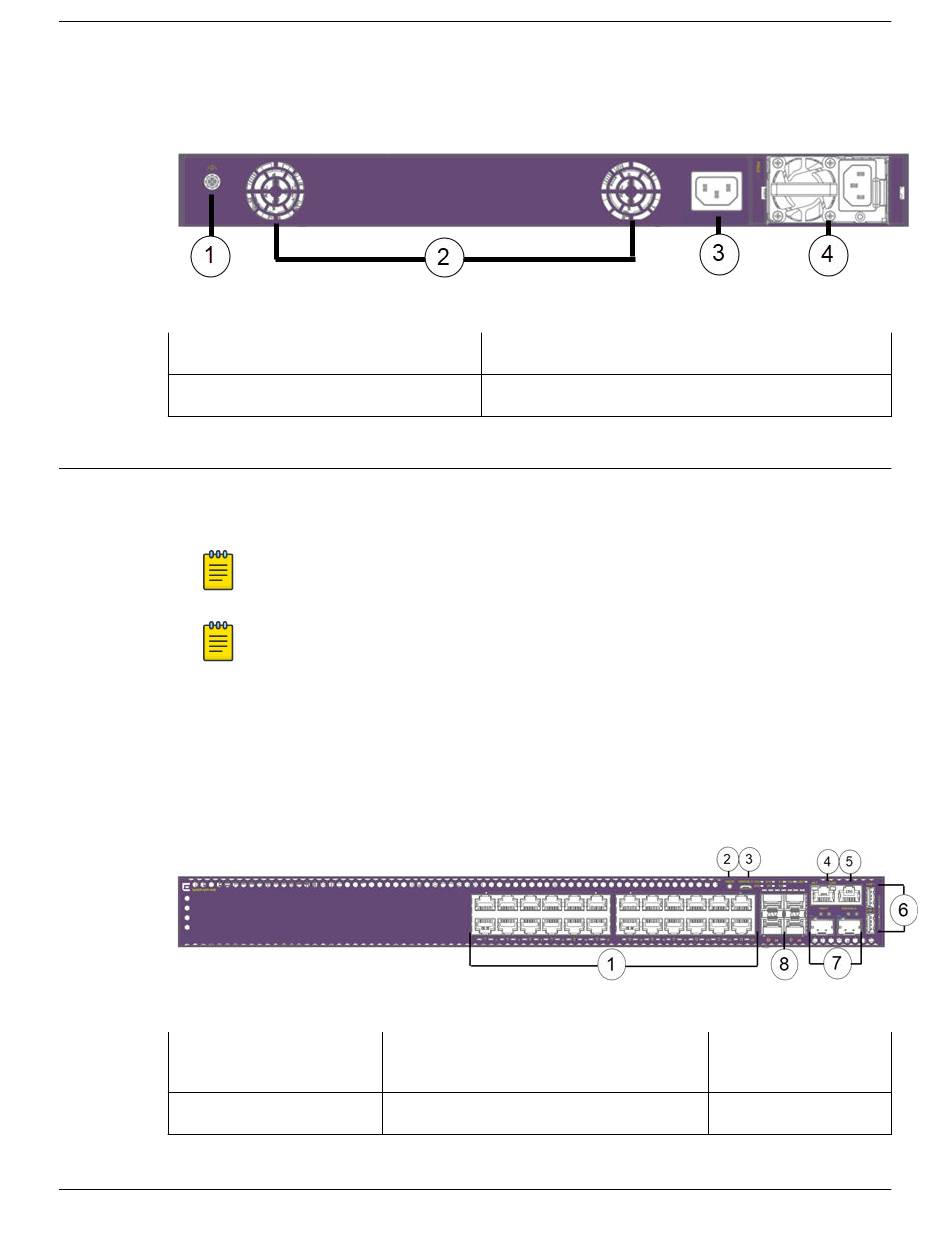

Figure 6: 5420F-24S-4XE Rear Panel
1 = Grounding lug
2 = Fixed fan modules

5420F-24T-4XE Switch Features

The front panel of the 5420F-24T-4XE switch includes:
•
24 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports.
•
4 1/10Gb SFP+ MACsec capable uplink ports (unpopulated)
•
2 Stacking/SFP-DD ports (unpopulated)
•
1 Serial console port (RJ-45)
•
1 10/100/1000BASE-T out-of-band management port
•
2 USB Type-A ports for management or external flash
•
1 USB Micro-B console port
Figure 7: 5420F-24T-4XE Front Panel
1 = 10/100/1000BASE-T ports 4 = 10/100/1000BASE-T out-of-band
2 = Mode button
Note
PoE on RJ-45 ports is not supported.
Note
Half-duplex is not supported on these ports when operating at 1Gbps.
management port
5 = RJ-45 serial console port
ExtremeSwitching 5420 Series Hardware Installation Guide
5420F-24T-4XE Switch Features
3 = AC power inlet connector
4 = Power supply slot
7 = SFP-DD stacking
ports
8 = 1/10G SFP+ ports
17
