5420F-48P-4Xl Switch Features - Extreme Networks ExtremeSwitching 5420 Series Hardware Installation Manual

ExtremeSwitching 5420 Series Overview
•
1 10/100/1000BASE-T out-of-band management port
•
2 USB Type-A ports for management or external flash
•
1 USB Micro-B console port

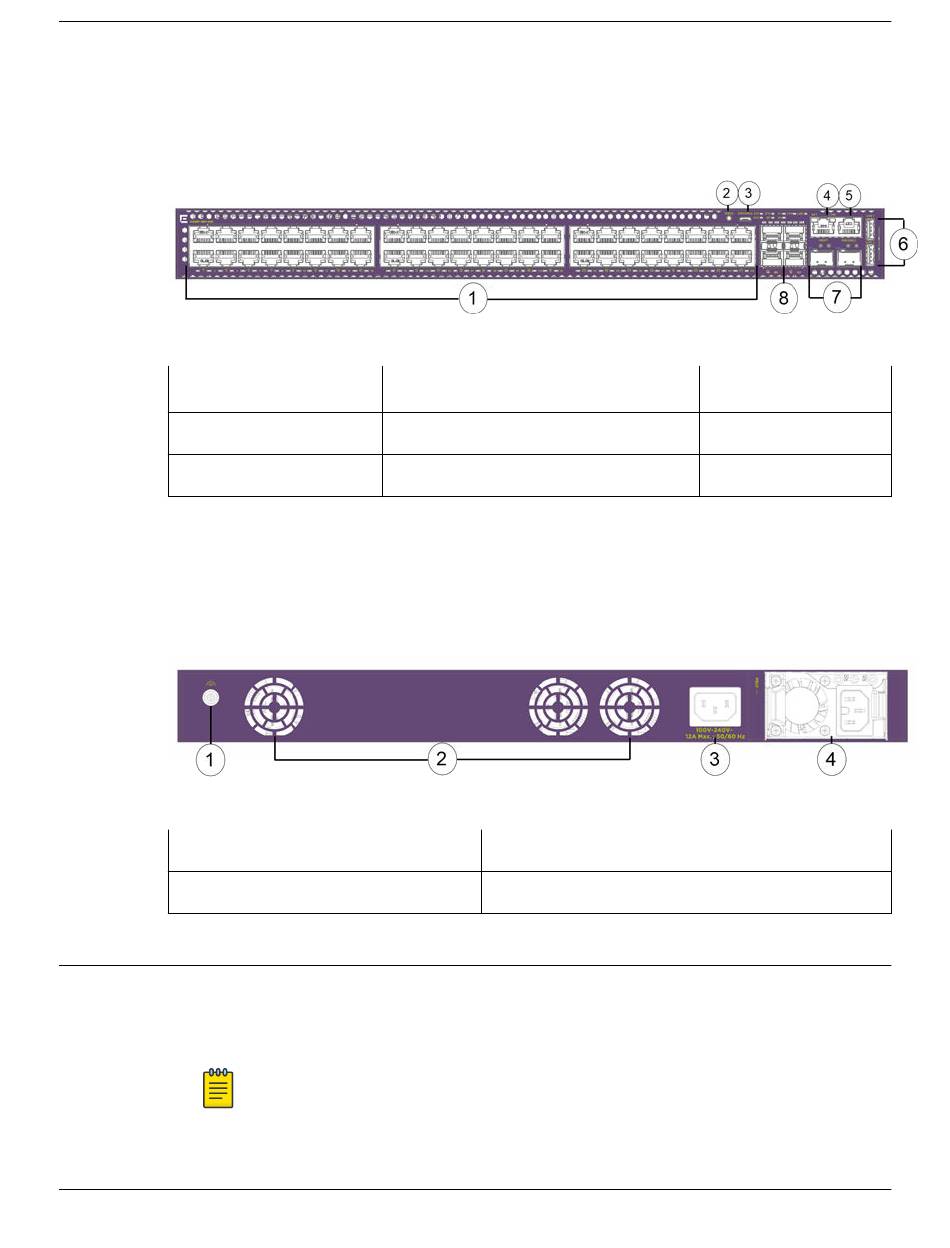

Figure 13: 5420F-48P-4XE Front Panel
1 = 10/100/1000BASE-T ports
2 = Mode button
3 = USB Micro-B console port 6 = USB Type-A ports
The rear panel of the switch includes:
•
3 fixed fan modules
•
Grounding lug
•
1 AC power inlet connector
•
1 power supply slot
Figure 14: 5420F-48P-4XE Rear Panel
1 = Grounding lug
2 = Fixed fan modules

5420F-48P-4XL Switch Features

The front panel of the 5420F-48P-4XL switch includes:
•
48 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports with Type 2 PoE+
(30W).
•
4 10Gb SFP+ MACsec capable LRM capable uplink ports (unpopulated)
10/100/1000BASE-T out-of-band management
port
5 = RJ-45 serial console port
Note
Half-duplex is not supported on these ports when operating at 1Gbps.
ExtremeSwitching 5420 Series Hardware Installation Guide
5420F-48P-4XL Switch Features
3 = AC power inlet connector
4 = Power supply slot
7 = SFP-DD stacking ports
8 = 1/10G SFP+ ports
