ExtremeSwitching 5420 Series Overview

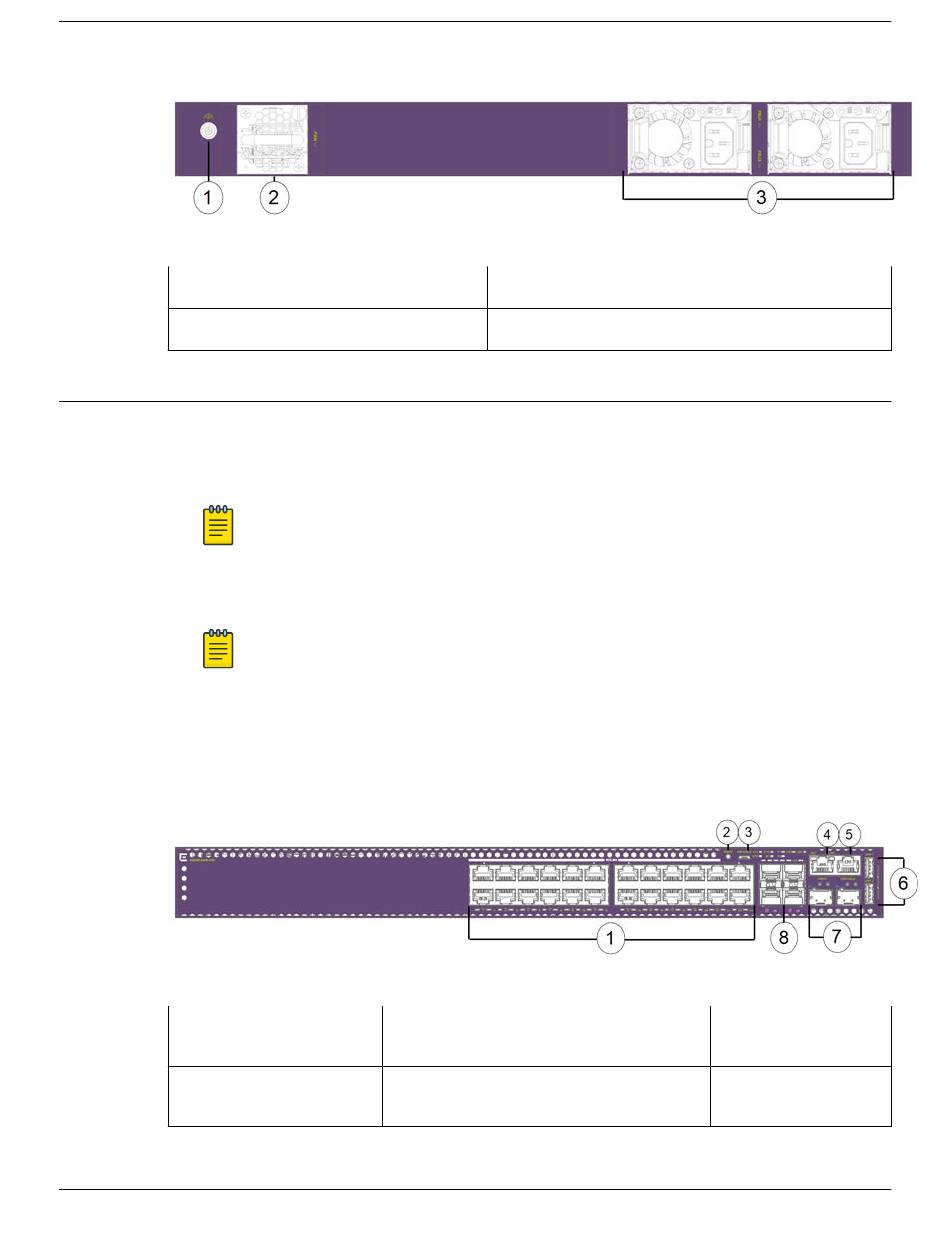

Figure 20: 5420M-24T-4YE Rear Panel
1 = Grounding lug
2 = Fan module

5420M-24W-4YE Switch Features

The front panel of the 5420M-24W-4YE switch includes:
•
24 10/100/1000BASE-T full/half duplex (autosensing) MACsec capable ports with 802.3bt Type 4
PoE (90W)
•
4 1/10/25Gb SFP28 MACsec capable uplink ports (unpopulated)
•
2 Stacking/SFP-DD ports
•
1 Serial console port (RJ-45)
•
1 10/100/1000BASE-T out-of-band management port
•
2 USB Type-A ports for management or external flash
•
1 USB Micro-B console port
Figure 21: 5420M-24W-4YE Front Panel
1 = 10/100/1000BASE-T ports 4 = 10/100/1000BASE-T out-of-band
2 = Mode button
Note
Half-duplex is not supported on these ports when operating at 1Gbps.
Note
These ports can operate either as stacking ports, or as 10G Ethernet ports with SFP+
optics using the disable stacking-support command.
management port
5 = RJ-45 serial console port
ExtremeSwitching 5420 Series Hardware Installation Guide
5420M-24W-4YE Switch Features
3 = Power supply slots
7 = SFP-DD stacking
ports
8 = 1/10/25G SFP28
ports
