Cardinal Detecto C Series Operation Manual page 29

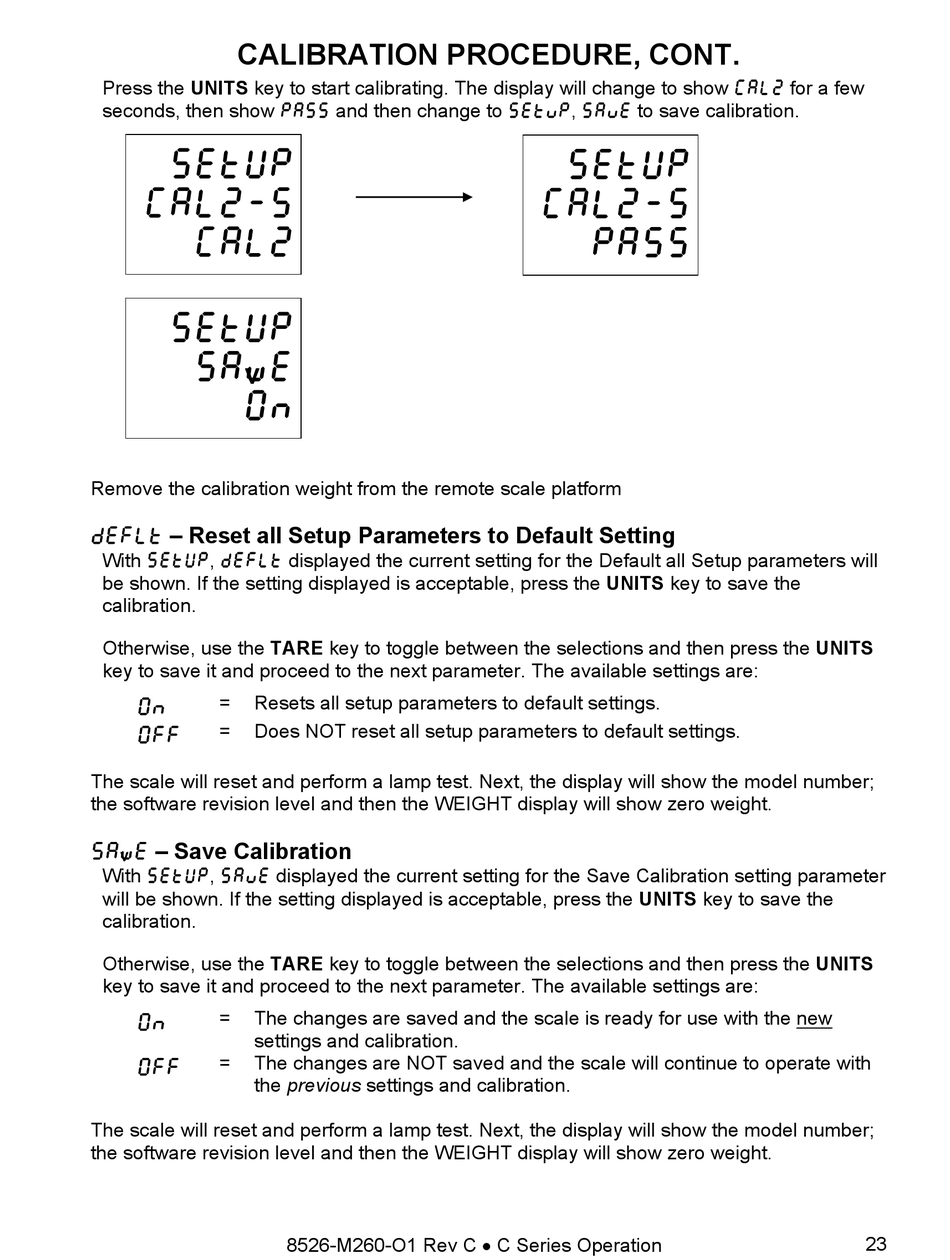

CALIBRATION PROCEDURE, CONT.
Press the UNITS key to start calibrating. The display will change to show CAL2 for a few
seconds, then show PASS and then change to SETuP, SAuE to save calibration.
SETUP
CAL2-s
Cal2
SETUP
s aue
v
On
Remove the calibration weight from the remote scale platform
deflt – Reset all Setup Parameters to Default Setting
With SETUP, deflt displayed the current setting for the Default all Setup parameters will
be shown. If the setting displayed is acceptable, press the UNITS key to save the
calibration.
Otherwise, use the TARE key to toggle between the selections and then press the UNITS
key to save it and proceed to the next parameter. The available settings are:
= Resets all setup parameters to default settings.
On
= Does NOT reset all setup parameters to default settings.
OFF
The scale will reset and perform a lamp test. Next, the display will show the model number;
the software revision level and then the WEIGHT display will show zero weight.
sauE – Save Calibration
v
With SETUP, SAuE displayed the current setting for the Save Calibration setting parameter
will be shown. If the setting displayed is acceptable, press the UNITS key to save the
calibration.
Otherwise, use the TARE key to toggle between the selections and then press the UNITS
key to save it and proceed to the next parameter. The available settings are:
= The changes are saved and the scale is ready for use with the new
On
settings and calibration.
= The changes are NOT saved and the scale will continue to operate with
OFF
the previous settings and calibration.
The scale will reset and perform a lamp test. Next, the display will show the model number;
the software revision level and then the WEIGHT display will show zero weight.
8526-M260-O1 Rev C  C Series Operation
SETUP
CAL2-s
pass
23
