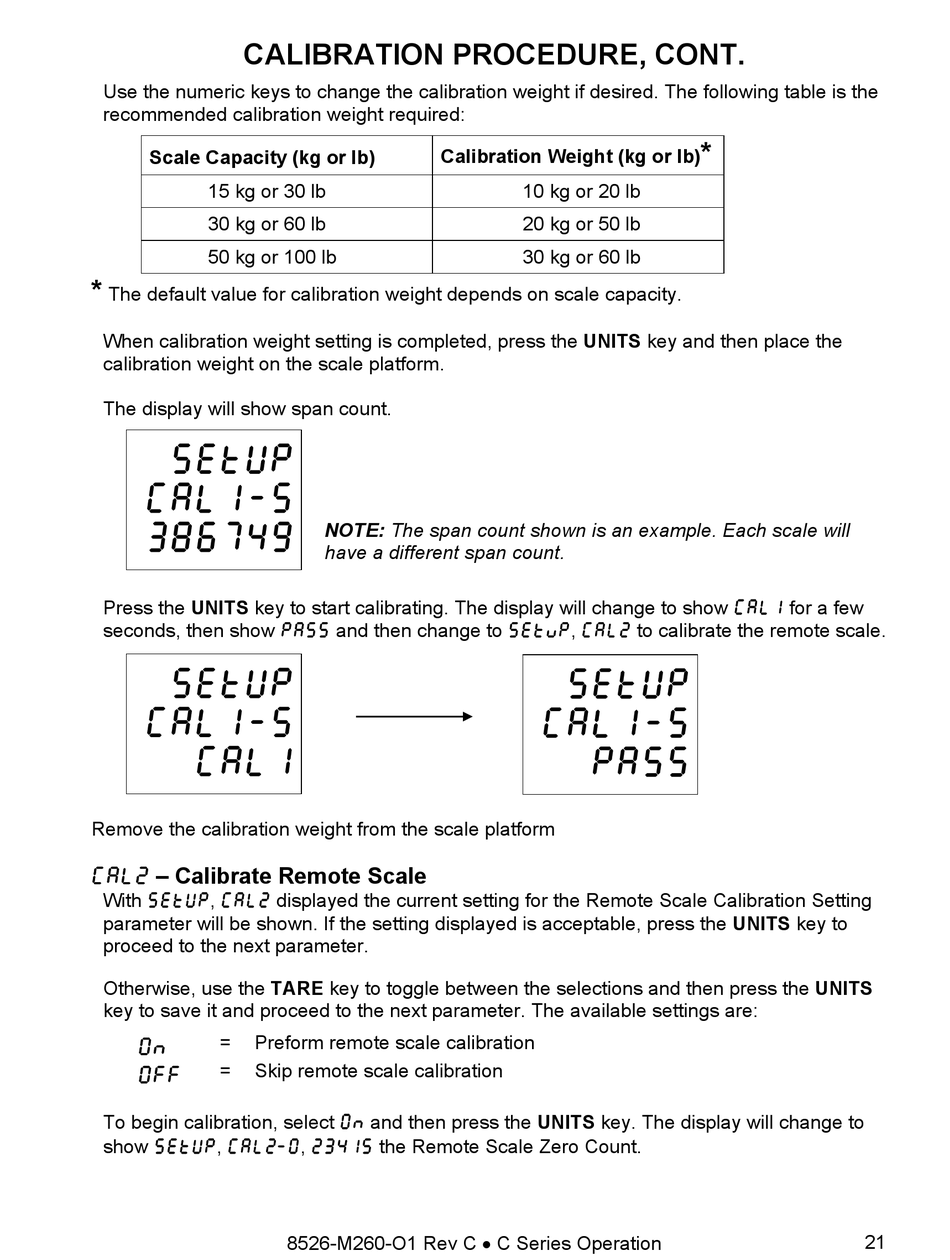

CALIBRATION PROCEDURE, CONT.
Use the numeric keys to change the calibration weight if desired. The following table is the
recommended calibration weight required:
Scale Capacity (kg or lb)
15 kg or 30 lb
30 kg or 60 lb
50 kg or 100 lb
*
The default value for calibration weight depends on scale capacity.
When calibration weight setting is completed, press the UNITS key and then place the
calibration weight on the scale platform.
The display will show span count.
SETUP
CAL1-S
386749
Press the UNITS key to start calibrating. The display will change to show CAL1 for a few
seconds, then show PASS and then change to SETuP, CAL2 to calibrate the remote scale.
SETUP
CAL1-s
Cal1
Remove the calibration weight from the scale platform
CAL2 – Calibrate Remote Scale
With SETUP, CAL2 displayed the current setting for the Remote Scale Calibration Setting
parameter will be shown. If the setting displayed is acceptable, press the UNITS key to
proceed to the next parameter.
Otherwise, use the TARE key to toggle between the selections and then press the UNITS
key to save it and proceed to the next parameter. The available settings are:
= Preform remote scale calibration
On
= Skip remote scale calibration
OFF
To begin calibration, select On and then press the UNITS key. The display will change to
show SETUP, CAL20, 23415 the Remote Scale Zero Count.
Calibration Weight (kg or lb)
NOTE: The span count shown is an example. Each scale will
have a different span count.
8526-M260-O1 Rev C  C Series Operation
*
10 kg or 20 lb
20 kg or 50 lb
30 kg or 60 lb
SETUP
CAL1-s
pass
