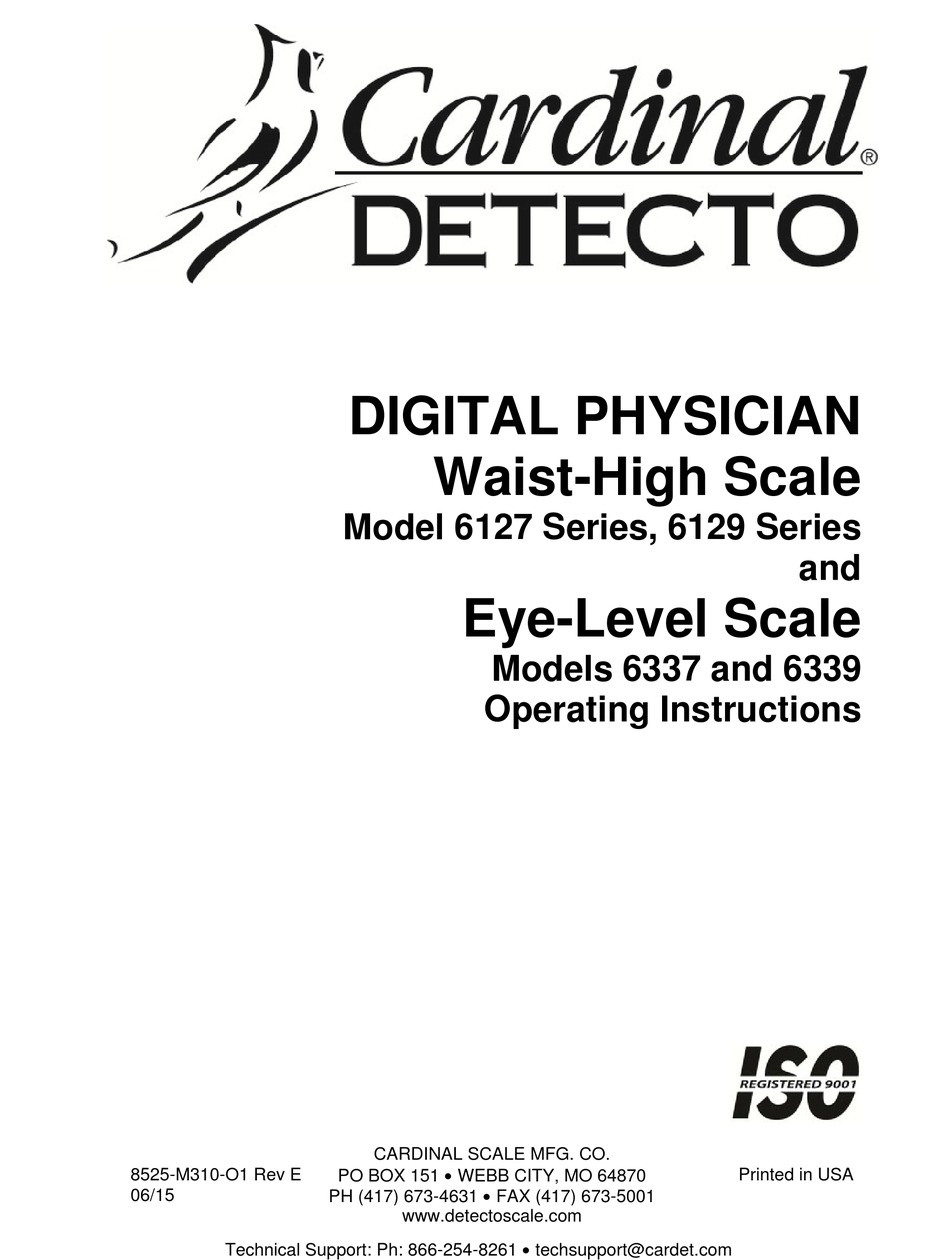

DIGITAL PHYSICIAN
Waist-High Scale
Model 6127 Series, 6129 Series
and
Eye-Level Scale
Models 6337 and 6339
Operating Instructions
CARDINAL SCALE MFG. CO.
PO BOX 151 WEBB CITY, MO 64870
8525-M310-O1 Rev E
Printed in USA
PH (417) 673-4631 FAX (417) 673-5001
06/15
www.detectoscale.com
Technical Support: Ph: 866-254-8261 techsupport@cardet.com
8525-M310-O1 Rev E 612X Series and 633X Series
1
Advertisement
Table of Contents
Related Manuals for Cardinal Detecto 6127 Series
Summary of Contents for Cardinal Detecto 6127 Series
- Page 1 Waist-High Scale Model 6127 Series, 6129 Series Eye-Level Scale Models 6337 and 6339 Operating Instructions CARDINAL SCALE MFG. CO. PO BOX 151 WEBB CITY, MO 64870 8525-M310-O1 Rev E Printed in USA PH (417) 673-4631 FAX (417) 673-5001 06/15 www.detectoscale.com...
- Page 2 8525-M310-O1 Rev E 612X Series and 633X Series...
-
Page 3: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This equipment generates uses and can radiate radio frequency and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. - Page 4 This page intentionally left blank. 8525-M310-O1 Rev E 612X Series and 633X Series 4 II...
-
Page 5: Specifications
6 “AA” size Alkaline, Ni-Cad or NiMH batteries (not included) OR an optional 100 to 240 VAC 50/60Hz 12 VDC 1A wall plug-in UL/CSA listed AC power adapter (Cardinal part number 6800-1045). Keyboard: Membrane type with 5 keys and 4 directional arrows... -
Page 6: Unpacking Instructions
UNPACKING INSTRUCTIONS Remove scale from carton by lifting up with equal force from column and platform base. Check for any damage incurred in shipping. If scale has been damaged, place a claim with the carrier. Use the original carton and shipping material to return the scale. ... - Page 7 ASSEMBLY INSTRUCTIONS, CONT. Grommet Load Cell Cable Figure No. 1 Figure No. 3 Column Raise Draft Push Draft Column Lever Bracket Opening Figure No. 4 #10-32 Truss Head Screw Indicator Bracket Lock Washer Figure No. 2 8525-M310-O1 Rev E 612X Series and 633X Series...
-
Page 8: Operation
OPERATION ALWAYS assist the patient in stepping on and off the scale platform to ensure they do not fall. NEVER leave a patient unattended while they are on the scale platform. Failure to maintain control of the patient at all times can result in serious injury to you and/or the patient. - Page 9 OPERATION, CONT. To Weigh and Calculate BMI 1. Press ON/OFF key to turn on indicator. 2. Press ZERO key to zero weight display. The ZERO and lb or kg annunciator will turn on to show that scale is ready for use. 3.
-
Page 10: Height Rod Instructions
HEIGHT ROD INSTRUCTIONS (Waist-High Models) Height Rod Hole Location Please check the Height Rod hole 2in (51mm) locations before installing the Height Rod. Some models may require holes to be drilled. Please follow the measurements for drilling holes if necessary. ... - Page 11 HEIGHT ROD INSTRUCTIONS, CONT. (Waist-High Models) 3. Place the large end of the slotted holes in the height rod brackets over the four hex head screws on the back of the column. Height Rod Bracket 4. Pull down to set the screws in the small end of the slotted hole and secure the bracket to the column.
- Page 12 HEIGHT ROD INSTRUCTIONS, CONT. (Waist-High Models) Operation 1. Before patient steps onto scale platform, spoon should be rotated to horizontal position, and raised well above patient's apparent height. 2. Patient may now step onto scale platform. Spoon should be held horizontal and above patient's head.
- Page 13 HEIGHT ROD INSTRUCTIONS, CONT. (Eye-Level Models) Height Rod Installation 1. Remove cardboard insert from height rod. 2. If not already installed, insert the two hex head screws from the hardware pack into holes in front of column and tighten them with included wrench until hex heads are 1/8" from column.
- Page 14 HEIGHT ROD INSTRUCTIONS, CONT. (Eye-Level Models) 1. Before the person steps onto the scale platform, the spoon should be rotated to the horizontal position, and raised well above the person’s apparent height. 2. The person may now step onto the scale platform. The spoon should be held horizontal and above the person’s head.
-
Page 15: Error And Status Displays
ERROR AND STATUS DISPLAYS Display Meaning General error, invalid keypad entry was attempted. -Err- -OF- Attempting to display a negative number greater than –9,999 or a positive number greater than 99,999. -trL- Indicates an attempt to zero a weight outside scale zero range. Motion is present when indicator is attempting to perform one of the -UnS- following operations: Power Up Zero or Zero Weight Display. -
Page 16: Parts Identification
PARTS IDENTIFICATION FINAL ASSEMBLY ITEM PART NUMBER DESCRIPTION 3P1201X-1 BASE ASSEMBLY 430XG3R800 COLUMN ASSEMBLY FOR 6127(KG), 6129(KG) 0044-C180-1A COLUMN ASSEMBLY FOR 6337, 6339 709GR1206 LOAD CELL ASSY 0033-B254-08 DRAFT ROD FOR 6127(KG), 6129(KG) 0033-B256-08 DRAFT ROD FOR 6337, 6339 3P8068 PLATFORM COVER 63K1038 BASE LEG... -
Page 17: Base Assembly
PARTS IDENTIFICATION, CONT. BASE ASSEMBLY ITEM PART NUMBER DESCRIPTION 3P2011X PLATFORM WELDMENT 3P2087 PLATFORM LOAD BEARING 3P1001X BASE WELDMENT 3P60 CHECK PLATE 6021-0985 HEX WASHER HD SCW #10 X 1/2 63K1038 BASE LEG 2U58 UNION CENTER HANGER 3P8003X SHORT LEVER ASSEMBLY 3P8059 UNION HANGER 3P122... -
Page 18: Statement Of Limited Warranty
STATEMENT OF LIMITED WARRANTY Detecto Scale warrants its equipment to be free from defects in material and workmanship as follows: Detecto warrants to the original purchaser only that it will repair or replace any part of equipment which is defective in material or workmanship for a period of two (2) years from date of shipment. - Page 19 STATEMENT OF LIMITED WARRANTY Conditions Which Void Limited Warranty This warranty shall not apply to equipment which: A.) Has been tampered with, defaced, mishandled or has had repairs and modifications not authorized by Detecto. B.) Has had serial number altered, defaced, or removed. C.) Has not been grounded according to Detecto’s recommended procedure.
- Page 20 8525-M310-O1 Rev E 612X Series and 633X Series...
