Cardinal Detecto Operation Manual

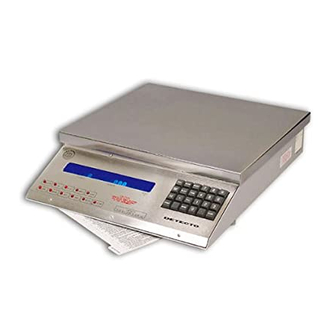

25 pound capacity counter type electronic scale
Hide thumbs Also See for Detecto:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Cardinal
®
OPERATION MANUAL
MSB-25 Series
25 Pound Capacity
Counter Type
Electronic Scale
8540-M222-O1 Rev C
© Cardinal Scale Manufacturing Company
Printed In U.S.A.
07/10
P.O. Box 151, Webb City, MO 64870
PH: (417) 673-4631

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Detecto and is the answer not in the manual?

Questions and answers

Related Manuals for Cardinal Detecto

Summary of Contents for Cardinal Detecto

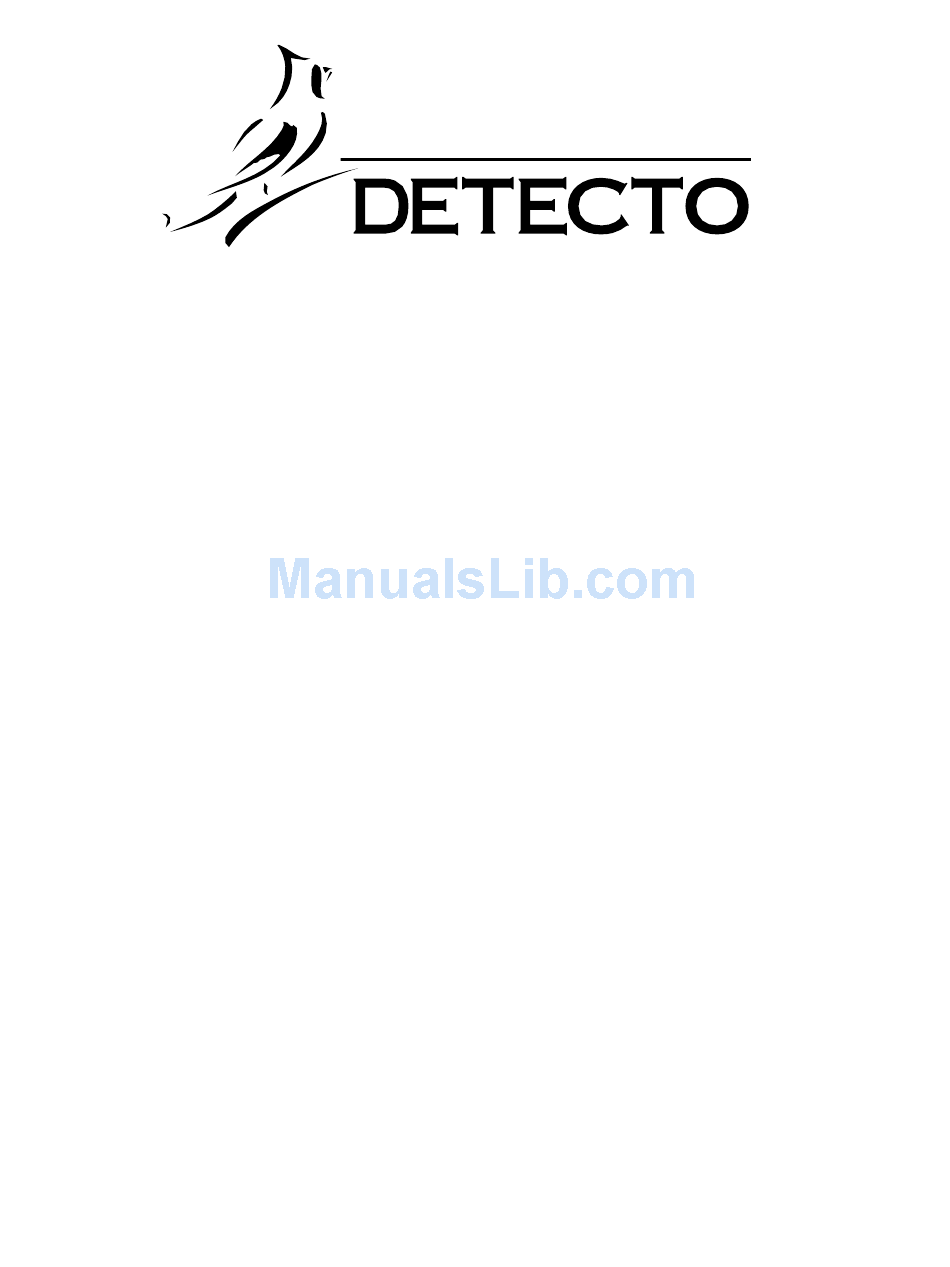

  • Page 1 Cardinal ® OPERATION MANUAL MSB-25 Series 25 Pound Capacity Counter Type Electronic Scale 8540-M222-O1 Rev C © Cardinal Scale Manufacturing Company Printed In U.S.A. 07/10 P.O. Box 151, Webb City, MO 64870 PH: (417) 673-4631...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PART 1 Description Introduction Purpose Description of scale Principles of operation Precautions PART 2 Specifications PART 3 Unpacking, Installation and Preparation for use Unpacking Placement Level adjustment Power supply connection PART 4 Operation Key functions LED indicator functions Operation: weighing, sampling and counting Test mode PART 5...

  • Page 4: Introduction

    6. Direct output of data to a printer or other device. 1.3 Description of scale The Detecto MSB-25 is a ruggedized, fully-electronic digital weight indicator employing a single-point load cell, stainless steel weighing platform, digital electronics, full-travel keypad, LED annunciators to indicate scale mode, twenty character alphanumeric dot matrix display with 7/16 inch high characters, and serial interface.

  • Page 5: Part 2 Specifications

    2.0 SPECIFICATIONS Power requirements: 110/120 VAC, 60 Hz Count capacity: 999,999 Weight resolution: 1 part in 8,000 Computing resolution: 1 part in 16 x 10 with floating decimal Dimensions: 5" H x 17" W x 21" D Weight: 28 lb Operating temperature: 32°...

  • Page 6: Part 3 Unpacking, Installation And Preparation For Use

    3.0 UNPACKING, INSTALLATION AND PREPARATION FOR USE 3.1 UNPACKING Inspect the scale for any signs of damage due to shipping such as loose screws or exterior dents and scratches on the covers and case. Keep carton and packing for return shipment of scale if necessary. It is the responsibility of the purchaser to file all claims for any damages or loss in transit incurred, unless this responsibility has been accepted by the Seller in its proposal.

  • Page 7: Power Supply Connection

    3.4 POWER SUPPLY CONNECTION 3.4.1 Plug power cord into a grounded, 3-pronged wall receptacle that supplies 115 VAC power. If an extension cord must be used, it should be a 3-wire, grounded type. 3.4.2 If a 2-pronged wall receptacle is encountered, it is the responsibility of the customer to contact a qualified electrician to replace the 2-pronged receptacle with a properly grounded 3-pronged wall receptacle or to have a grounding adapter properly installed.

  • Page 8: Part 4 Operation

    4.0 OPERATION CAUTION!!! - Dropping packages weighing more than 3 pounds onto the scale platform can cause permanent damage to the load cell. 4.1 KEY FUNCTIONS This section describes the use of each of the keys on the keypad of the MSB-25 Scale. The TARE key is used to enter a known tare (container) weight via the numeric keypad.
  • Page 9 KEY FUNCTIONS, Cont. The SAMPLE key is used to weigh a specific number of pieces to be added to or removed from the scale in preparation for a new counting operation. The SAMPLE key is also used to change the sample quantity. Pressing the SAMPLE key repeatedly will cause the sample size to step in multiples of 10 from 10 to 250.
  • Page 10 KEY FUNCTIONS, Cont. The CLEAR key is used to erase an erroneous entry, and return the cursor CLEAR back to the first character in the entry field. The lb key is used to select the mode whereby weights are to be displayed in decimal pounds format, pp.ppp pounds.

  • Page 11: Led Indicator Functions

    4.2 LED INDICATOR FUNCTIONS The following describes the functions of each of the LED indicators and associated legends contained on the face of the instrument display. MOTION lb - oz SAMPLE COUNT ZERO GROSS TARE WT/PC PC/WT The NET indicator shows the weight displayed is the net weight. Net weight is determined by subtracting the stored tare weight from the gross or scale weight.
  • Page 12 INDICATOR FUNCTIONS, Cont. COUNT The COUNT indicator shows that the display is in the count mode, and that the value shown is the count quantity of either the pieces removed from the scale platform (reverse counting) or the number of pieces added to the scale platform (normal counting). The count value is determined by dividing the net weight by the average piece weight.

  • Page 13: Operation: Weighing, Sampling And Counting

    4.3 OPERATION: WEIGHING, SAMPLING AND COUNTING 4.3.1 STANDARD SAMPLING AND COUNTING 1. With the scale in any mode... 2. Press the SAMPLE key and place on scale the number of pieces indicated on display. (A different sample size may be selected by following procedure below). 3.

  • Page 14: Test Mode

    4.3 OPERATION WEIGHING,SAMPLING AND COUNTING , Cont. 4.3.6 TO ZERO THE GROSS WEIGHT 1. With the display in weight or count mode... 2. Press the ZERO key. The tare weight will be set to zero and a new gross weight center of zero point will be established.

  • Page 15: Part 5 Calibration

    5.0 CALIBRATION The following describes the Calibration of the MSB-25 scale in the event that the scale should need recalibration. A qualified technician should perform this function to maintain the instrument’s high degree of accuracy. 1. Unplug the scale from the power outlet. This unit applies power to the load cell and circuits even when the power switch is OFF.
  • Page 16 5.1 CALIBRATION SEAL CALIBRATION SEAL (PLASTIC COVER)

  • Page 17: Serial Interface

    6.0 SERIAL INTERFACE A serial data communication interface is provided on the MSB-25 scale. This interface serves as the means to receive weight data from a remote scale, to respond to enquiry from auxiliary computer or to print displayed data with descriptive identifiers on a serial printer such as an Epson MX100 or compatible.

  • Page 18: Care And Maintenance

    7.0 CARE AND MAINTENANCE 1. DO NOT subject the commodity tray to sudden shocks. 2. DO NOT submerge the scale in water or spray water directly on the scale. The scale may be cleaned using a damp soft cloth and mild detergent.
  • Page 19 PARTS DIAGRAM...

  • Page 20: Exploded View

    8.2 PARTS LIST This section lists parts which are interchangeable by field or factory service personnel. Refer to the MSB-25 exploded view in section 8.1 for the location of each item. Unless otherwise noted, the quantity of each item is 1. Item Description Part...
