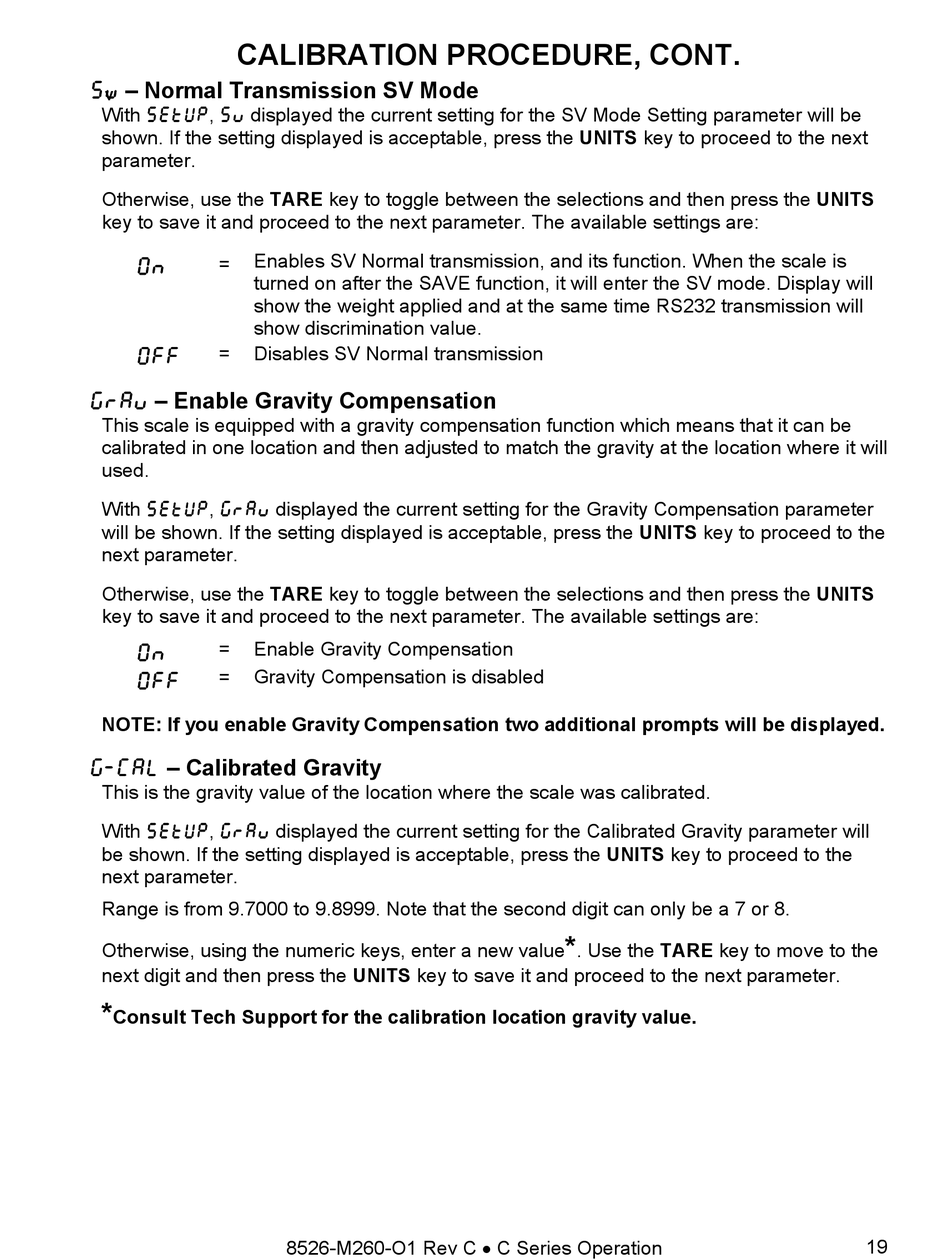

CALIBRATION PROCEDURE, CONT.
su – Normal Transmission SV Mode
v
With SETUP, Su displayed the current setting for the SV Mode Setting parameter will be
shown. If the setting displayed is acceptable, press the UNITS key to proceed to the next
parameter.
Otherwise, use the TARE key to toggle between the selections and then press the UNITS
key to save it and proceed to the next parameter. The available settings are:
Enables SV Normal transmission, and its function. When the scale is
=
On
turned on after the SAVE function, it will enter the SV mode. Display will
show the weight applied and at the same time RS232 transmission will
show discrimination value.
= Disables SV Normal transmission
OFF
GrAu – Enable Gravity Compensation
This scale is equipped with a gravity compensation function which means that it can be
calibrated in one location and then adjusted to match the gravity at the location where it will
used.
With SETUP, GrAu displayed the current setting for the Gravity Compensation parameter
will be shown. If the setting displayed is acceptable, press the UNITS key to proceed to the
next parameter.
Otherwise, use the TARE key to toggle between the selections and then press the UNITS
key to save it and proceed to the next parameter. The available settings are:
= Enable Gravity Compensation
On
= Gravity Compensation is disabled
OFF
NOTE: If you enable Gravity Compensation two additional prompts will be displayed.
GCAL – Calibrated Gravity
This is the gravity value of the location where the scale was calibrated.
With SETUP, GrAu displayed the current setting for the Calibrated Gravity parameter will
be shown. If the setting displayed is acceptable, press the UNITS key to proceed to the
next parameter.
Range is from 9.7000 to 9.8999. Note that the second digit can only be a 7 or 8.
Otherwise, using the numeric keys, enter a new value
next digit and then press the UNITS key to save it and proceed to the next parameter.
*
Consult Tech Support for the calibration location gravity value.
8526-M260-O1 Rev C  C Series Operation
*
. Use the TARE key to move to the
