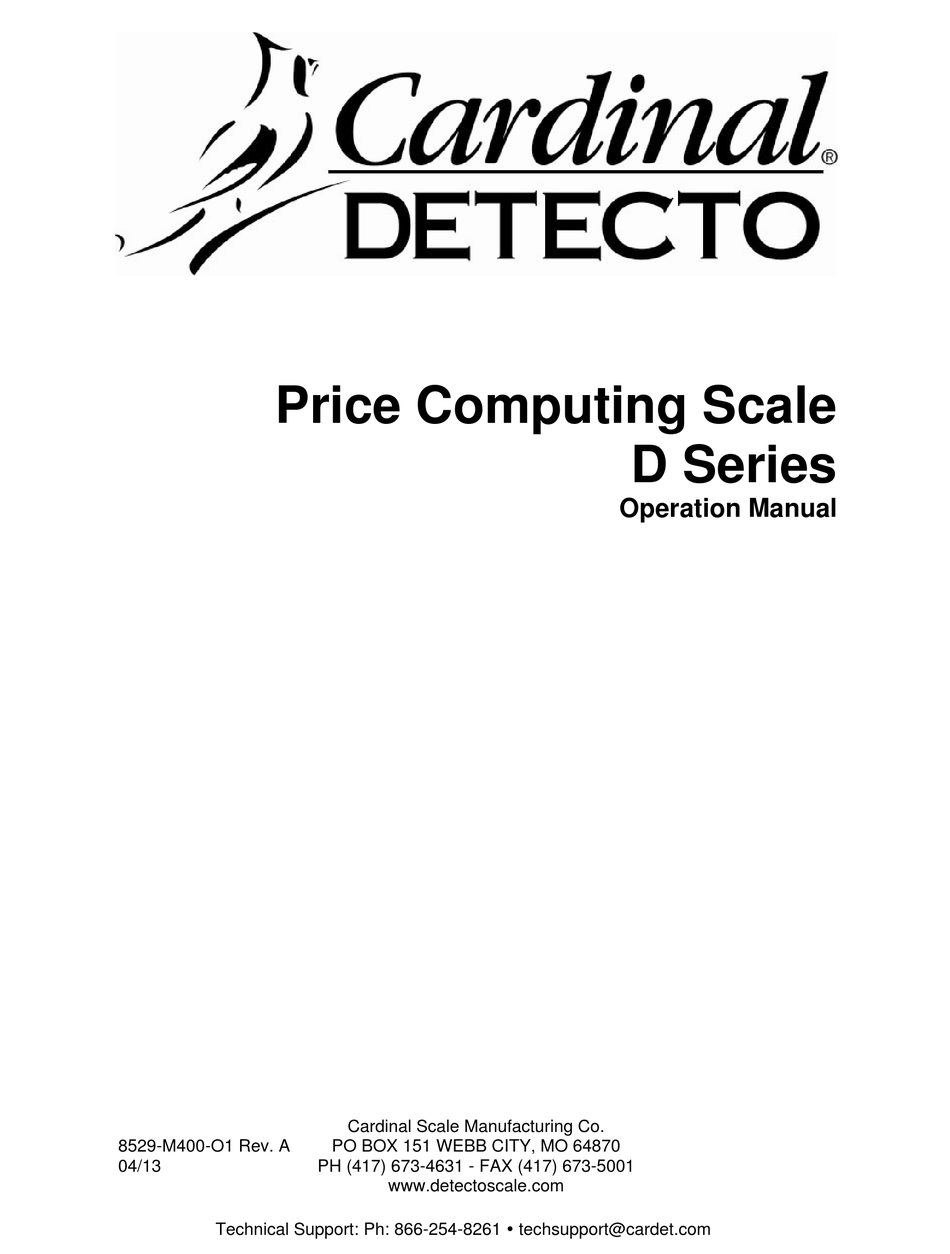

- Page 1 Price Computing Scale D Series Operation Manual Cardinal Scale Manufacturing Co. 8529-M400-O1 Rev. A PO BOX 151 WEBB CITY, MO 64870 04/13 PH (417) 673-4631 - FAX (417) 673-5001 www.detectoscale.com Technical Support: Ph: 866-254-8261 techsupport@cardet.com Page 1...
- Page 2 Page 2...

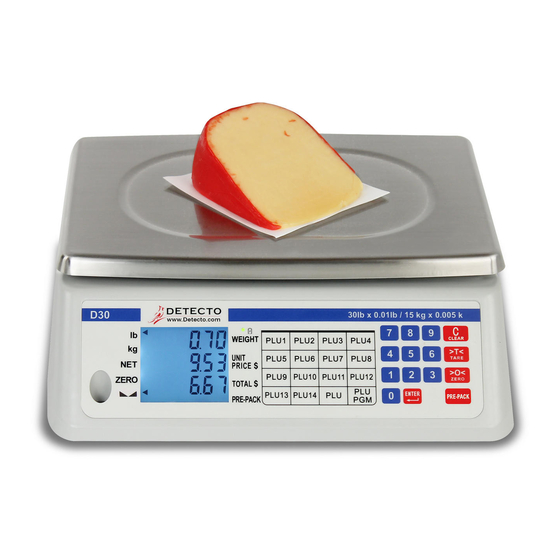

- Page 3 INTRODUCTION Thank you for purchasing our Detecto D Series Price Computing Scale. Your scale has been designed to operate from 115 VAC 50/60 Hz or with the included rechargeable battery pack. This manual will guide you through setup and operation of your scale. Please read it thoroughly before attempting to operate this scale and keep it handy for future reference.
-
Page 4: Table Of Contents
TABLE OF CONTENTS INSTALLATION 1 Unpacking 1 Placement ... -
Page 5: Installation
INSTALLATION Unpacking Before beginning installation of your D Series Price Computing Scale, make certain the instrument has been received in good condition. Carefully remove the instrument from the shipping carton and inspect it for any evidence of damage (such as exterior dents or scratches) that may have taken place during shipment. - Page 6 Front - Operator Keypad and Display Rear - Customer Display ANNUNCIATORS Annunciators indicate the active mode or functions of the scale. The meaning of each annunciator is described below. ZERO The ZERO annunciator is located to the left of the display and is selected to indicate that the gross scale weight is zero.
-
Page 7: Key Functions
KEY FUNCTIONS This section describes the use of each of the keys on the D Series Price Computing Scale. It will be helpful to refer to the scale keyboard or the figure above when reading this section. Set the weight display to zero and turn on the ZERO annunciator. -
Page 8: Operation
OPERATION Power Switch The Power Switch is located on the bottom right side panel towards the front of the scale. Place the power switch in the on position. The scale will perform a brief display test illuminating all display segments and annunciator LED's to allow the operator to make a visual verification that the display is operational. -
Page 9: Price Look Up
Price Look Up (PLU) PLU Programming Programming PLU without a Tare Weight 1. Press the PLU PGM key 2. Press the PLU key (PLU1 – PLU14) or enter the PLU number (15-99) to programmed. 3. Press ENTER 4. Enter the UNIT PRICE and press ENTER twice. Programming PLU with a Tare Weight 1. -
Page 10: Scale Settings
Scale Settings Access User setup with scale off, press and hold the PRE-PACK key while switching the scale on. Scale will display SETUP. Use the following keys to navigate settings shown below. PRE-PACK Accept the displayed setting and to proceed to next step TARE Toggles available settings for the current step ZERO... -
Page 11: Error And Status Displays
Keypad error BEFORE YOU CALL FOR SERVICE Your D Series Price Computing Scale has been designed to provide you with years of trouble- free operation. In spite of this, troubles sometimes happen. Before calling for service assistance you should make some initial checks to verify that a problem does exist. The following describes several types of symptoms along with suggested remedies. - Page 12 Page 8...
